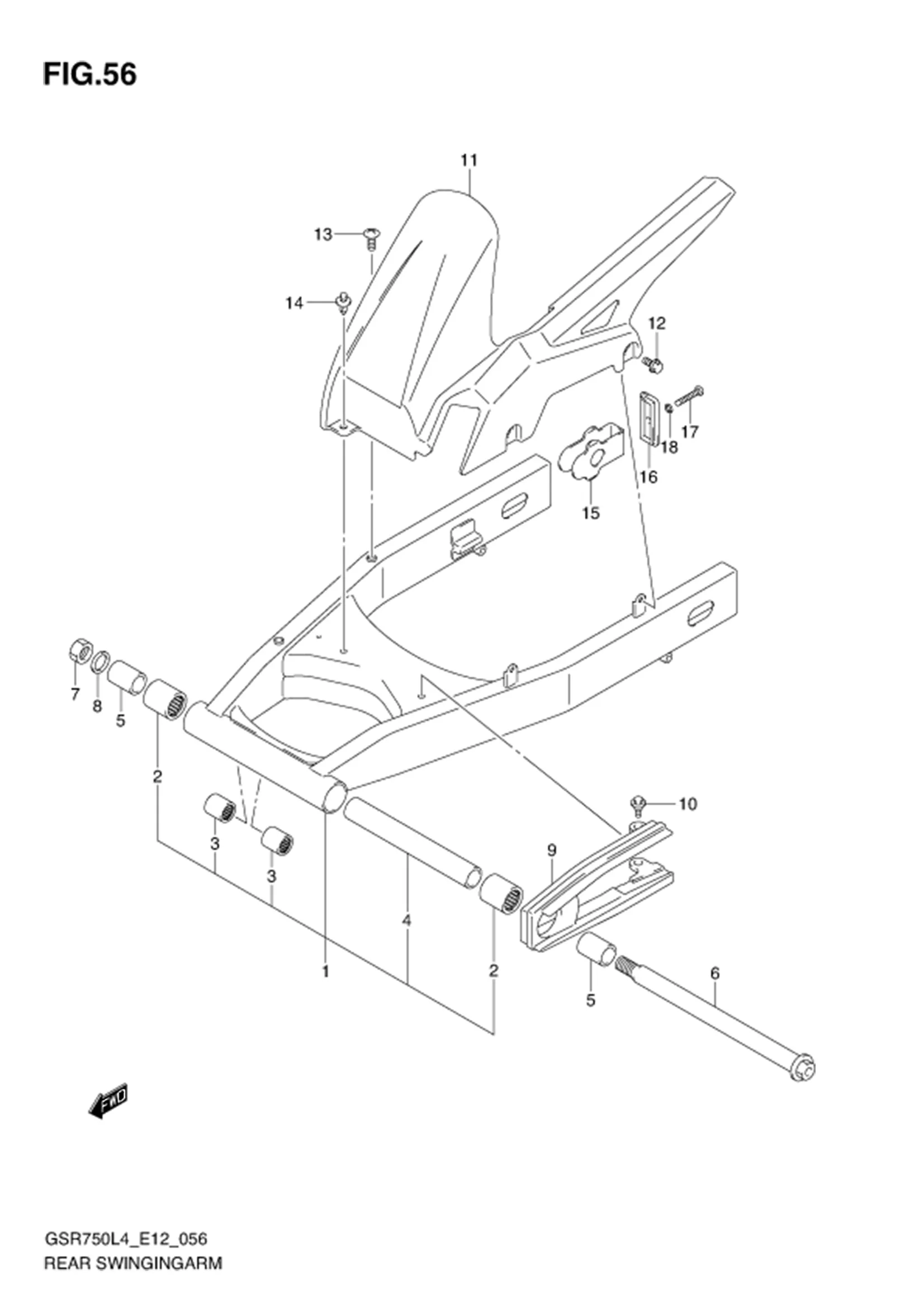

FIG.56 (1-F-6) REAR SWINGINGARM

FIG.56 (1-F-6) REAR SWINGINGARM

No	No. Part	Description	Qty	Price Per Pcs	Remarks
	09111-06072-000	BOLT (6X17.8)	2	Rp3.500
	DISCONTINUE SUB: 09164-08015-000	WASHER	2	-
	09106-08119-000	BOLT (8X50)	2	Rp28.500
	61421-08J00-000	PLATE, CHAIN ADJUSTER GUIDE	2	Rp223.500
	61410-08J10-000	ADJUSTER, CHAIN	2	Rp238.000
	09409-08308-5ES	CLIP (BLACK)	1	Rp15.000
	02142-0616A-000	SCREW	1	Rp3.000
	09111-06107-000	BOLT (6X12)	2	Rp4.000
	61310-08J00-000	CASE, CHAIN	1	Rp1.076.500
	61000-08J00-YAP	SWINGINGARM ASSY, REAR (BLACK)	1	Rp7.546.500
	61273-08J00-000	BUFFER, CHAIN TOUCH DEFENSE	1	Rp273.000
	09160-18030-000	WASHER (18.5X28X2.6)	1	Rp19.000
	09159-18007-000	NUT	1	Rp113.500
	61211-31E00-000	SHAFT, PIVOT	1	Rp673.500
	61251-21E00-000	SPACER, PIVOT	2	Rp172.500
	61282-17C00-000	?SPACER, PIVOT CENTER	1	Rp157.500
	09263-17053-000 SUB: 09263-17037-000	?BEARING (17X24X25)	2	Rp38.000
	09263-25059-000	?BEARING (25X33X35)	2	Rp255.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
