ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.320A BATTERYFIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMP (GL,GLX)FIG.336A REAR LAMPFIG.340A WIRING HARNESSFIG.348A ENGINE HARNESS BRACKET (5MT)FIG.352A ELECTRICAL CONTROLFIG.360B LOCK SET (GL,GLX)FIG.370A FRONT WINDOW WIPERFIG.374B WINDOW WASHER (GLX)FIG.376A REAR WINDOW WIPERFIG.392B TUNER (GL,GLX)

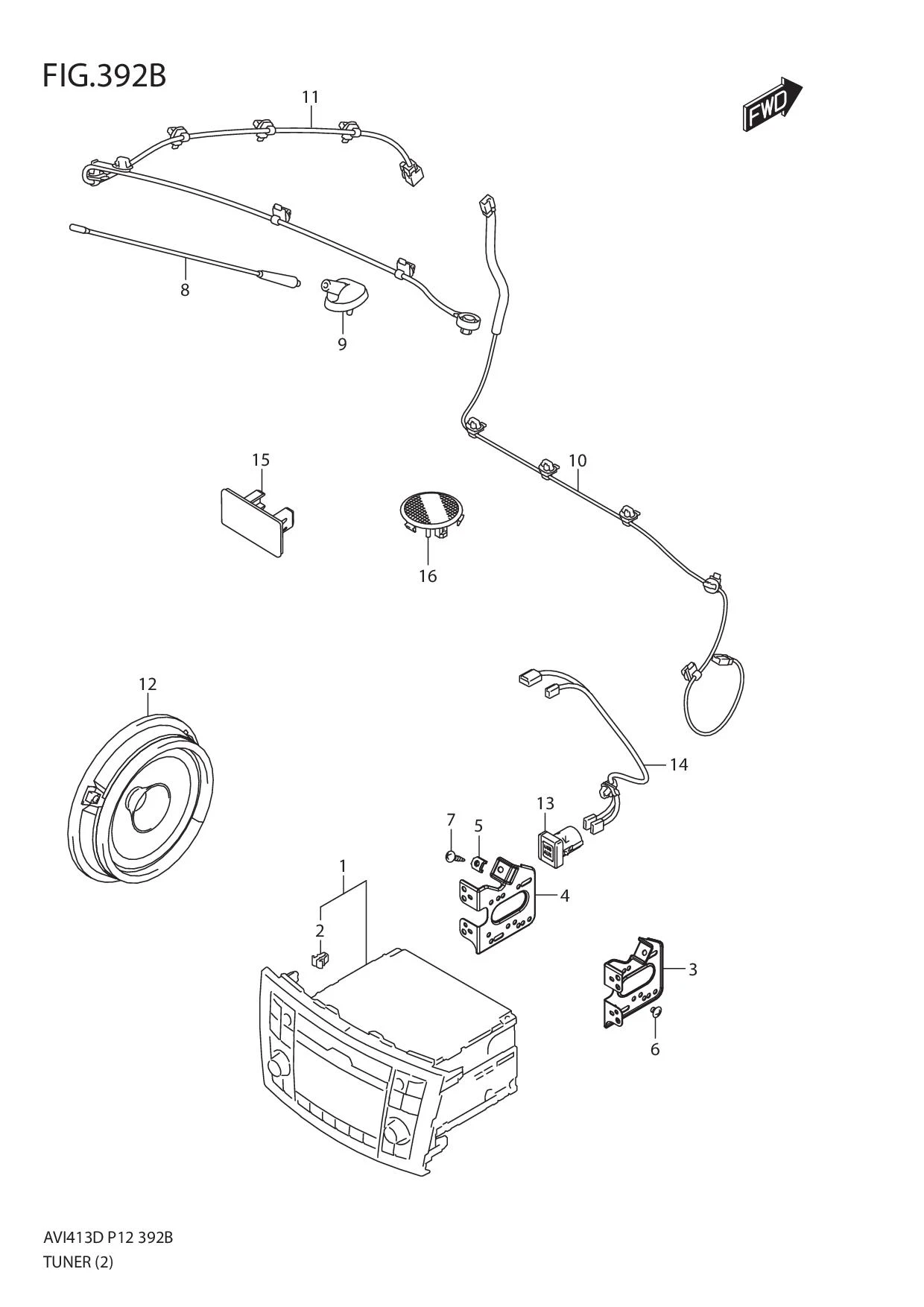

FIG.392B TUNER (GL,GLX)

FIG.392B TUNER (GL,GLX)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 39101M58RA0-JYU		 TUNER ASSY (AM/FM,CD,MP3,USB) (BROWN/BLACK) 1 - GLX
2 09409-08349-000
SUB: 09409B08342N000		 •CLIP,TUNER 4 Rp4.500
3 39321M74L00-000
SUB: 39321M74L10-000		 BRACKET,TUNER RH 1 Rp21.000
4 39322M74L10-000 BRACKET,TUNER LH 1 Rp19.000
5 09148-05045-000
SUB: 09148B05045N000		 NUT 2 Rp4.000
6 02142-0508A-000
SUB: 02142B0508AN000		 SCREW 6 Rp3.500
7 03541-0516A-000
SUB: 03541M0516A-000		 SCREW 2 Rp3.500
8 39251M68K00-000 ROD,ANTENNA 1 Rp181.000
9 39253M75J00-000 BASE,ANTENNA 1 Rp449.000
10 39270-77M00-000
SUB: 39270B77M00N000		 FEEDER,ANT I/P 1 Rp76.000
11 39271-77M00-000
SUB: 39271B77M00N000		 FEEDER,ANTENNA ROOF 1 Rp143.000
12 39102M74LA1-000
SUB: 39102M74LA0-000		 SPEAKER ASSY 4 Rp504.500
13 39105M74L10-000 SOCKET,USB 1 Rp721.000
14 39106M74L10-000 CABLE,USB 1 Rp807.000
15 39977M65M00-000 CAP,BACK CAMERA 1 Rp16.000
16 39102-77MA0-R8R
SUB: 39102B77MA0NR8R		 SPEAKER ASSY,TWEETER (BROWN) 2 Rp92.000 GLX

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
