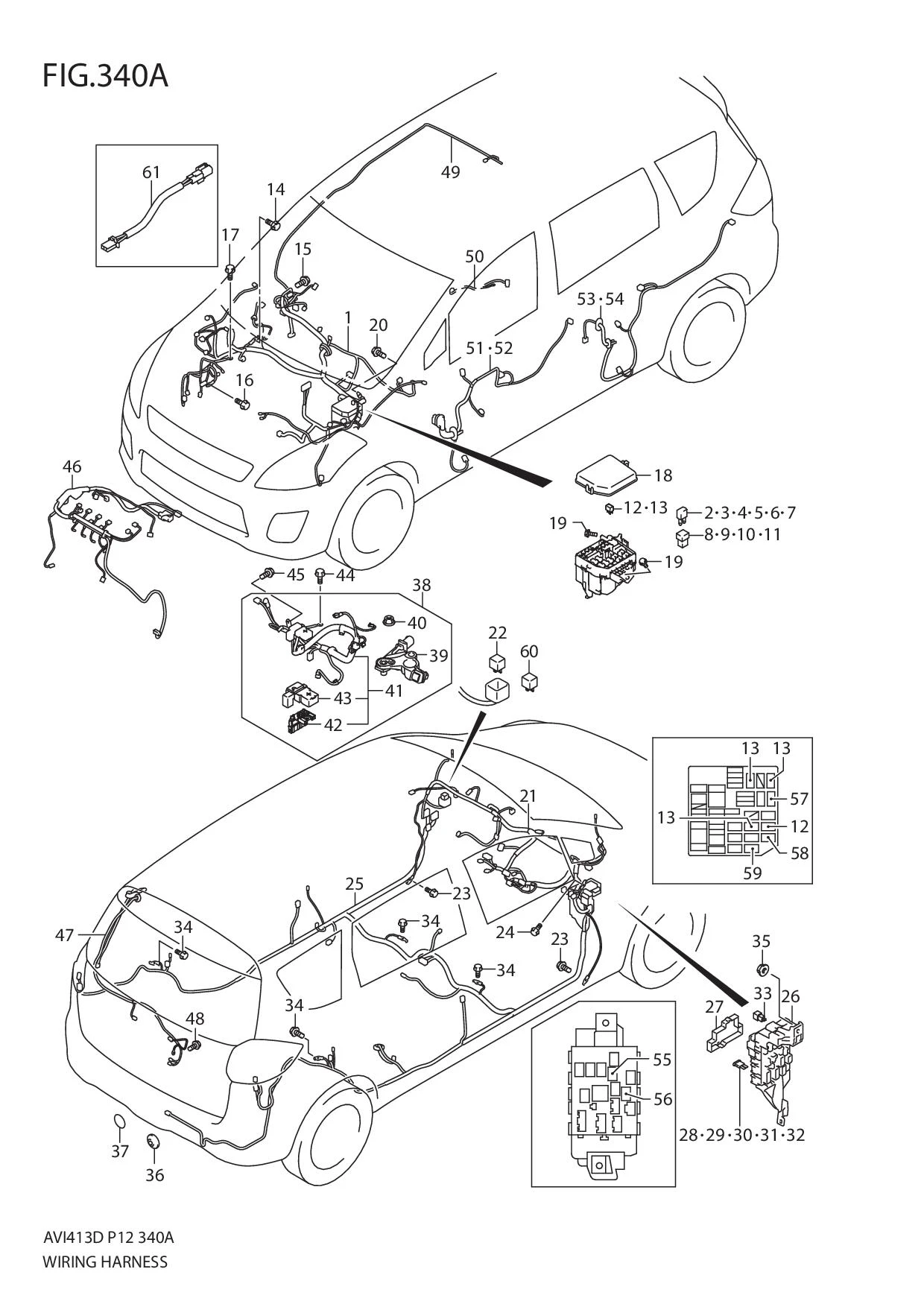

FIG.340A WIRING HARNESS

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	36610M58RK0-000	HARNESS ASSY,MAIN	1	Rp9.567.500	GLX
2	09481-07504-000	•FUSE (7.5A)	0	Rp13.000
3	09481-10504-000	•FUSE (10A)	0	Rp12.500
4	09481-15504-000	•FUSE (15A)	0	Rp13.000
5	09481-20504-000	•FUSE (20A)	0	Rp14.500
6	09481-25504-000	•FUSE (25A)	1	Rp17.500
7	09481-30504-000	•FUSE (30A)	2	Rp15.000
8	09481-30403-000	•FUSE (30A)	0	Rp41.000
9	09481-40403-000	•FUSE (40A)	0	Rp51.500
10	09481-50403-000	•FUSE (50A)	1	Rp51.000
11	09481-60403-000	•FUSE (60A)	1	Rp52.000
12-1	38860M76M00-000 SUB: 38860M79F01-000	•RELAY ASSY,STARTER	1	Rp58.500	INTERFACE MICRO
12-2	38860M76M00-000	•RELAY ASSY,STARTER	1	Rp58.500	DENSO
13-1	38860M76M00-000 SUB: 38860M79F01-000	•RELAY ASSY,RADIATOR	3	Rp58.500	INTERFACE MICRO
13-2	38860M76M00-000	•RELAY ASSY,RADIATOR	3	Rp58.500	DENSO
14	09115-06005-000	BOLT (6X16)	2	Rp14.000
15	09115-06005-000	BOLT (6X16)	1	Rp14.000
16	09115-06005-000	BOLT (6X16)	1	Rp14.000
17	01550-0612B-000	BOLT	1	Rp16.500
18	36717M58R00-000	COVER,RELAY BOX	1	Rp199.000
19	02162-0616A-000	BOLT	2	Rp3.000
20	09115-06005-000	BOLT (6X16)	1	Rp14.000
21	36620M58RK0-000	HARNESS ASSY,INSTRUMENT PANEL	1	Rp4.583.500	GLX
22	38860-77M10-000 SUB: 38860B77M10N000	•RELAY ASSY,HEATER	1	Rp71.000
23	09115-06005-000	BOLT (6X16)	2	Rp14.000
24	02162-0612A-000	BOLT	1	Rp11.000
25	36630M58RP0-000	HARNESS ASSY,FLOOR	1	-	GLX
26	36710M58R10-000	•BOX ASSY,JUNCTION	1	Rp2.493.000
27	36717M71PP0-000	••COVER,FUSE	1	Rp246.500
28	09481-07504-000	•FUSE (7.5A)	0	Rp13.000
29	09481-10504-000	•FUSE (10A)	10	Rp12.500
30	09481-15504-000	•FUSE (15A)	0	Rp13.000
31	09481-20504-000	•FUSE (20A)	6	Rp14.500
32	09481-25504-000	•FUSE (25A)	1	Rp17.500
33	09481-30403-000	•FUSE (30A)	2	Rp41.000
34	09115-06005-000	BOLT (6X16)	4	Rp14.000
35	09159-08127-000 SUB: 09159M08153-000	NUT	2	Rp11.000
36	09250M30011-000	CAP,HARNESS HOLE	1	Rp4.500
37	DISCONTINUE SUB: 67627B70000N000	SEAL,HARNESS HOLE	0	-	CUT AS REQUIRED
38	36950M79MD0-000	HARNESS SET,ENGINE	1	Rp4.656.500
39	91510M79M00-000	•SENSOR ASSY,BATTERY	1	Rp1.155.000
40	33887-71L00-000	•NUT	1	Rp23.500
41	36650M79MD0-000	•HARNESS ASSY,ENGINE	1	Rp4.830.000
42	36739M79M00-000	••FUSE,BATTERY	1	Rp689.000
43	36694M68L00-000	••COVER,BATTERY TERMINAL	1	Rp56.000
44	01550-0812A-000	BOLT	1	Rp3.500
45	01550-0812A-000	BOLT	1	Rp3.500
46	36660M58RB0-000	HARNESS ASSY,ENGINE	1	Rp5.484.000
47	36680M58R30-000	HARNESS ASSY,BACK DOOR	1	Rp624.000	GLX
48	09115-06005-000	BOLT (6X16)	1	Rp14.000
49	36820M58R40-000	WIRE,ROOF	1	Rp329.000	GLX
50	36840M60MA0-000	WIRE,FUEL	1	Rp223.000
51	36756M58R10-000	WIRE,DRIVER DOOR	1	Rp1.079.000	GL,GLX
52	36757M58R10-000	WIRE,SUB DOOR	1	Rp664.500	GL,GLX
53	36751M60M10-000	WIRE,RR DOOR RH	1	Rp526.000	GL,GLX
54	36751M60MB0-000	WIRE,RR DOOR LH	1	Rp526.000	GL,GLX
55-1	38860M76M00-000 SUB: 38860M79F01-000	RELAY ASSY,HORN	1	Rp58.500	INTERFACE MICRO
55-2	38860M76M00-000	RELAY ASSY,HORN	1	Rp58.500	DENSO
56-1	38860M76M00-000 SUB: 38860M79F01-000	RELAY ASSY,REAR DEFOGGER	1	Rp58.500	GLX INTERFACE MICRO
56-2	38860M76M00-000	RELAY ASSY,REAR DEFOGGER	1	Rp58.500	GLX DENSO
57	38860M83M00-000	RELAY ASSY,MAIN	1	Rp116.000
58-1	38860M76M00-000 SUB: 38860M79F01-000	RELAY ASSY,FUEL PUMP	1	Rp58.500	INTERFACE MICRO
58-2	38860M76M00-000	RELAY ASSY,FUEL PUMP	1	Rp58.500	DENSO
59	38860M76M00-000 SUB: 38860M79F01-000	RELAY ASSY,FRONT FOG LAMP	1	Rp58.500	GL,GLX INTERFACE MICRO
60	38860-77M10-000 SUB: 38860B77M10N000	RELAY ASSY,BLOWER SWITCH	1	Rp71.000
61	36691-68L00-000	WIRE,PASSENGER AIR BAG	1	Rp240.500	W_PAS_AB
