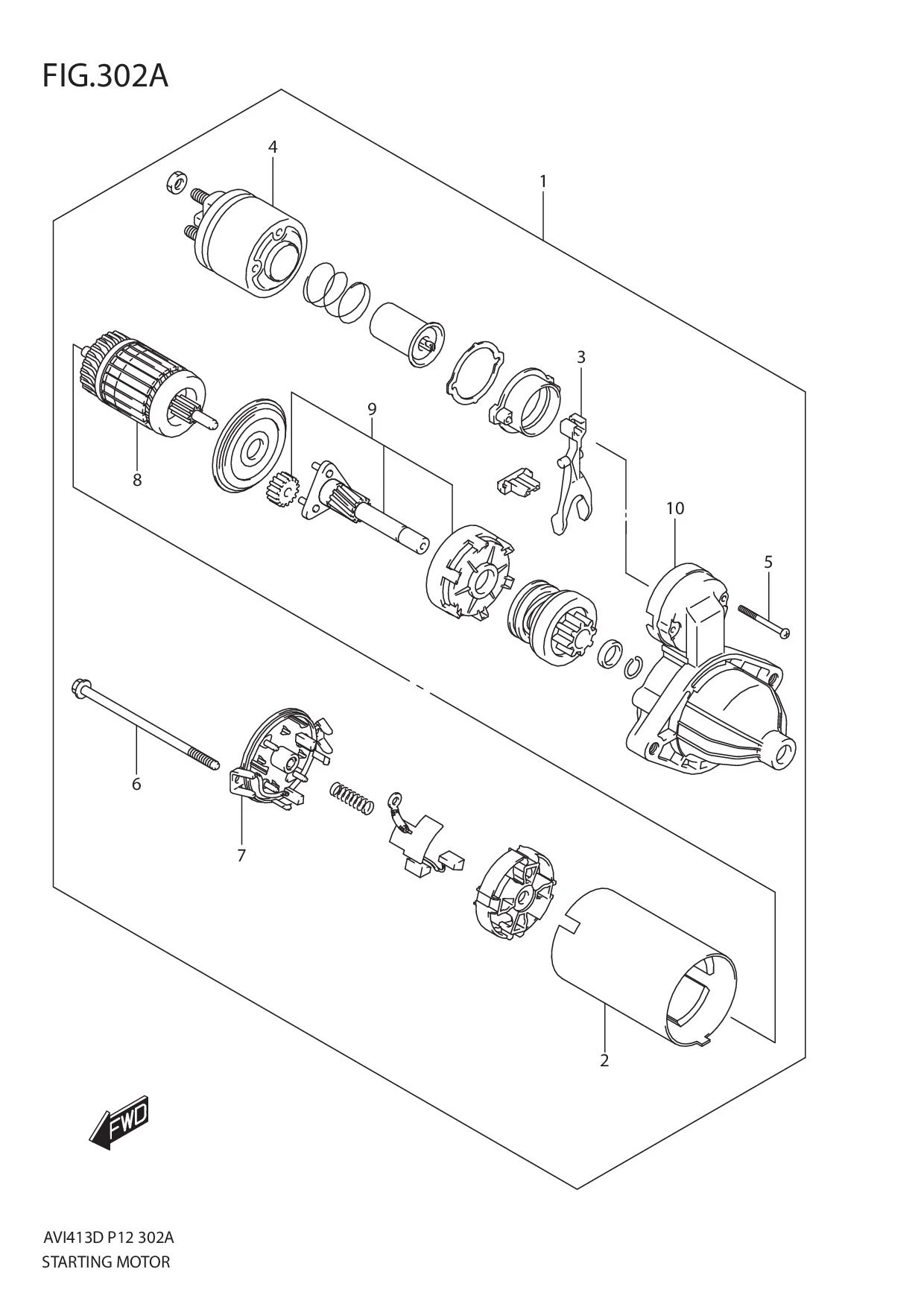

FIG.302A STARTING MOTOR

FIG.302A STARTING MOTOR

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	31100M86J30-000 SUB: 31100M86J12-000	MOTOR ASSY,STARTING	1	Rp2.514.000
2	31110M86J10-000	•YOKE ASSY	1	Rp256.500
3	31191M86J10-000	•FORK LEVER	1	Rp10.500
4	31220M86J12-000	•SOLENOID ASSY	1	Rp643.500
5	31262M86J10-000	•BOLT,SOLENOID	2	Rp10.000
6	31281M86J10-000	•BOLT,STUD	2	Rp47.500
7	31172M86J10-000	•REAR BKT ASSY	1	Rp380.000
8	31311M86J10-000	•ARMATORE ASSY	1	Rp881.000
9	31173M86J10-000	•SHAFT GEAR ASSY	1	Rp955.500
10	31230M86J11-000	•FRONT BRACKET ASSY	1	Rp284.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
