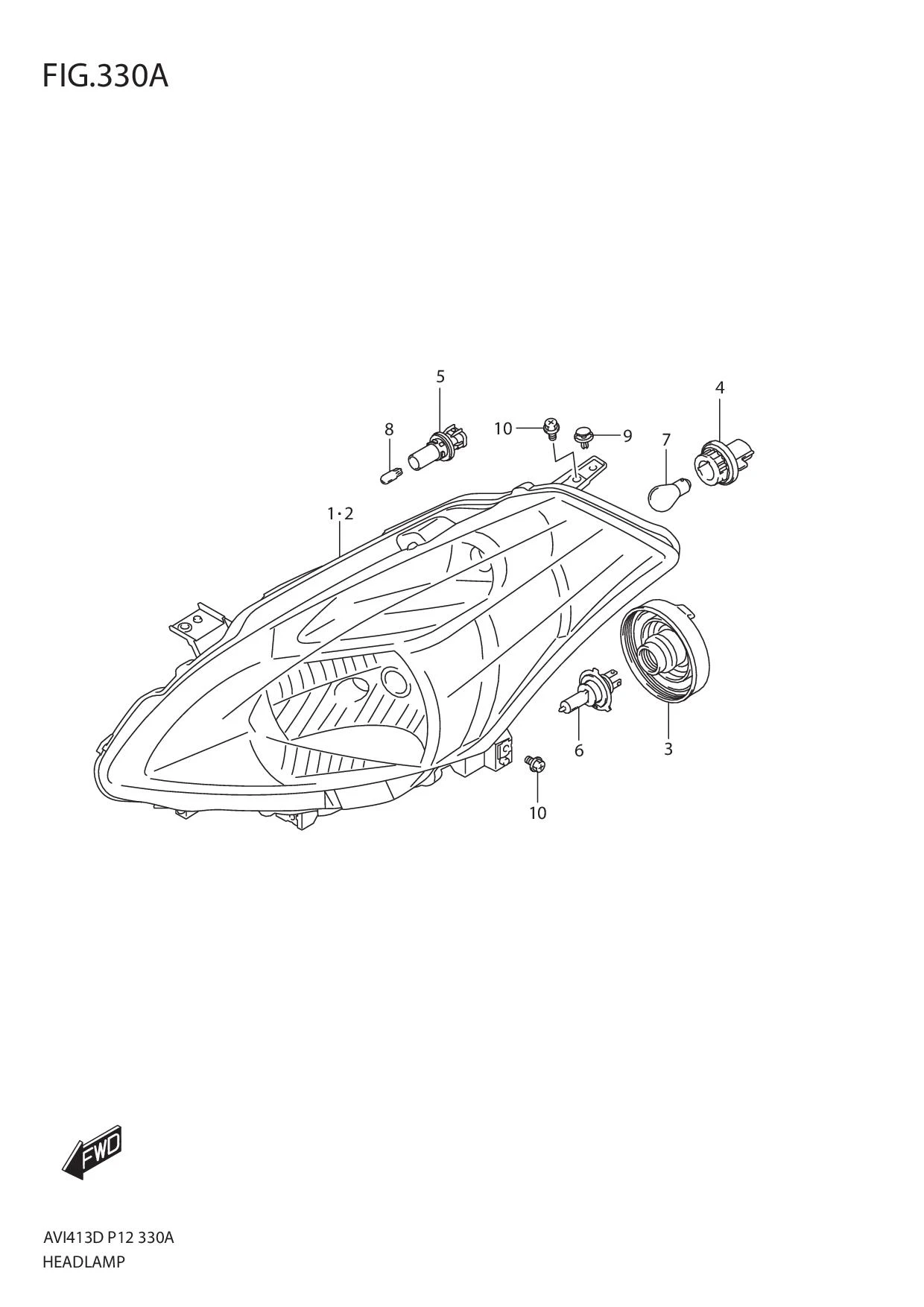

FIG.330A HEADLAMP

FIG.330A HEADLAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35121M60M00-000	UNIT,HEADLAMP RH	1	Rp1.668.000
2	35321M60M00-000	UNIT,HEADLAMP LH	1	Rp1.668.000
3	35125M79F00-000	COVER,SOCKET	2	Rp51.500
4	35618M55K00-000	SOCKET,TURNSIGNAL LAMP	2	Rp105.000
5	36118M68K00-000	SOCKET,POSITION LAMP	2	Rp107.500
6	09471-12060-000	BULB (12V60/55W,H4)	2	Rp882.000
7	09471-12245-000 SUB: 09471B12245N000	BULB (12V21W) (AMBER)	2	Rp30.500
8	09471-12216-000	BULB (12V5W)	2	Rp15.000
9	09409M08006-000 SUB: 09409M08L01-000	CLIP	2	Rp5.000
10	09122-76006-000	SCREW (6X16)	8	Rp13.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
