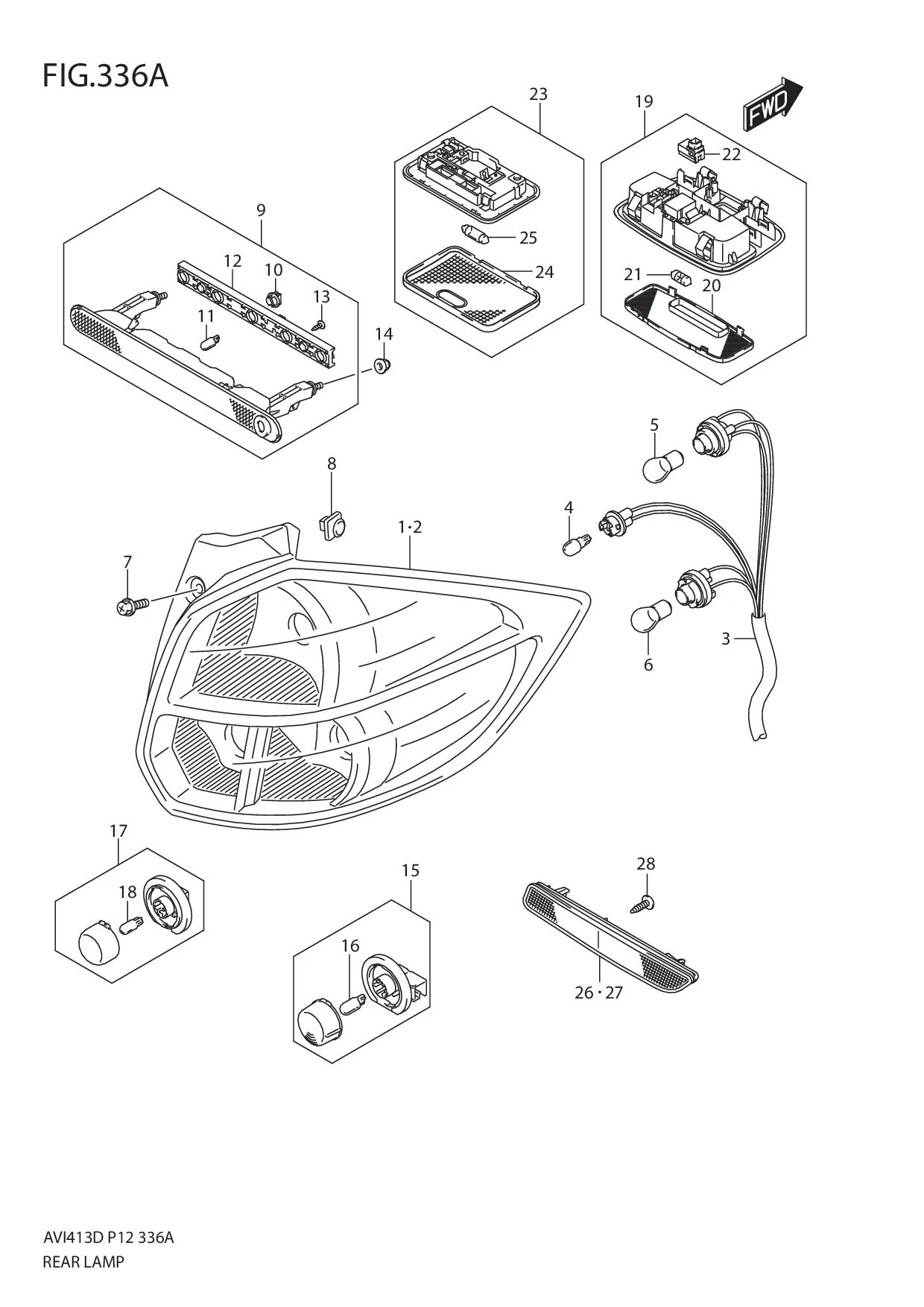

FIG.336A REAR LAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35651-77M01-000	LAMP UNIT,RR COMB RH	1	Rp452.500
2	35671-77M01-000	LAMP UNIT,RR COMB LH	1	Rp452.500
3	35658-77M01-000	SOCKET & CORD ASSY	2	Rp103.000
4	09471-12146-000 SUB: 09471B12146N000	BULB (12V,16W)	2	Rp39.500
5	09471-12046-000 SUB: 09471B12046N000	BULB (12V,21/5W)	2	Rp21.500
6	09471-12245-000 SUB: 09471B12245N000	BULB (12V,21W) (AMBER)	2	Rp30.500
7	02162-0616A-000	SCREW	4	Rp3.000
8	35153-65J00-000 SUB: 35153B65J00N000	GROMMET	4	Rp7.000
9	35810-74L00-000 SUB: 35810B74L00N000	LAMP UNIT,HIGH MOUNT STOP	1	Rp237.500	GLX
10	35817-74L00-000 SUB: 35817B74L00N000	•BULB HOLDER	5	Rp17.500
11	09471-12216-000	•BULB (12V,5W)	5	Rp15.000
12	35822-74L00-000 SUB: 35822B74L00N000	•CONTACT PLATE COMP	1	Rp50.000
13	35827-74L00-000 SUB: 35827B74L00N000	•SCREW	2	Rp4.500
14	09159-06100-000	NUT	2	Rp19.000
15	35910M67L03-000 SUB: 35910M67L02-000	LAMP ASSY,LICENSE	1	Rp56.500	RH
16	09471-12216-000	•BULB (12V,5W)	1	Rp15.000
17	35910M83K03-000 SUB: 35910M83K02-000	LAMP ASSY,LICENSE	1	Rp49.000	LH
18	09471-12216-000	•BULB (12V,5W)	1	Rp15.000
19	36210M76M20-V6N	LAMP ASSY ROOM (BEIGE)	1	Rp2.279.000	GLX
20	36212M76M20-000	•LENS	1	-	GL,GLX
21	09471-12L04-000 SUB: 09471B12L04N000	•BULB (12V,10W)	1	Rp30.500
22	39813M68L00-000	•MICROPHONE	1	Rp1.865.000	GLX
23	36210-67L00-V6N SUB: 36210B67L00NV6N	LAMP ASSY REAR ROOM (BEIGE)	1	Rp69.000
24	36212-67L00-000 SUB: 36212B67L00N000	•LENS	1	Rp15.000
25	09471-12L04-000 SUB: 09471B12L04N000	•BULB (12V,10W)	1	Rp30.500
26	35950-81K00-000 SUB: 35950B81K00N000	REFLECTOR ASSY,REAR RH	1	Rp31.000
27	35970-81K00-000 SUB: 35970B81K00N000	REFLECTOR ASSY,REAR LH	1	Rp31.000
28	03141-0516B-000	SCREW	2	Rp3.500
