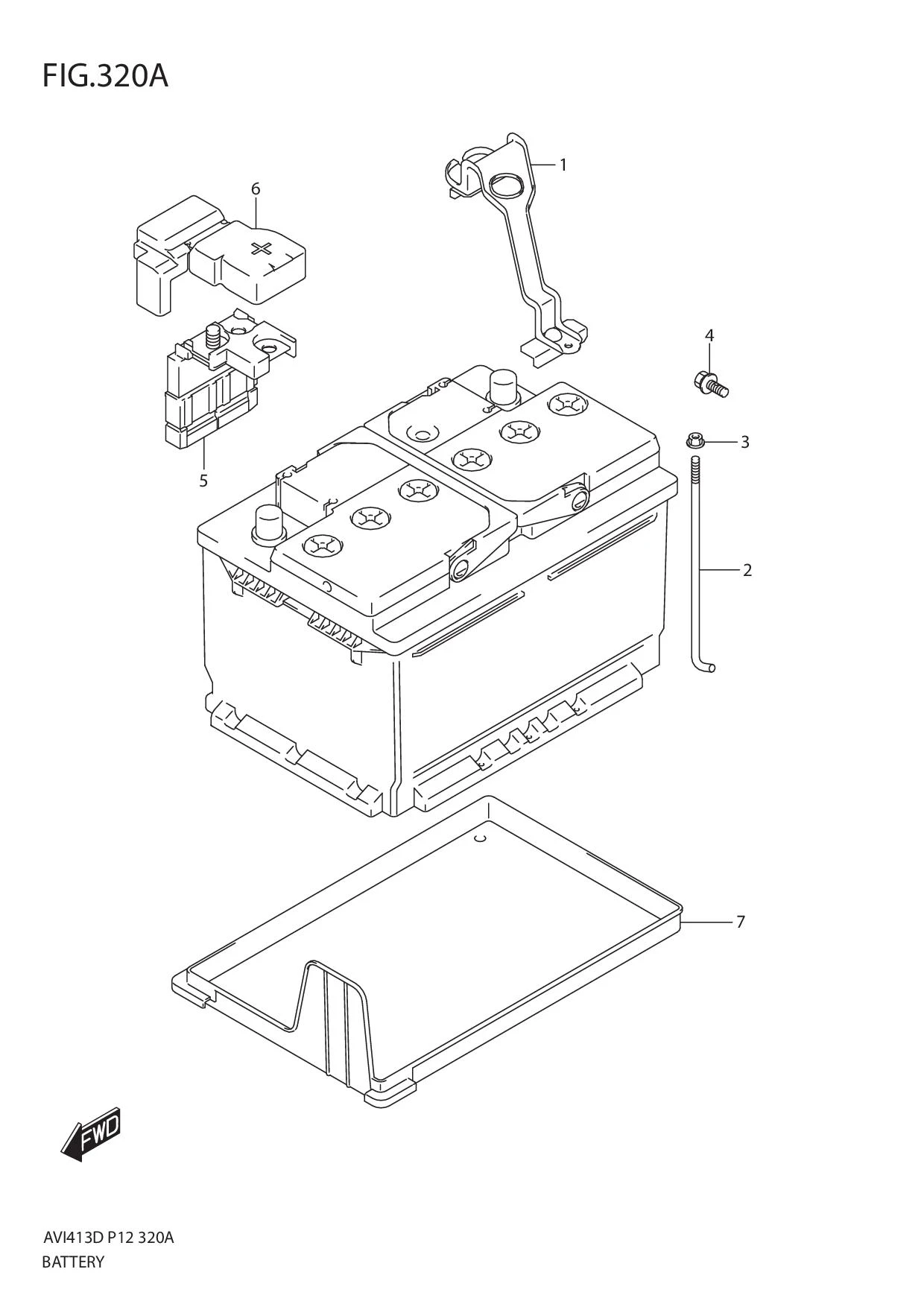

FIG.320A BATTERY

FIG.320A BATTERY

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	72511M74L00-000	BAND,BATTERY	1	Rp24.500
2	72729M79M00-000	BOLT,BATTERY	2	Rp7.000
3	08316-1005A-000	NUT	2	Rp2.500
4	09115-06005-000	BOLT (6X16)	1	Rp14.000
5	36739M79M00-000	FUSE,BATTERY	1	Rp689.000
6	36694M68L00-000	COVER,BATTERY TERMINAL	1	Rp56.000
7	33660M74L00-000	TRAY,BATTERY	1	Rp41.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
