ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.320A BATTERYFIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMP (GL,GLX)FIG.336A REAR LAMPFIG.340A WIRING HARNESSFIG.348A ENGINE HARNESS BRACKET (5MT)FIG.352A ELECTRICAL CONTROLFIG.360B LOCK SET (GL,GLX)FIG.370A FRONT WINDOW WIPERFIG.374B WINDOW WASHER (GLX)FIG.376A REAR WINDOW WIPERFIG.392B TUNER (GL,GLX)

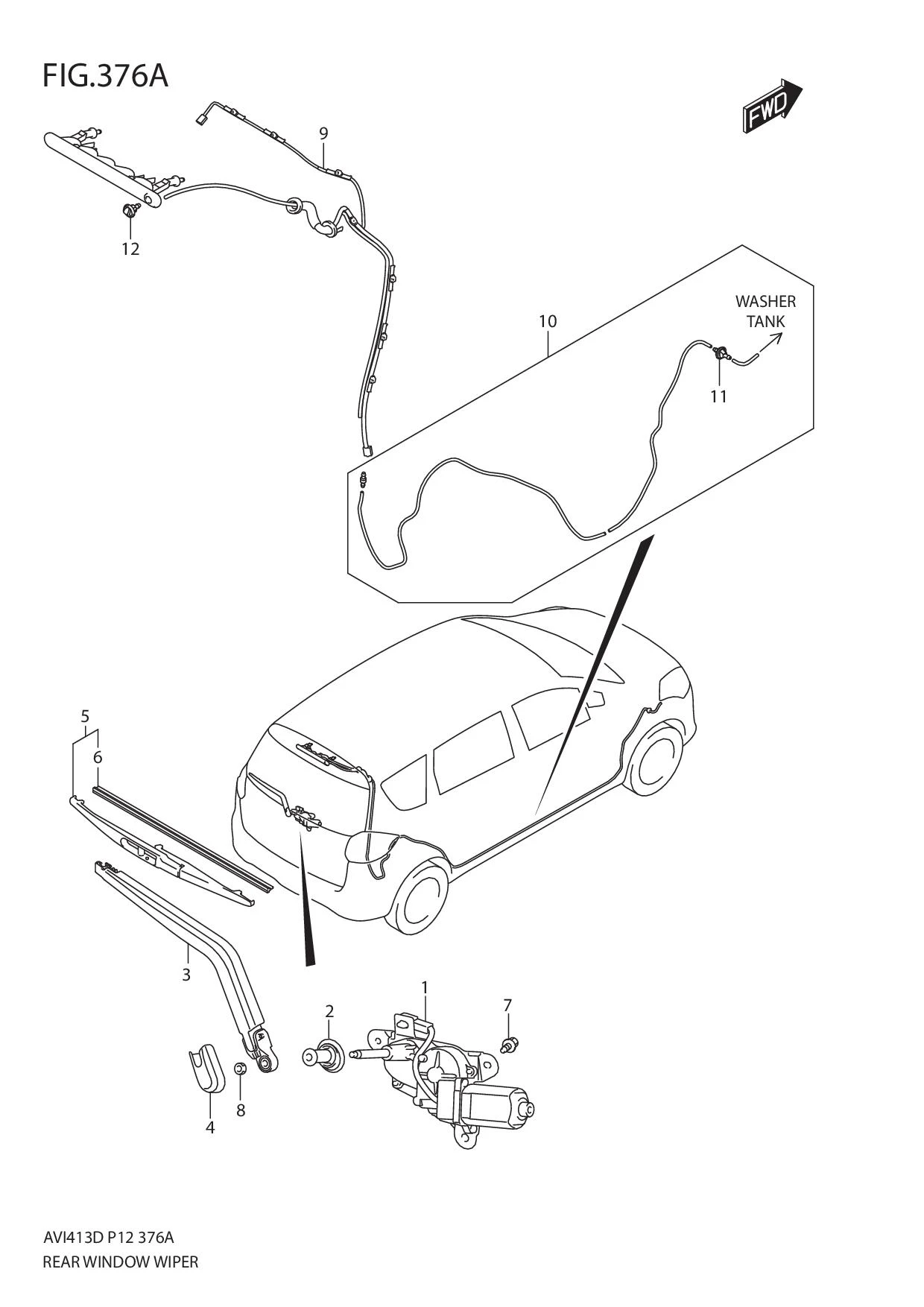

FIG.376A REAR WINDOW WIPER

FIG.376A REAR WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1 38810-77M00-000
SUB: 38810B77M00N000		 WIPER ASSY,REAR WINDOW 1 Rp366.000 GLX
2 38274-77M00-000
SUB: 38274B77M00N000		 CAP,REAR WIPER PIVOT 1 Rp7.000 GLX
3 38821-60M00-000
SUB: 38821B60M00N000		 ARM & BLADE ASSY,REAR WIPER 1 Rp145.000 GLX
4 38315-75H00-000 COVER,ARM HEAD 1 Rp50.500 GLX
5 38340-58J00-000
SUB: 38340B58J00N000		 BLADE ASSY,REAR WIPER 1 Rp113.500 GLX
6 38346-60MA0-000
SUB: 38346B60MA0N000		 •RUBBER,BLADE 1 Rp136.000 GLX
7 02162-0612A-000 SCREW 3 Rp11.000 GLX
8 08316-1006A-000 NUT 1 Rp2.000 GLX
9 38834-77M00-000
SUB: 38834B77M00N000		 HOSE ASSY,RR WASHER BACK DOOR 1 Rp265.000 GLX
10 38835-77M00-000
SUB: 38835B77M00N000		 HOSE ASSY,RR WASHER FLOOR 1 Rp74.000 GLX
11 38496-54G00-000 •JOINT,WASHER HOSE 1 Rp43.500 GLX
12 38840-63J00-000
SUB: 38840B63J00N000		 NOZZLE ASSY,REAR WASHER 1 Rp30.500 GLX

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
