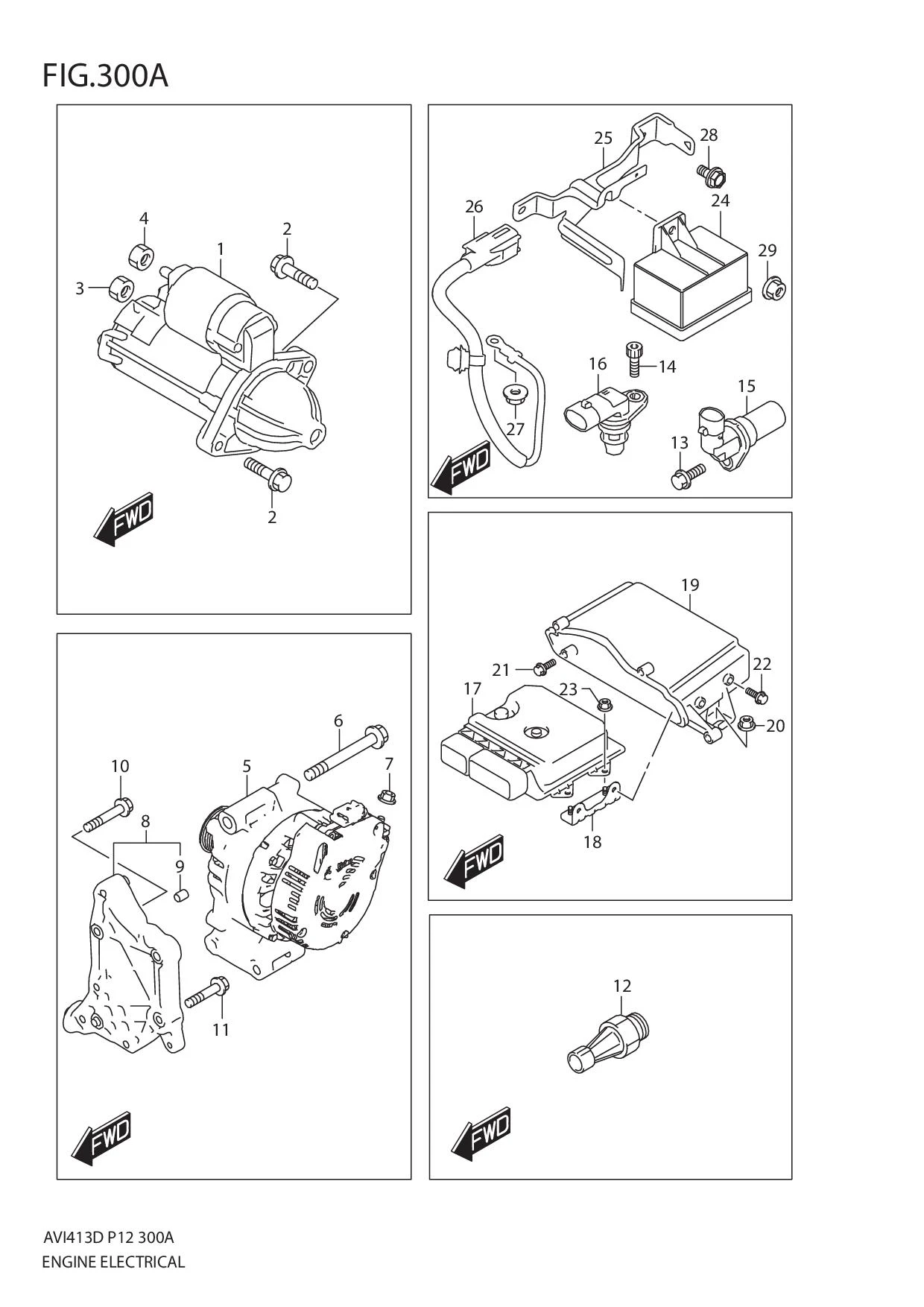

FIG.300A ENGINE ELECTRICAL

FIG.300A ENGINE ELECTRICAL
No No. Part Description Qty Price Per Pcs Remarks
1 31100M86J30-000
SUB: 31100M86J12-000		 MOTOR ASSY,STARTING 1 Rp2.514.000
2 31109M86J10-000 BOLT,STARTING MOTOR 2 Rp16.000
3 08310-0006A-000
SUB: 08310B0006AN000		 NUT 1 Rp2.500
4 08310-0008A-000
SUB: 08310M0008A-000		 NUT 1 Rp12.500
5 96100M79M11-000
SUB: 96100M79M00-000		 MGU ASSY 1 Rp17.874.000
6 01550M1095A-000 BOLT 3 Rp12.500
7 08316-1008A-000 NUT 1 Rp3.500
8 11550M79MA0-000 BRACKET ASSY,ALTERNATOR 1 Rp697.500
9 04211M13189-000
SUB: 04211-13149-000		 •PIN 2 Rp9.000
10 11553M86J01-000 BOLT 3 Rp10.500
11 15737M86J10-000
SUB: 15737M86J00-000		 BOLT 1 Rp8.500
12 37820M86J00-000 SWITCH ASSY,OIL PRESSURE 1 Rp66.500
13 13942M86J00-000 SCREW,CKP SENSOR 1 Rp8.000
14 15756M86J00-000 SCREW,CMP SENSOR 1 Rp5.500
15 33220M86J00-000 SENSOR ASSY,CKP 1 Rp218.000
16 33220M86J20-000 SENSOR ASSY,CMP 1 Rp578.500
17 33920M60MS0-000 CONTROLLER ASSY,DIESEL ENGINE 1 Rp10.212.500
18 33924M74L00-000 BRACKET,DIESEL ENGINE CONT 2 Rp11.500
19 33925M74L00-000 CASE,DIESEL ENG CONTROLLER 1 Rp146.000
20 09159M06112-000 NUT,SUCT PIPE CLAMP 2 Rp6.500
21 02162-0512A-000 SCREW 4 Rp11.500
22 01550-0616A-000 SCREW 4 Rp3.500
23 08316-1006A-000 NUT 4 Rp2.000
24 38850M55K00-000 CONTROLLER ASSY,GLOW PLUG 1 Rp516.000
25 38851M74L00-000 BRACKET,GLOW CONTROLLER 1 Rp18.000
26 38852M79M00-000 WIRE,GLOW CONT 1 Rp171.000
27 DISCONTINUE
SUB: 09159-06097-000		 NUT 1 -
28 02162-0612A-000 SCREW 2 Rp11.000
29 08316-1006A-000 NUT 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
