ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICALFIG.302A STARTING MOTORFIG.320A BATTERYFIG.324A SPEEDOMETERFIG.330A HEADLAMPFIG.332A FRONT FOG LAMP (GL,GLX)FIG.336A REAR LAMPFIG.340A WIRING HARNESSFIG.348A ENGINE HARNESS BRACKET (5MT)FIG.352A ELECTRICAL CONTROLFIG.360B LOCK SET (GL,GLX)FIG.370A FRONT WINDOW WIPERFIG.374B WINDOW WASHER (GLX)FIG.376A REAR WINDOW WIPERFIG.392B TUNER (GL,GLX)

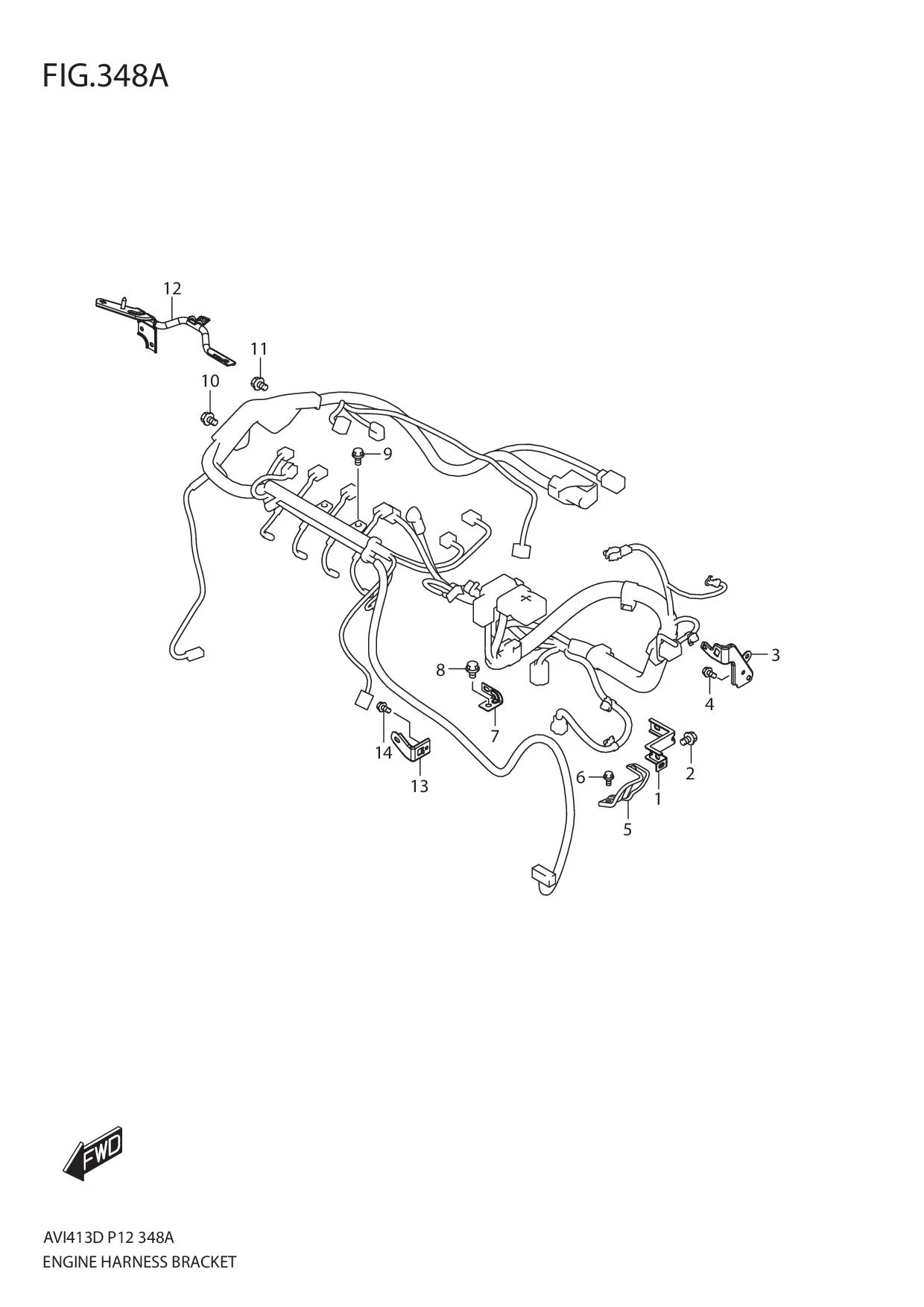

FIG.348A ENGINE HARNESS BRACKET (5MT)

FIG.348A ENGINE HARNESS BRACKET (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 36651B63J00N000		 BRACKET,ENGINE HARNESS 1 -
2 01550-0812A-000 BOLT 1 Rp3.500
3 36652-68L00-000
SUB: 36652B68L00N000		 BRACKET,ENGINE HARNESS BODY 1 Rp13.500
4 02162-0612A-000 SCREW 2 Rp11.000
5 36651M79M10-000 BRACKET,ENGINE HARNESS T/M 1 Rp14.500
6 01550-0612B-000 BOLT 1 Rp16.500
7 36656M86J00-000 BRACKET,ENGINE HARNESS 1 Rp6.500
8 01550-0612B-000 BOLT 1 Rp16.500
9 13943M86J40-000
SUB: 13943M86J00-000		 BOLT,ENGINE HARNESS CAM HSG 3 Rp5.500
10 13943M86J40-000
SUB: 13943M86J00-000		 BOLT,ENGINE HARNESS BRACKET 1 Rp5.500
11 13943M86J40-000
SUB: 13943M86J00-000		 BOLT,ENGINE HARNESS PROTECTOR 2 Rp5.500
12 36654M79M00-000 PIPE,ENGINE HARNESS BRKCET INTK 1 Rp43.500
13 36651M74L10-000 BRACKET,ENGINE HARNESS GLOW T/M 1 Rp10.500
14 01550-0612B-000 BOLT 1 Rp16.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
