ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICAL FIG.302A STARTING MOTOR FIG.320A BATTERY FIG.324A SPEEDOMETER FIG.330A HEADLAMP FIG.332A FRONT FOG LAMP (GL,GLX)FIG.336A REAR LAMP FIG.340A WIRING HARNESS FIG.348A ENGINE HARNESS BRACKET (5MT)FIG.352A ELECTRICAL CONTROL FIG.360B LOCK SET (GL,GLX)FIG.370A FRONT WINDOW WIPER FIG.374B WINDOW WASHER (GLX)FIG.376A REAR WINDOW WIPER FIG.392B TUNER (GL,GLX)

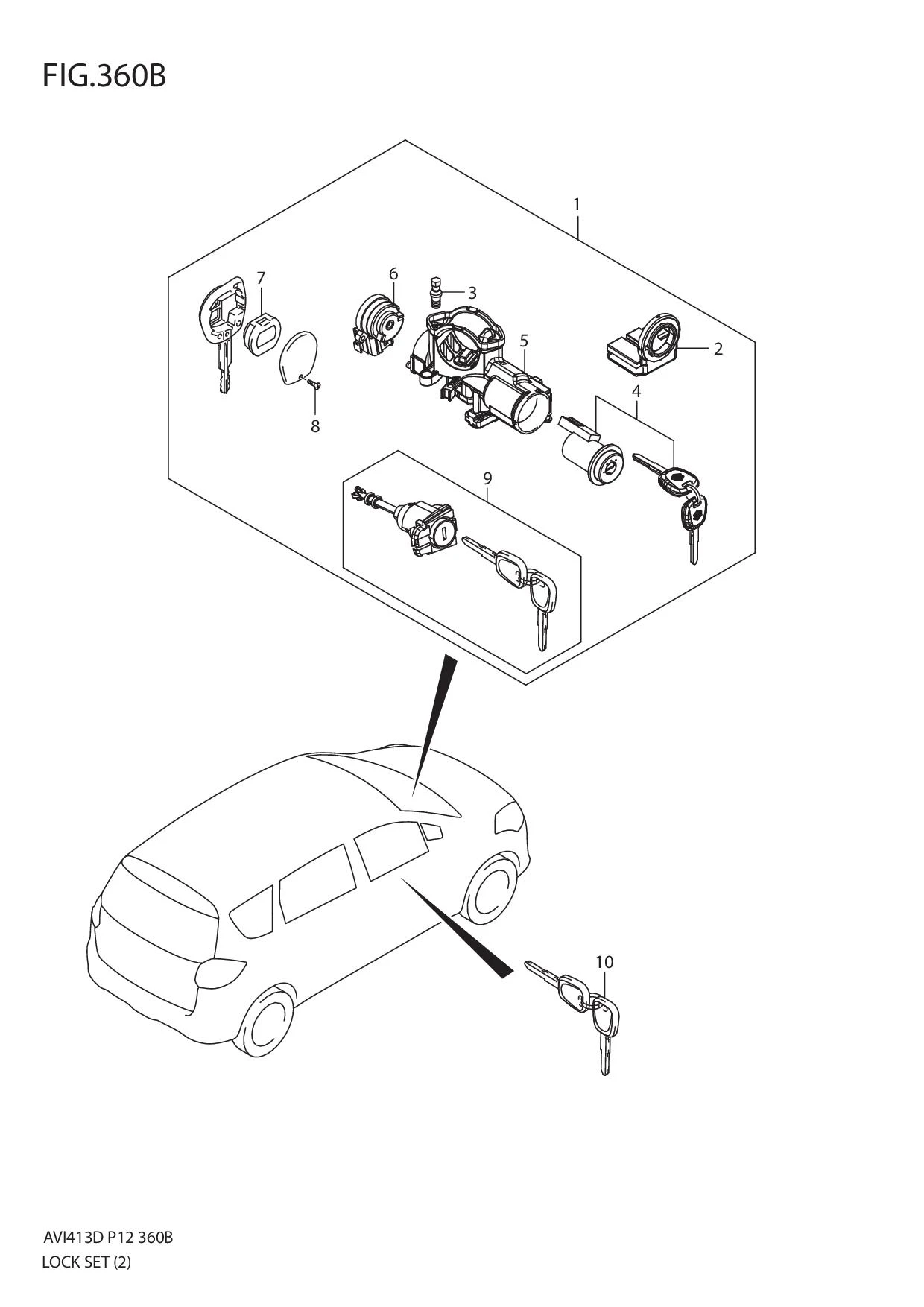

FIG.360B LOCK SET (GL,GLX)

FIG.360B LOCK SET (GL,GLX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37019M60M02-000 SUB: 37019M60M01-000	LOCK SET (MT)	1	Rp2.383.000
2	33970M83P00-000	•CONTROLLER	1	Rp600.500
3	37152M75J00-000	•BOLT	2	Rp16.000
4	37106M74850-000	LOCK SET,STEERING	1	-
5	37101M74L00-000	•BODY,STEERING LOCK	1	Rp1.631.500
6	37111M75J00-000	•SWITCH	1	Rp280.500
7	37182-68L00-000	SWITCH ASSY,TRANSMITTER	1	Rp1.454.500
8	37186-81A00-000	SCREW	2	Rp23.000
9	82270M63820-000	CYLINDER SET,FR DOOR RH	1	Rp239.500
10	DISCONTINUE SUB: 37145M55B20-000	KEY,BLANK	1	-

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
