ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICAL FIG.302A STARTING MOTOR FIG.320A BATTERY FIG.324A SPEEDOMETER FIG.330A HEADLAMP FIG.332A FRONT FOG LAMP (GL,GLX)FIG.336A REAR LAMP FIG.340A WIRING HARNESS FIG.348A ENGINE HARNESS BRACKET (5MT)FIG.352A ELECTRICAL CONTROL FIG.360B LOCK SET (GL,GLX)FIG.370A FRONT WINDOW WIPER FIG.374B WINDOW WASHER (GLX)FIG.376A REAR WINDOW WIPER FIG.392B TUNER (GL,GLX)

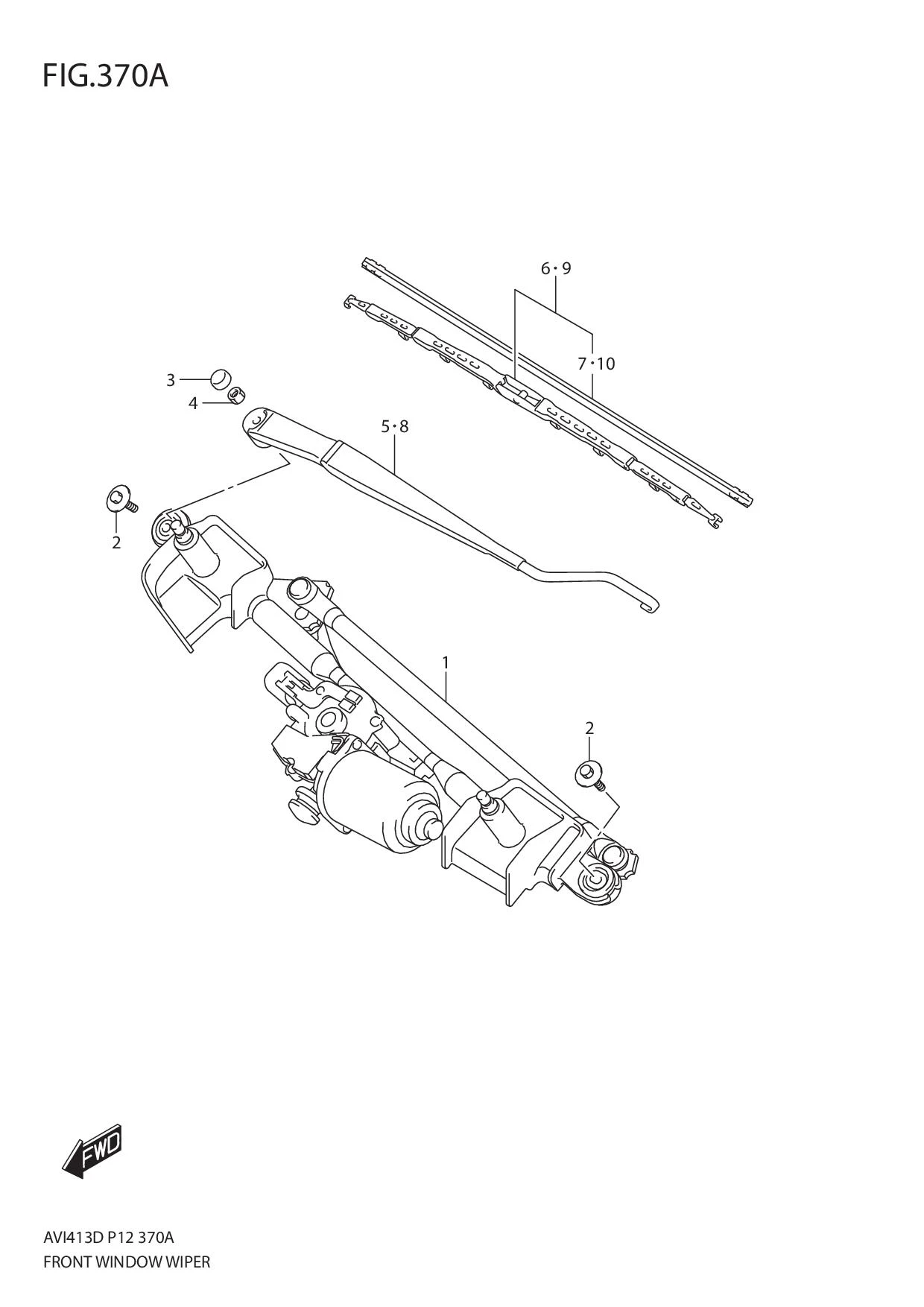

FIG.370A FRONT WINDOW WIPER

FIG.370A FRONT WINDOW WIPER

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	38100M60M00-000 SUB: 38100M60M20-000	WIPER ASSY,WINDSHIELD	1	Rp2.344.000
2	09116-06172-000	BOLT	2	Rp19.500
3	38315M74L00-000	CAP,WIPER PIVOT	2	Rp5.000
4	08310-0008A-000 SUB: 08310M0008A-000	NUT	2	Rp12.500
5	38310M60M01-000	ARM ASSY,WIPER DRIVER	1	Rp220.000
6	38340M60M02-000	BLADE ASSY,WIPER	1	Rp352.000
7	38346M60M00-000 SUB: 38346M60M10-000	•RUBBER,BLADE	1	Rp105.500
8	38330M60M01-000	ARM ASSY,WIPER ASSISTANT	1	Rp250.000
9	38350M60M02-000	BLADE ASSY,WIPER	1	Rp238.500
10	38347M60M00-000	•RUBBER,BLADE	1	Rp210.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
