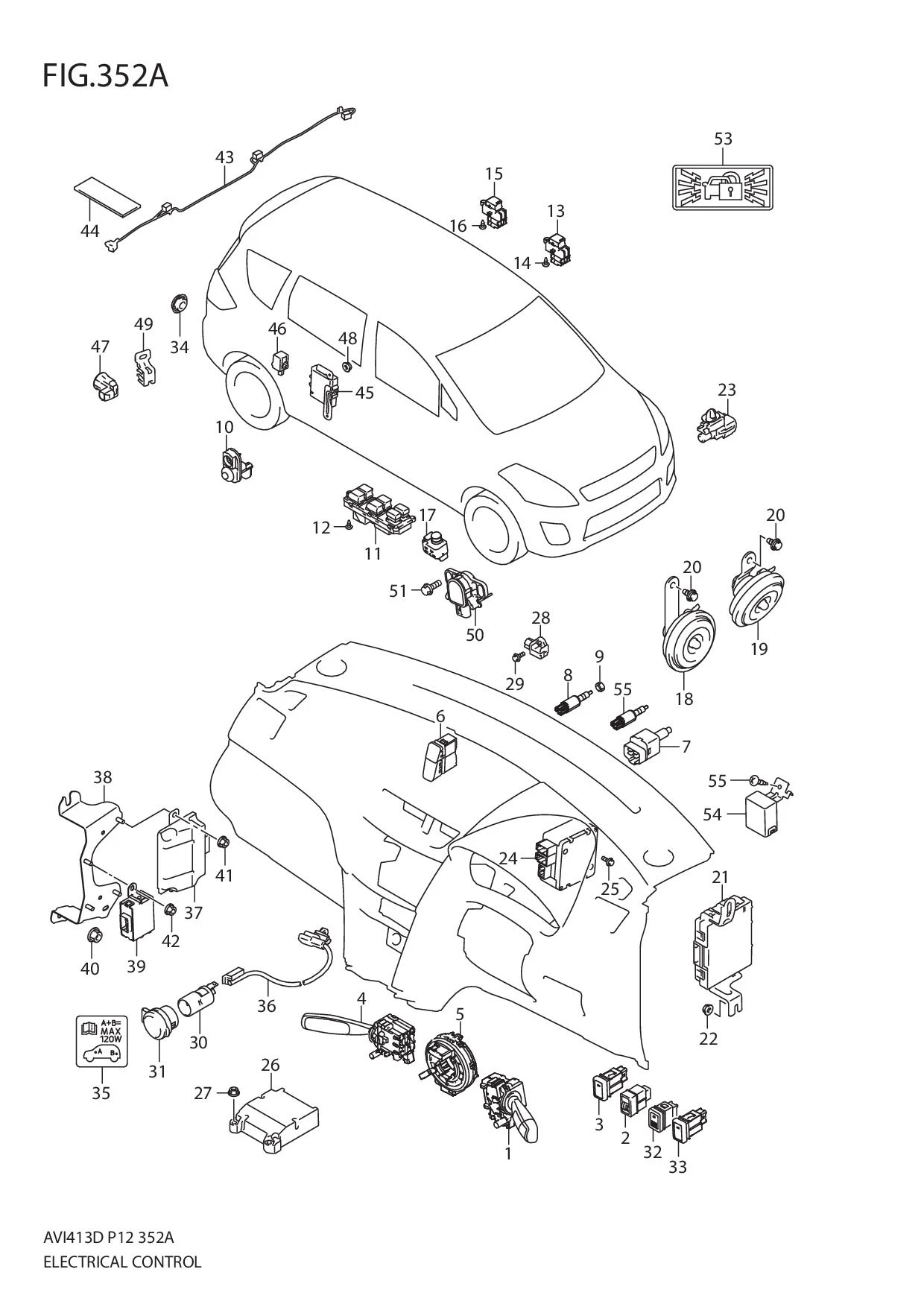

| 1 |
37210M74L00-000 |
SWITCH ASSY,LIGHTING & TURN |
1 |
Rp251.500 |
| |
| 2 |
37780M83P00-000 |
SWITCH ASSY,HEADLAMP LEVELING |
1 |
Rp107.500 |
| |
| 3 |
37285M79M00-000 |
SWITCH ASSY,FRONT FOG LAMP |
1 |
Rp143.500 |
GL,GLX | |
| 4 |
37310M74L10-000 |
SWITCH ASSY,WIPER & WASHER |
1 |
Rp488.500 |
GLX | |
| 5 |
37480M76M10-000 |
CABLE ASSY,CONTACT COIL |
1 |
Rp655.000 |
GLX | |
| 6 |
37430M74L10-R8R |
SWITCH ASSY,HAZARD & SECURITY (BROWN) |
1 |
Rp158.000 |
| |
| 7 |
37740M83K00-000 |
SET,STOP LAMP SWITCH |
1 |
Rp109.000 |
| |
| 8 |
37970M74L02-000
SUB: 37970M74L01-000 |
SWITCH ASSY,CLUTCH |
1 |
Rp165.500 |
| |
| 9 |
09140-10043-000 |
NUT |
2 |
Rp14.500 |
| |
| 10 |
37670M60M10-000
SUB: 37670M60M01-000 |
SWITCH ASSY,DOOR |
4 |
Rp35.000 |
GL,GLX | |
| 11 |
37990M74L00-000 |
SWITCH ASSY,POWER WINDOW MAIN |
1 |
Rp675.000 |
GL,GLX | |
| 12 |
03541-0410A-000 |
SCREW |
3 |
Rp11.000 |
GL,GLX | |
| 13 |
37995M74L00-000 |
SWITCH ASSY,POWER WINDOW SUB |
1 |
Rp113.500 |
GL,GLX | |
| 14 |
03541-0410A-000 |
SCREW |
1 |
Rp11.000 |
GL,GLX | |
| 15 |
37995M74L00-000 |
SWITCH ASSY,POWER WINDOW REAR |
2 |
Rp113.500 |
GL,GLX | |
| 16 |
03541-0410A-000 |
SCREW |
2 |
Rp11.000 |
GL,GLX | |
| 17 |
37950M79M11-000 |
SWITCH ASSY,MIRROR |
1 |
Rp205.500 |
GL,GLX | |
| 18 |
38500M60M00-000 |
HORN ASSY,LOW PITCHED |
1 |
Rp190.000 |
| |
| 19 |
38500M74L30-000 |
HORN ASSY,HIGH PITCHED |
1 |
Rp164.000 |
| |
| 20 |
09115-08001-000 |
BOLT (6X16) |
2 |
Rp21.500 |
| |
| 21 |
36770M83P80-000 |
CONTROLLER ASSY,BODY ELECTRIC |
1 |
Rp3.372.500 |
GL,GLX | |
| 22 |
09159-08127-000
SUB: 09159M08153-000 |
NUT |
2 |
Rp11.000 |
| |
| 23 |
95643M67P00-000 |
SENSOR,OUTSIDE AIR TEMP |
1 |
Rp189.000 |
GLX | |
| 24 |
38720M60M30-000
SUB: 38720M60M21-000 |
CONTROLLER ASSY,POWER STEERING |
1 |
Rp3.962.500 |
| |
| 25 |
02162-0508A-000 |
SCREW |
2 |
Rp3.500 |
| |
| 26 |
38910-60M10-000 |
CONTROLLER ASSY,AIR BAG |
1 |
Rp3.962.000 |
| |
| 27 |
09159M06112-000 |
NUT |
3 |
Rp6.500 |
| |
| 28 |
38930-57L00-000
SUB: 38930B57L00N000 |
SENSOR ASSY,FORWARD |
1 |
Rp174.500 |
| |
| 29 |
09115-06004-000 |
BOLT (6X16) |
1 |
Rp19.500 |
| |
| 30 |
39420M83P00-000 |
BODY,SOCKET |
2 |
Rp102.000 |
GL,GLX | |
| 31 |
39441M75J01-P4Z |
COVER,SOCKET (GRAY) |
2 |
Rp27.000 |
GL,GLX | |
| 32 |
37270M79M00-000 |
SWITCH ASSY,PARK SNSR |
1 |
Rp143.500 |
GL,GLX | |
| 33 |
35180M65L00-000 |
SWITCH ASSY,ENG AUTO STOP OFF |
1 |
Rp217.500 |
| |
| 34 |
09250-16015-000
SUB: 09250M16015-000 |
PLUG |
1 |
Rp3.500 |
| |
| 35 |
39442-64M00-000 |
LABEL,ACC SOCKET |
1 |
Rp5.500 |
GL,GLX | |
| 36 |
39460M58R00-000 |
HARNESS ASSY,SOCKET |
1 |
Rp92.000 |
GL,GLX | |
| 37 |
33570M71M00-000 |
CONVERTER ASSY,DC/DC |
1 |
Rp1.777.000 |
| |
| 38 |
33571M60M00-000 |
BRACKET,DC/DC CONVERTER |
1 |
Rp53.000 |
| |
| 39 |
33580M79M00-000 |
CONTROLLER ASSY,GATEWAY |
1 |
Rp1.619.500 |
| |
| 40 |
09159-08127-000
SUB: 09159M08153-000 |
NUT |
1 |
Rp11.000 |
| |
| 41 |
08316-1006A-000 |
NUT |
2 |
Rp2.000 |
| |
| 42 |
08316-1006A-000 |
NUT |
2 |
Rp2.000 |
| |
| 43 |
36813M58R00-000 |
WIRE COMP,RR PARK SNSR |
1 |
Rp958.500 |
GL,GLX | |
| 44 |
36930M70F10-000
SUB: 36930M70F00-000 |
COVER,FL HARNESS |
3 |
Rp4.000 |
GL,GLX | |
| 45 |
37730M58R00-000 |
CONTROLLER ASSY,PARK SNSR |
1 |
Rp1.165.500 |
GL,GLX | |
| 46 |
37734M79M00-000 |
BUZZER,PARK SNSR |
1 |
Rp241.500 |
GL,GLX | |
| 47 |
37735-59R00-000 |
SENSOR ASSY,PARK (NOT PAINT) |
4 |
Rp208.000 |
GL,GLX | |
| 48 |
09159M06112-000 |
NUT |
2 |
Rp6.500 |
GL,GLX | |
| 49 |
37736M58R00-000 |
BRACKET,PARK SNSR HARNESS |
2 |
Rp16.500 |
GL,GLX | |
| 50 |
91480-79M00-000 |
SENSOR ASSY,BRAKE STROKE |
1 |
Rp1.281.000 |
| |
| 51 |
01550-0616A-000
SUB: 01550M0616A-000 |
BOLT |
2 |
Rp3.500 |
| |
| 52 |
37970M71M02-000
SUB: 37970M71M01-000 |
SWITCH ASSY,CLUTCH START |
1 |
Rp86.500 |
| |
| 53 |
36771-79M01-000
SUB: 36771-79M00-000 |
LABEL,SECURITY ALARM |
1 |
Rp5.000 |
GL,GLX | |
| 54 |
37190-68L00-000 |
RECEIVER ASSY,KEYLESS |
1 |
Rp2.374.000 |
GL,GLX | |
| 55 |
03141-0516B-000
SUB: 03141M0512A-000 |
SCREW |
1 |
Rp3.500 |
GL,GLX | |
