ERTIGA DIESEL

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.300A ENGINE ELECTRICAL FIG.302A STARTING MOTOR FIG.320A BATTERY FIG.324A SPEEDOMETER FIG.330A HEADLAMP FIG.332A FRONT FOG LAMP (GL,GLX)FIG.336A REAR LAMP FIG.340A WIRING HARNESS FIG.348A ENGINE HARNESS BRACKET (5MT)FIG.352A ELECTRICAL CONTROL FIG.360B LOCK SET (GL,GLX)FIG.370A FRONT WINDOW WIPER FIG.374B WINDOW WASHER (GLX)FIG.376A REAR WINDOW WIPER FIG.392B TUNER (GL,GLX)

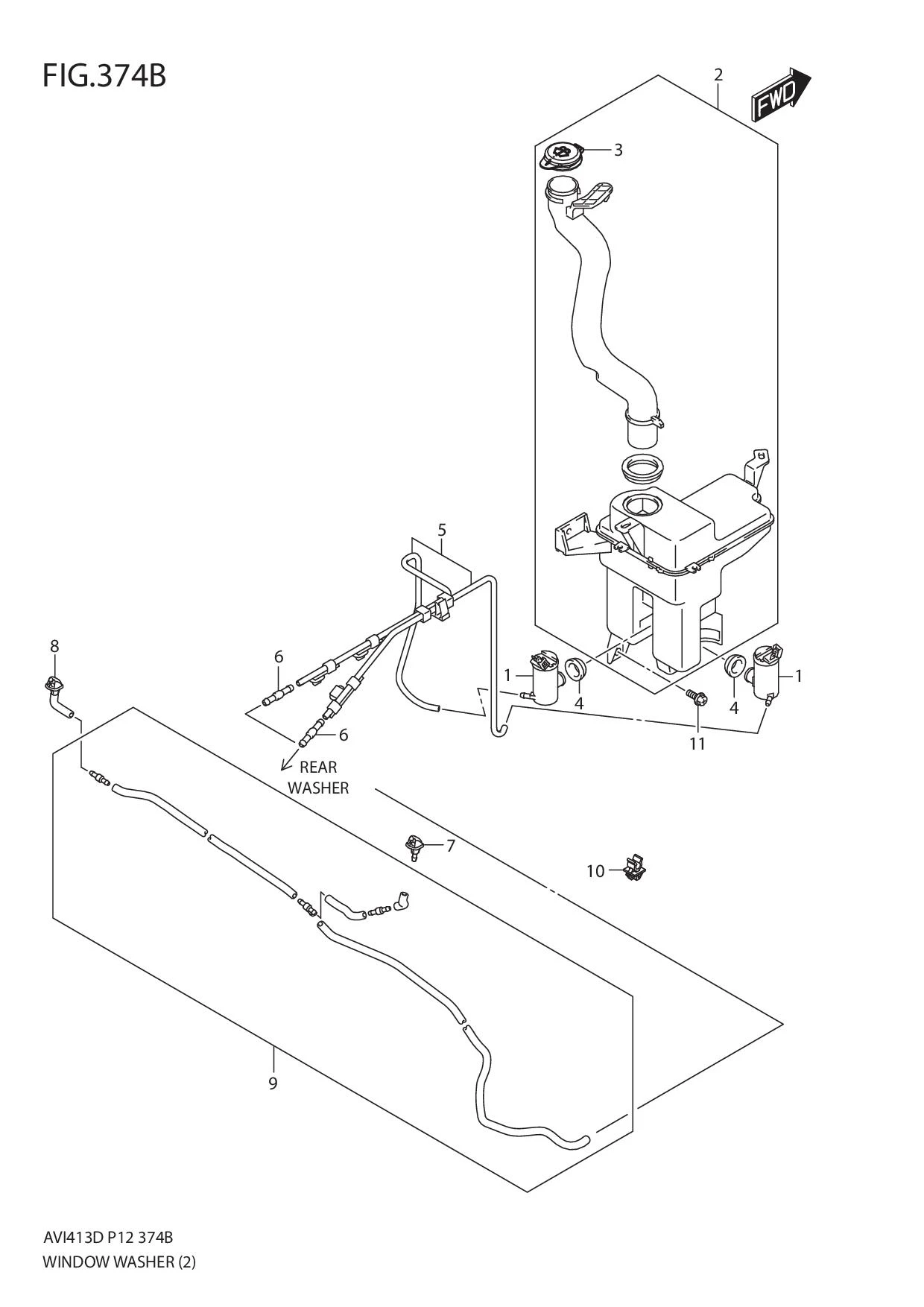

FIG.374B WINDOW WASHER (GLX)

FIG.374B WINDOW WASHER (GLX)

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	38410M74L10-000 SUB: 38410M74L00-000	PUMP ASSY,WASHER	2	Rp270.500
2	38450M74L10-000	TANK ASSY,WASHER	1	Rp118.500
3	38452M74L00-000	•CAP,INLET PIPE	1	Rp47.500
4	38453M74L00-000	GROMMET,WASHER PUMP	2	Rp11.000
5	38459M60M10-000	HOSE ASSY,FRONT	1	Rp40.000
6	38833M74L00-000	CONNECTOR	2	Rp5.000
7	38480M60M00-000	NOZZLE,WASHER RH	1	Rp23.000
8	38480M60M10-000	NOZZLE,WASHER LH	1	Rp31.500
9	38832M60M00-000	HOSE ASSY,FRONT WASHER	1	Rp48.000
10	09403-07307-5PK	CLAMP,WASHER HOSE (BLACK)	1	Rp18.500
11	02162-0612A-000	SCREW	3	Rp11.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
