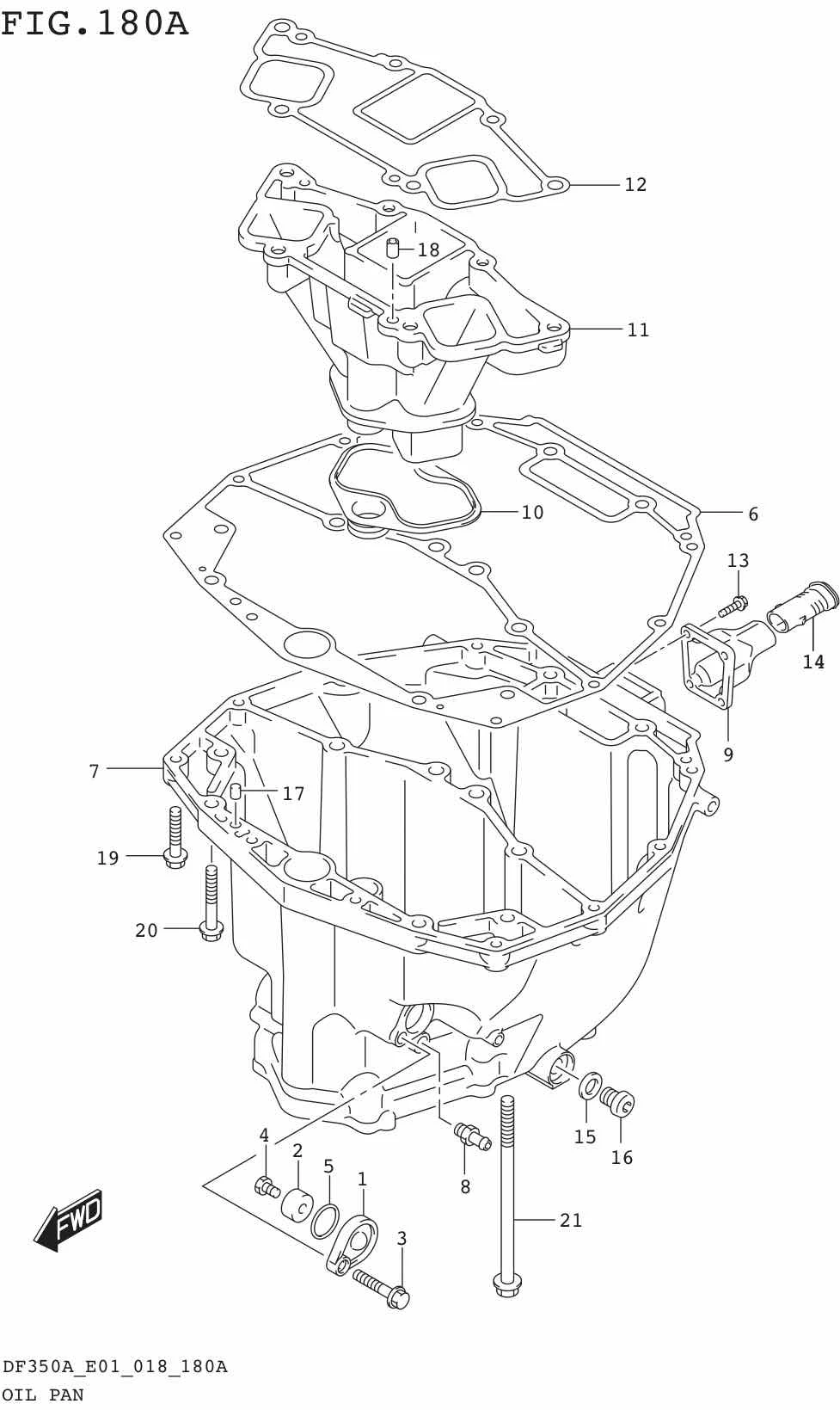

FIG.180A OIL PAN

FIG.180A OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1-2 11261-93J10-Y5S COVER, PROTECTION ANODE (WHITE) 1 Rp94.500
1-1 11261-93J10-YAY COVER, PROTECTION ANODE (BLACK) 1 Rp94.500
2-1 55321-87J01-000 ANODE, PROTECTION 1 Rp79.500
2-2 55321-87J11-000 ANODE (MAGNESIUM) 1 Rp140.000 OPT
3 DISCONTINUE
SUB: 29103-93J30-000		 BOLT, ANODE COVER 1 -
4 09103-06281-000 BOLT (6X14) 1 Rp20.500
5 09280-22019-000 O RING (D:1.9,ID:21.8) 1 Rp15.500
6 11489-98L00-000 GASKET, OIL PAN 1 Rp448.000
7-1 11501-98L00-YAY PAN, OIL (BLACK) 1 Rp5.638.000
7-2 11501-98L00-Y5S PAN, OIL (WHITE) 1 Rp6.233.000
8 11591-98L00-000 UNION, OIL PAN 1 Rp95.000
9 11541-93J00-019 PIPE, EXHAUST (BLACK) 1 Rp179.500
10 14154-93J02-000
SUB: 14154-93J01-000		 SEAL, EXHAUST TUBE 1 Rp57.000
11 14211-98L00-000 TUBE, EXHAUST 1 Rp2.233.000
12 14212-98L00-000 GASKET, EXHAUST TUBE 1 Rp95.500
13 29116-93J00-000 BOLT, EXHAUST PIPE 4 Rp23.000
14 11435-98L01-000 PIPE, EXHAUST RELEASE 1 Rp299.000
15 09168-12012-000 GASKET (12.5X20X2.5) 1 Rp12.500
16 09248-12009-000 PLUG (12X18.65) 1 Rp49.000
17 09202-08006-000 PIN (8X12) 2 Rp27.000
18 09202-08006-000 PIN (8X12) 2 Rp27.000
19 09116-08128-000 BOLT (8X40) 10 Rp124.500
20 09116-10176-000 BOLT (10X44) 4 Rp100.000
21 09116-10184-000 BOLT (10X200) 2 Rp180.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
