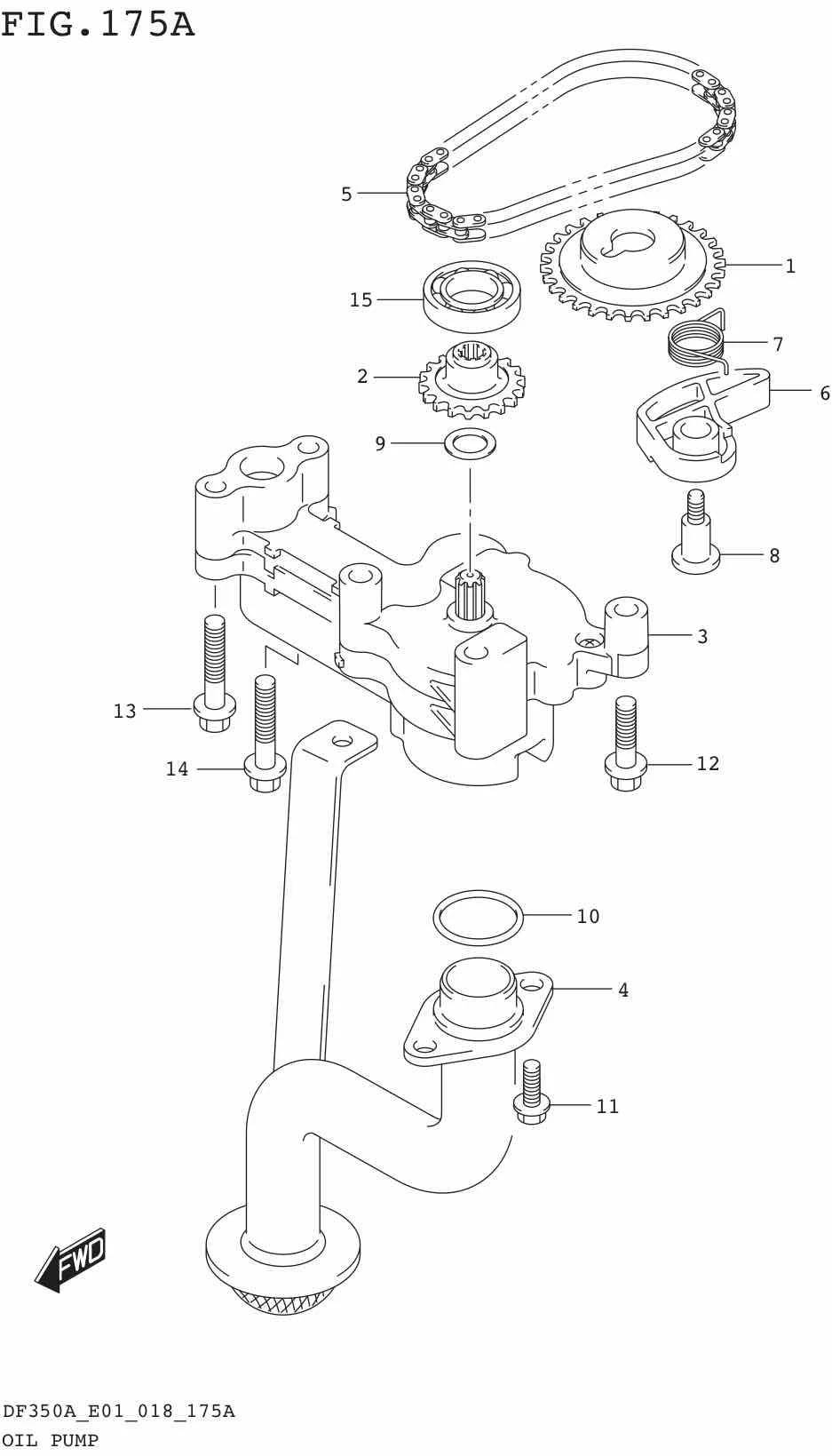

FIG.175A OIL PUMP (DF350A)

FIG.175A OIL PUMP (DF350A)
No No. Part Description Qty Price Per Pcs Remarks
1 12632-93J11-000 SPROCKET, OIL PUMP DRIVE (NT:32) 1 Rp510.000
2 16113-93J10-000 SPROCKET, OIL PUMP DRIVEN (NT:18) 1 Rp245.500
3-1 16400-93J20-000
SUB: 16400-93J03-000		 PUMP ASSY, OIL 1 Rp1.679.000 UP TO VIN.811583
3-2 16400-93J20-000
SUB: 16400-93J10-000		 PUMP ASSY, OIL 1 Rp1.679.000 FROM VIN.811584
4 DISCONTINUE
SUB: 16520-93J00-000		 STRAINER, OIL PUMP 1 -
5 16760-93J00-000 CHAIN, OIL PUMP DRIVE 1 Rp332.000
6 16781-93J00-000 TENSIONER, OIL PUMP CHAIN 1 Rp169.500
7 16782-93J00-000 SPRING, OIL PUMP TENSIONER 1 Rp64.500
8 16783-93J01-000 BOLT, OIL PUMP TENSIONER 1 Rp52.500
9 09181-12158-000 SHIM (12X20X0.5) 1 Rp13.500
10 09280-22020-000 O RING (D:2.4,ID:21.8) 2 Rp19.000
11 01550-0616A-000 BOLT 3 Rp3.500
12 01550-0845A-000 BOLT 1 Rp18.000
13 01550-0865B-000
SUB: 01550-0865A-000		 BOLT 3 Rp8.500
14 01550-0885A-000 BOLT 1 Rp5.500
15 08110-60020-000 BEARING 1 Rp43.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
