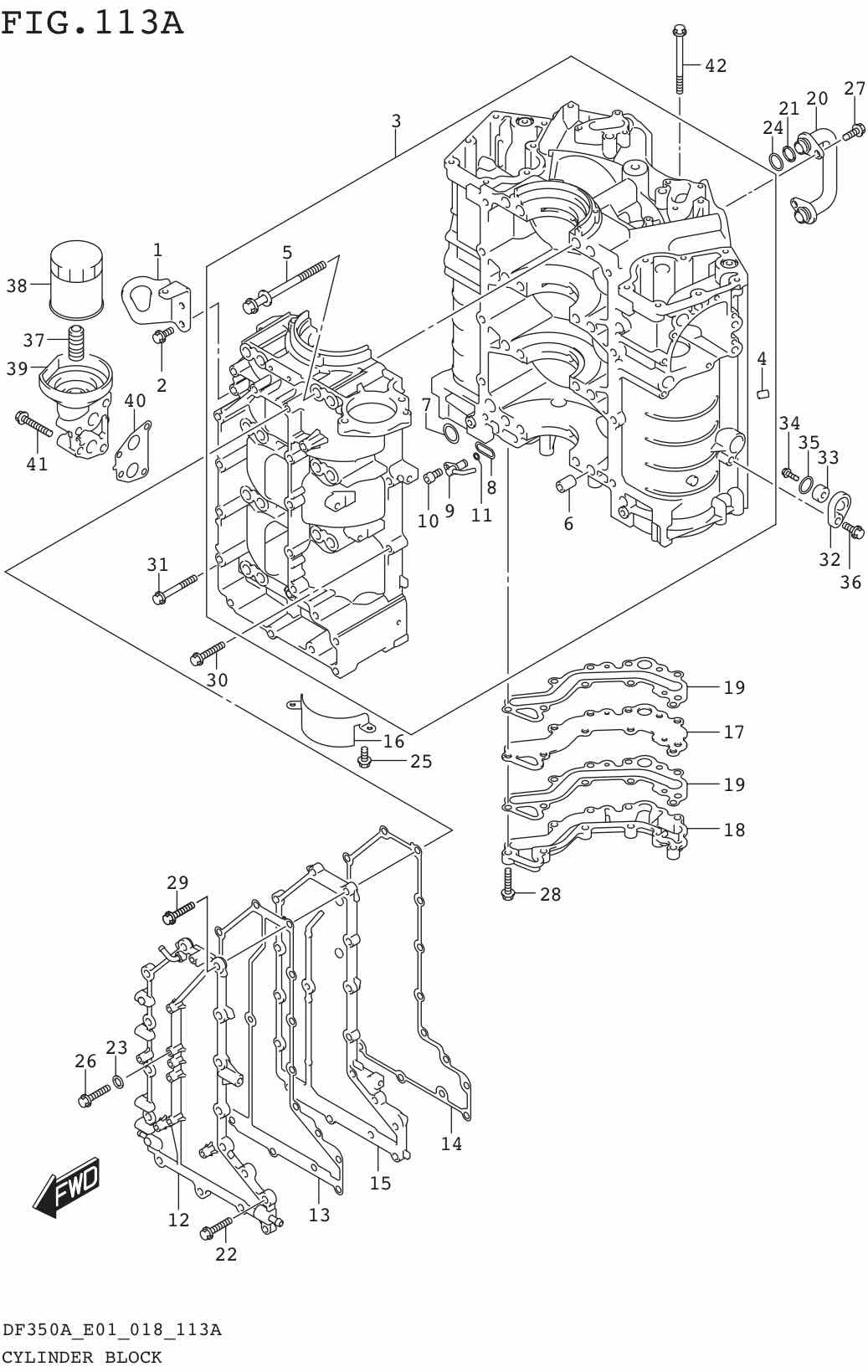

FIG.113A CYLINDER BLOCK

FIG.113A CYLINDER BLOCK
No No. Part Description Qty Price Per Pcs Remarks
1 11293-98L00-000 HOOK, ENGINE FRONT 1 Rp127.000
2 01550-0820C-000 BOLT 2 Rp17.500
3 11301-98L00-000 BLOCK SET, CYLINDER 1 Rp50.121.000
4 11112-93J00-000 .PLUG, OIL VENTURI 2 Rp32.000
5 11117-98L00-000 .BOLT, CRANKCASE 16 Rp63.500
6 09206-14004-000 .PIN (14X11.4X23) 5 Rp32.000
7 11318-98L00-000 .GASKET, OIL GALLERY NO.1 1 Rp29.000
8 11319-98L00-000 .GASKET, OIL GALLERY NO.2 1 Rp29.000
9 11390-98L00-000 .JET, PISTON COOLING 6 Rp479.000
10 09106-06075-000 .BOLT (6X12) 6 Rp15.000
11 09280-05007-000 .O RING (D:1.2, ID:4.7) 6 Rp14.500
12 11330-98L00-000 COVER, CRANKCASE WTR JKT 1 Rp1.973.000
13 11332-98L00-000 GASKET, WTR JKT COVER 1 Rp241.000
14 11333-98L00-000 GASKET, CRANKCASE OIL COVER 1 Rp233.500
15 11334-98L00-000 COVER, OIL GALLERY CRANKCASE 1 Rp1.660.000
16 12247-98L00-000 PLATE, OIL GUARD 1 Rp45.000
17 16431-98L00-000 PLATE, OIL GALLERY 1 Rp111.500
18 16432-98L00-000 COVER, OIL GALLERY 1 Rp704.500
19 16433-98L00-000 GASKET, OIL GALLERY 2 Rp56.500
20 16480-98L00-000 PIPE, OIL GALLERY 1 Rp363.500
21 16485-98L00-000 RING, BACK UP OIL GALLERY 2 Rp42.500
22 09103-08379-000 BOLT (8X165) 1 Rp38.500
23 09168-06023-000 GASKET (5.8X13X1.2) 1 Rp13.500
24 DISCONTINUE
SUB: 09280-18004-000		 O RING (D:2.4, ID:17.8) 2 -
25 01550-0612A-000 BOLT 2 Rp3.500
26 01550-06357-000 BOLT 1 Rp18.500
27 01550-0820C-000 BOLT 2 Rp17.500
28 01550-0835A-000 BOLT 9 Rp3.500
29 01550-0840C-000 BOLT 13 Rp19.000
30 01550-08457-000 BOLT 7 Rp25.500
31 01550-08657-000 BOLT 1 Rp28.500
32 11261-93J00-000 COVER, PROTECTION ANODE 2 Rp132.500
33 55321-87J01-000 ANODE, PROTECTION 2 Rp79.500
34 09103-06281-000 BOLT (6X14) 2 Rp20.500
35 09280-22019-000 O RING (D:1.9, ID:21.8) 2 Rp15.500
36 01550-0820C-000 BOLT 2 Rp17.500
37 11241-86FA0-000 STAND, OIL FILTER 1 Rp88.000
38 16510-96J11-000
SUB: 16510-96J10-000		 FILTER ASSY, OIL 1 Rp210.500
39 16531-98L00-000 CASE, OIL FILTER ADAPTER 1 Rp933.500
40 16539-98L10-000 GASKET, CASE 1 Rp43.000
41 01550-08507-000 BOLT 4 Rp21.500
42 DISCONTINUE
SUB: 09116-10134-000		 BOLT (10X115) 1 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
