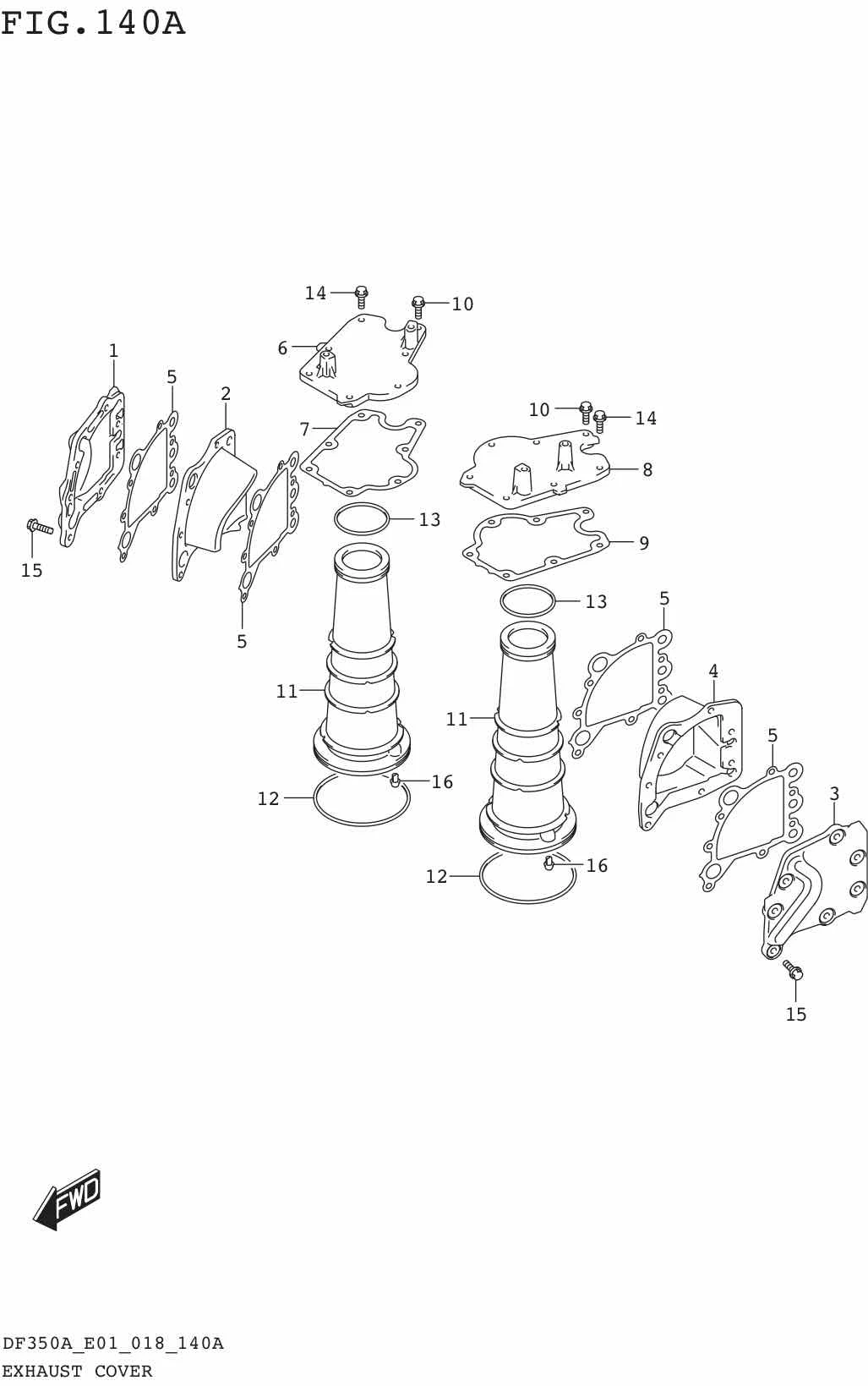

FIG.140A EXHAUST COVER

FIG.140A EXHAUST COVER
No No. Part Description Qty Price Per Pcs Remarks
1 14141-98L00-000 COVER, EXHAUST STBD 1 Rp733.000
2 14161-98L00-000 COVER, EXHAUST INNER STBD 1 Rp1.212.000
3 14142-98L00-000 COVER, EXHAUST PORT 1 Rp733.000
4 14162-98L00-000 COVER, EXHAUST INNER PORT 1 Rp1.212.000
5 14151-98L00-000 GASKET, EXHAUST COVER 4 Rp95.500
6 14171-98L00-000 COVER, EXHAUST UPPER STBD 1 Rp733.000
7 14181-98L01-000
SUB: 14181-98L00-000		 GASKET, EXH UPPER COVER STBD 1 Rp75.000
8 14172-98L00-000 COVER, EXHAUST UPPER PORT 1 Rp733.000
9 14182-98L01-000
SUB: 14182-98L00-000		 GASKET, EXH UPPER COVER PORT 1 Rp79.500
10 09116-06228-000 BOLT (6X20) 2 Rp37.000
11 14111-98L01-000
SUB: 14111-98L00-000		 PIPE, EXHAUST INNER 2 Rp1.581.500
12 09280-00049-000 O RING (D:3.5,ID:99.6) 2 Rp101.000
13 09280-55001-000 O RING (D:3.5,ID:54.4) 2 Rp40.000
14 01550-0620C-000 BOLT 12 Rp5.500
15 01550-0625C-000 BOLT 14 Rp14.500
16 14112-98L00-000 CUSHION, EXH PIPE 4 Rp102.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
