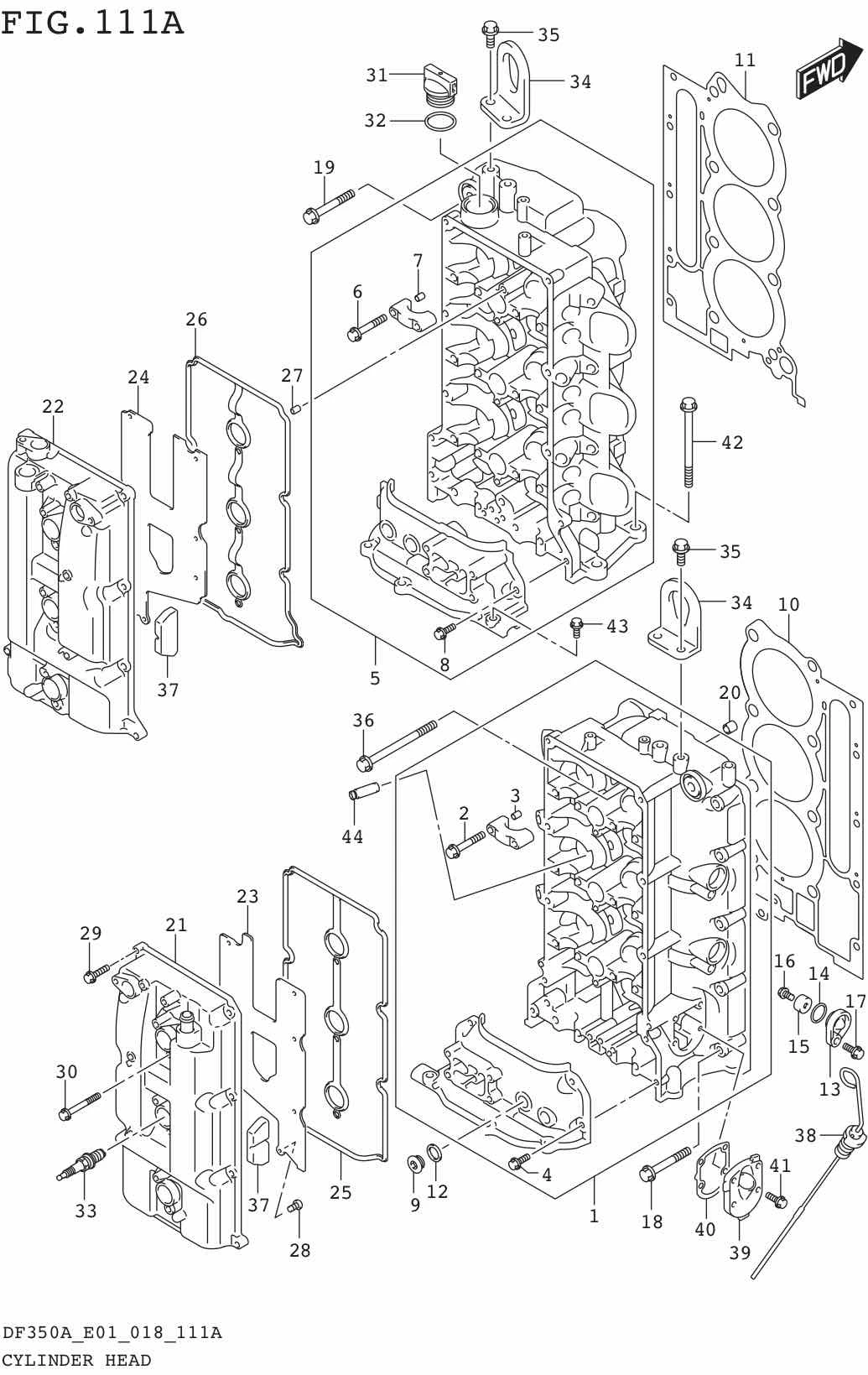

FIG.111A CYLINDER HEAD

FIG.111A CYLINDER HEAD
No No. Part Description Qty Price Per Pcs Remarks
1 11101-98L20-000
SUB: 11101-98L00-000		 HEAD ASSY, CYLINDER STBD 1 Rp18.963.500
2 09103-06266-000 .BOLT (6X40) 16 Rp14.000
3 09206-08001-000 .PIN (8X11) 14 Rp5.500
4 01547-0620B-000
SUB: 01547-06207-000		 .BOLT 4 Rp6.500
5 11103-98L20-000
SUB: 11103-98L00-000		 HEAD ASSY, CYLINDER PORT 1 Rp18.103.500
6 09103-06266-000 .BOLT (6X40) 16 Rp14.000
7 09206-08001-000 .PIN (8X11) 14 Rp5.500
8 01547-0620B-000
SUB: 01547-06207-000		 .BOLT 2 Rp6.500
9 11116-93J01-000 PLUG 4 Rp27.000
10 11141-98L00-000 GASKET, CYL HEAD STBD 1 Rp892.500
11 11142-98L00-000 GASKET, CYL HEAD PORT 1 Rp892.500
12 09168-16009-000 GASKET (16X22X0.8) 4 Rp15.500
13 11261-93J00-000 COVER, PROTECTION ANODE 4 Rp132.500
14 09280-22019-000 O RING (D:1.9,ID:21.8) 4 Rp15.500
15 55321-87J01-000 ANODE, PROTECTION 4 Rp79.500
16 09103-06281-000 BOLT (6X14) 4 Rp20.500
17 01550-0820C-000 BOLT 4 Rp17.500
18 01550-08607-000 BOLT 6 Rp38.000
19 01550-08607-000 BOLT 5 Rp38.000
20 09206-15001-000 PIN (12.4X15X17) 4 Rp37.000
21 DISCONTINUE
SUB: 11170-93J01-000		 COVER, CYL HEAD STBD 1 -
22 11180-98L00-000 COVER, CYLINDER HEAD PORT 1 Rp2.333.500
23 DISCONTINUE
SUB: 11173-93J00-000		 PLATE, BREATHER STBD 1 -
24 DISCONTINUE
SUB: 11183-93J00-000		 PLATE, BREATHER PORT 1 -
25 11179-93J00-000 GASKET, CYL HEAD COVER STBD 1 Rp200.500
26 11189-93J00-000 GASKET, CYL HEAD COVER PORT 1 Rp189.500
27 09206-08001-000 PIN (8X11) 1 Rp5.500
28 02142-0612A-000 SCREW 14 Rp4.000
29 01547-0625C-000 BOLT 16 Rp13.000
30 01547-0650A-000
SUB: 01547-06507-000		 BOLT 6 Rp7.000
31 11382-93J00-000 CAP, OIL FILLER 1 Rp52.000
32 09280-26006-000 O RING (D:3.1,ID:26.4) 1 Rp16.500
33 09482-00642-000 SPARK PLUG (ILZKR7D8) 6 Rp467.500 NGK
34 11291-98L00-000 HOOK, ENGINE 2 Rp106.000
35 01550-0820C-000 BOLT 4 Rp17.500
36 11119-98L00-000 BOLT, CYLINDER HEAD 16 Rp67.500
37 11186-15501-000 SEPARATOR, OILBREATHER 2 Rp41.500
38 16910-98L00-000 GAUGE, OIL LEVEL 1 Rp241.000
39 16931-98L00-000 GUIDE, OIL LEVEL GAUGE 1 Rp310.000
40 16941-98L00-000 GASKET, OIL LEVEL GAUGE GUIDE 1 Rp33.000
41 01550-0625C-000 BOLT 4 Rp14.500
42 09116-10146-000 BOLT (10X195) 2 Rp227.000
43 01550-0830C-000 BOLT 6 Rp19.000
44 11115-98L00-001 GUIDE, VALVE (OS:0.5) 24 Rp291.500 OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
