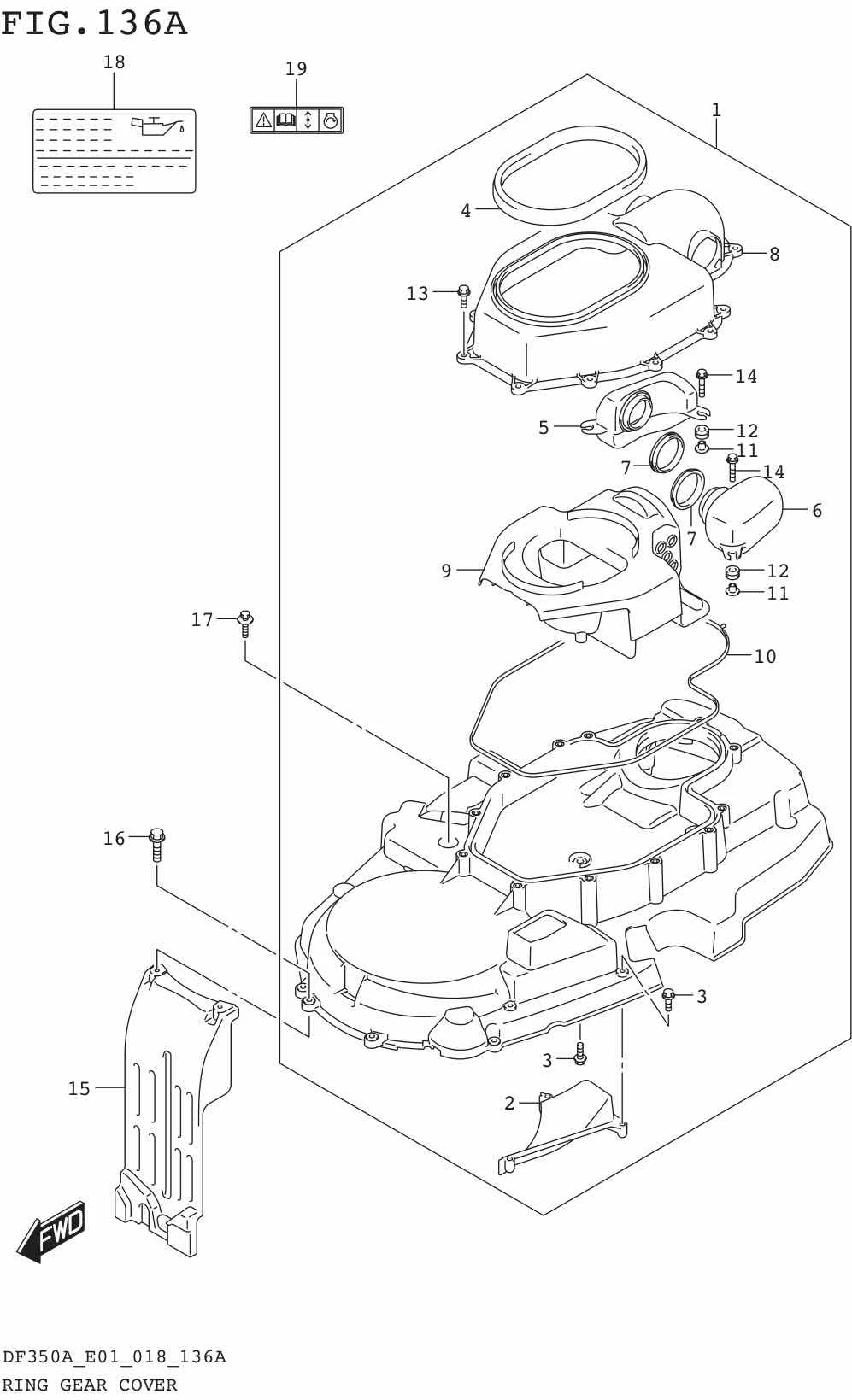

FIG.136A RING GEAR COVER

FIG.136A RING GEAR COVER
No No. Part Description Qty Price Per Pcs Remarks
1 11510-98L01-000 COVER, RING GEAR 1 Rp3.815.500
2 DISCONTINUE
SUB: 11514-98J00-000		 .PLATE, RING GEAR COVER 1 -
3 11517-98J00-000 .SCREW 6 Rp18.500
4 11531-98L00-000 .SEAL, SILENCER UPPER 1 Rp230.000
5 13761-98L00-000 .RESONATOR, STBD 1 Rp242.500
6 13762-98L00-000 .RESONATOR, PORT 1 Rp242.500
7 13766-98L00-000 .GROMMET, RESONATOR 2 Rp39.000
8 13811-98L00-000 .SILENCER, UPPER COVER 1 Rp792.500
9 13812-98L00-000 .SILENCER, INNER 1 Rp573.000
10 13851-98L00-000 .SEAL, SILENCER 1 Rp376.000
11 09169-06062-000 .WASHER 4 Rp16.500
12 09320-09016-000 .CUSHION 4 Rp4.000
13 01550-0620C-000 .BOLT 8 Rp5.500
14 01550-0630C-000 .BOLT 4 Rp15.000
15 11522-98L01-000 COVER, RING GEAR FRONT 1 Rp604.500
16 01550-0625C-000 BOLT 4 Rp14.500
17 09116-06215-000 BOLT (6X30) 4 Rp21.000
18 61494-93J00-000 LABEL, OIL & CLEARANCE 1 Rp33.000
19 69711-93E11-000
SUB: 69711-93E10-000		 LABEL, S.I.G.P. 1 Rp39.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
