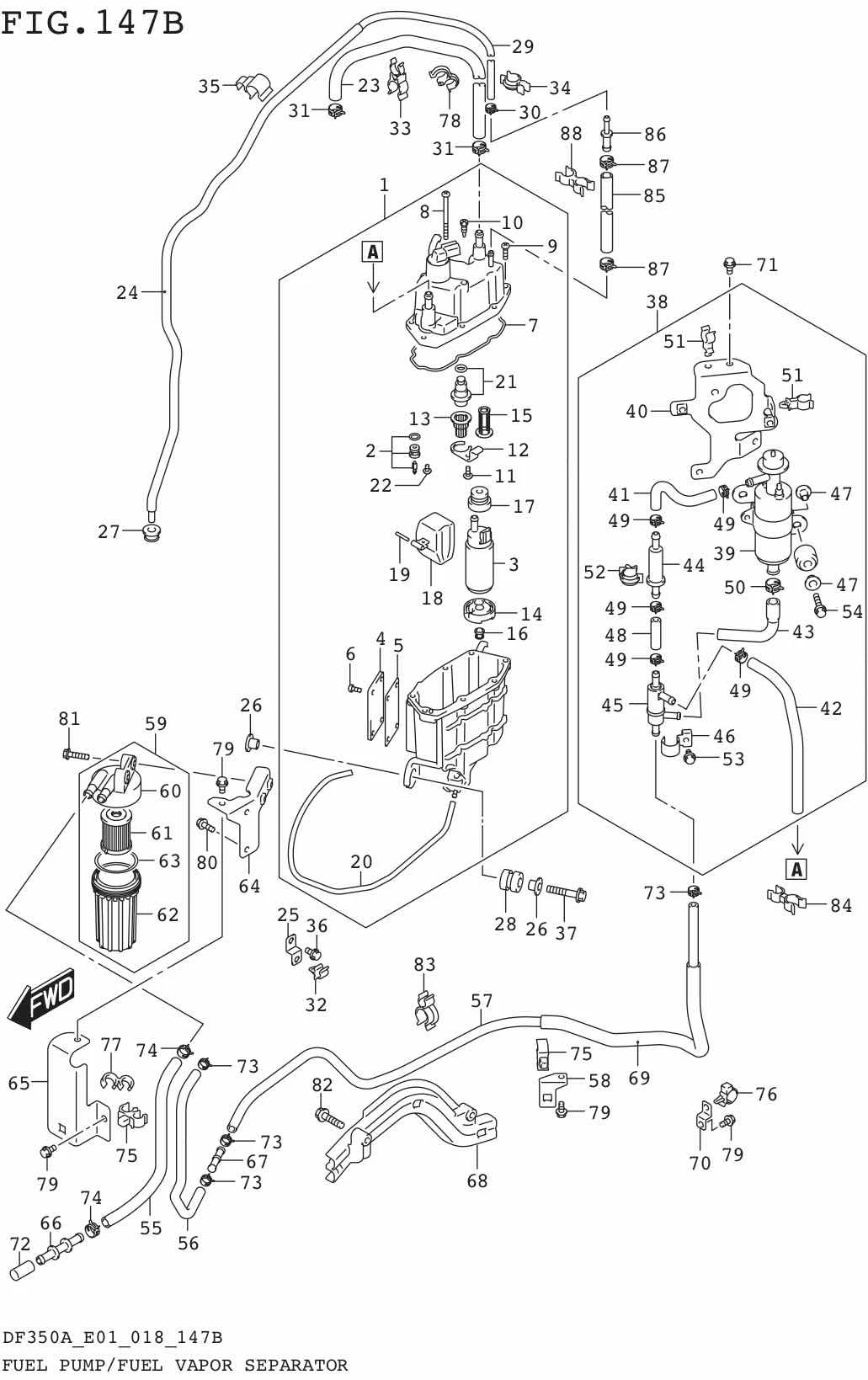

FIG.147B FUEL PUMP/FUEL VAPOR SEPARATOR (DF350A:FROM VIN.811875)

FIG.147B FUEL PUMP/FUEL VAPOR SEPARATOR (DF350A:FROM VIN.811875)
No No. Part Description Qty Price Per Pcs Remarks
1 15600-98L20-000 SEPARATOR ASSY, FUEL VAPOR 1 Rp6.207.500
2 13370-93J10-000 .VALVE ASSY, NEEDLE 1 Rp494.500
3 15200-98L00-000 .PUMP ASSY, FUEL (H) 1 Rp3.835.000
4 15612-98L00-000 .COVER 1 Rp117.500
5 15613-98L00-000 .GASKET 1 Rp128.500
6 15614-98L00-000 .SCREW 4 Rp35.500
7 15626-93J00-000 .GASKET, SEPARATOR 1 Rp115.000
8 DISCONTINUE
SUB: 15627-93J00-000		 .SCREW 1 -
9 15628-99E00-000 .SCREW (L:15) 6 Rp20.500
10 15629-99E10-000 .SCREW, DRAIN 2 Rp45.500
11 15631-98L00-000 .SCREW 1 Rp20.500
12 15638-98L00-000 .PLATE 1 Rp75.500
13 15639-98L00-000 .COVER 1 Rp60.000
14 15641-98L00-000 .SPACER 1 Rp138.500
15 15642-88L10-000 .FILTER 1 Rp188.500
16 15642-90J00-000 .FILTER 1 Rp83.000
17 15647-98L00-000 .BUSH, FUEL PUMP 1 Rp139.000
18 DISCONTINUE
SUB: 15650-93J00-000		 .FLOAT ASSY 1 -
19 15654-99E00-000 .PIN 1 Rp20.500
20 15683-98L00-000 .HOSE, DRAIN 1 Rp58.500
21 15760-98L00-000 .REGULATOR, FUEL PRESSURE 1 Rp1.545.500
22 DISCONTINUE
SUB: 02142-0408B-000		 .SCREW 1 -
23 15681-98L00-000 HOSE, FUEL (V/S TO DLVY) 1 Rp520.000
24 18498-98L20-000 PROTECTOR, EVAP HOSE 1 Rp32.500
25 36617-93J10-000 BRACKET, HOSE CLAMP 1 Rp17.000
26 09169-08042-000 WASHER 6 Rp38.000
27 09320-08086-000 CUSHION 1 Rp21.000
28 DISCONTINUE
SUB: 09320-12072-000		 CUSHION 3 -
29 09352-50003-06A HOSE (5X8.2X1060) 1 Rp510.500
30 09401-08412-000 CLIP 1 Rp20.000
31 09401-11425-000 CLIP 2 Rp35.500
32 DISCONTINUE
SUB: 09403-07323-000		 CLAMP 1 -
33 DISCONTINUE
SUB: 09408-00056-000		 CLIP 1 -
34 DISCONTINUE
SUB: 09408-00142-000		 CLIP 1 -
35 09408-00198-000 CLAMP 3 Rp19.500
36 01550-0612C-000 BOLT 1 Rp19.500
37 01550-0840C-000 BOLT 3 Rp19.000
38 15100-98L00-000 PUMP SET, FUEL (L) 1 Rp9.462.000
39 15100-94900-000 .PUMP ASSY, FUEL (L) 1 Rp5.974.000
40 15116-98L00-000 .BRACKET, FUEL PUMP (L) 1 Rp201.500
41 15632-98L00-000 .HOSE, FUEL (PUMP TO FILTER) 1 Rp163.000
42 15635-98L00-000 .HOSE, FUEL (VALVE TO VST) 1 Rp136.500
43 15637-98L00-000 .HOSE, FUEL (VALVE TO PUMP) 1 Rp163.000
44 15643-98L00-000 .FILTER, FUEL (L) 1 Rp330.000
45 15645-93J10-000 .VALVE, CHECK 1 Rp701.500
46 15674-98L00-000 .CLIP, CHECK VALVE 1 Rp74.000
47 09169-06062-000 .WASHER 4 Rp16.500
48 09343-70503-040 .HOSE (7X12X40) 1 Rp28.500 FILTER TO VALVE
49 09401-11423-000 .CLIP 7 Rp19.500
50 09401-15414-000 .CLIP 1 Rp19.000
51 09403-13310-000 .CLAMP 2 Rp20.000
52 DISCONTINUE
SUB: 09403-16307-000		 .CLAMP 1 -
53 01550-0612C-000 .BOLT 1 Rp19.500
54 01550-0630C-000 .BOLT 2 Rp15.000
55 15191-98L10-000 HOSE, FUEL (CONN TO FILTER) 1 Rp291.500
56 15192-98L00-000 HOSE, FUEL (FILTER TO 2WAY) 1 Rp221.000
57 15193-98L00-000 HOSE, FUEL (2WAY TO 2WAY) 1 Rp473.000
58 15198-98L00-000 BRACKET, FUEL HOSE 1 Rp41.500
59 15410-98L00-000 FILTER, FUEL (L) 1 Rp1.246.500
60 15411-93J10-000 .CAP, FUEL FILTER 1 Rp439.500
61 15412-93J10-000 .FILTER ASSY, FUEL 1 Rp175.500
62 15413-98L00-000 .CASE ASSY, FUEL FILTER 1 Rp576.500
63 15415-93J10-000 .SEAL, FUEL FILTER NO.1 1 Rp103.500
64 15421-98L00-000 BRACKET, FUEL FILTER (L) 1 Rp97.500
65 15423-98L00-000 GUARD, FUEL HOSE 1 Rp104.000
66 15830-98J01-000 JOINT, FUEL HOSE 1 Rp282.000
67 15831-96J00-000 UNION, 2 WAY FUEL HOSE 1 Rp69.500
68 15852-98L00-000 GUIDE, FUEL HOSE 1 Rp288.000
69 DISCONTINUE
SUB: 18498-99E10-000		 PROTECTOR, FUEL HOSE (610) 1 - L:610->450
70 36617-93J10-000 BRACKET, FUEL HOSE 1 Rp17.000
71 09103-06267-000 BOLT (6X18) 2 Rp16.000
72 09251-09005-000 CAP 1 Rp20.500
73 09401-11423-000 CLIP 4 Rp19.500
74 09401-13423-000 CLIP 2 Rp24.000
75 DISCONTINUE
SUB: 09403-13308-000		 CLAMP 2 -
76 09403-17403-000 CLAMP 1 Rp20.000
77 DISCONTINUE
SUB: 09408-00121-000		 CLAMP 1 -
78 09408-00155-000 CLIP 1 Rp23.000
79 01550-0612C-000 BOLT 4 Rp19.500
80 01550-0616C-000 BOLT 2 Rp3.500
81 01550-0625C-000 BOLT 2 Rp14.500
82 01550-0630C-000 BOLT 2 Rp15.000
83 DISCONTINUE
SUB: 09408-00142-000		 CLIP 1 -
84 DISCONTINUE
SUB: 09408-00054-000		 CLAMP 1 -
85 09343-70503-600 HOSE (7X12X600) 1 Rp304.000 L:600->240
86 15695-98L00-000 UNION, EVAPORATION 1 Rp77.000
87 09401-11423-000 CLIP 2 Rp19.500
88 DISCONTINUE
SUB: 09408-00050-000		 CLIP 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
