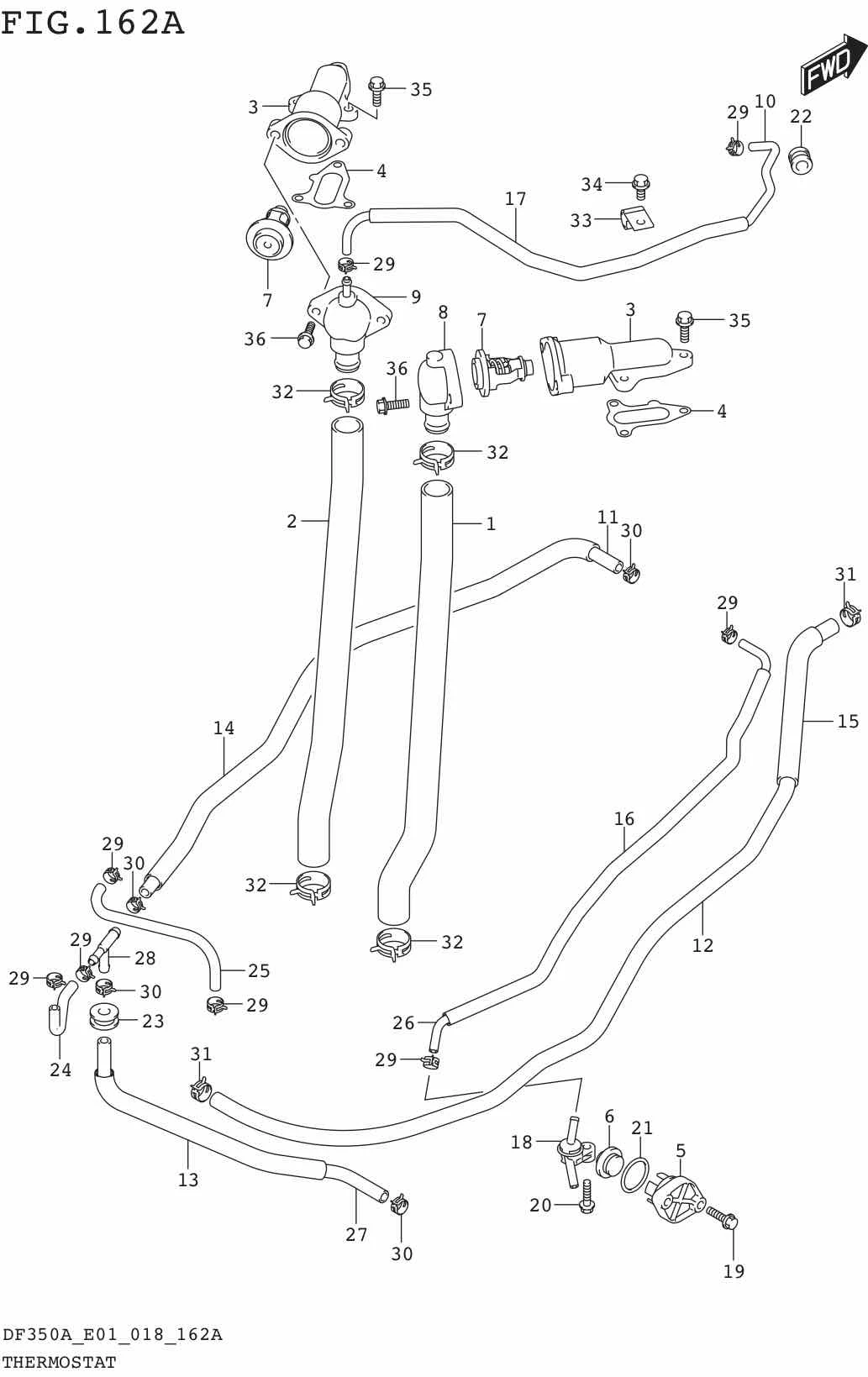

FIG.162A THERMOSTAT (DF350A)

FIG.162A THERMOSTAT (DF350A)
No No. Part Description Qty Price Per Pcs Remarks
1 11196-98L00-000 HOSE, WATER RETURN STBD 1 Rp121.000
2 11197-98L00-000 HOSE, WATER RETURN PORT 1 Rp121.000
3 17581-98L00-000 PIPE, WATER OUTLET 2 Rp1.099.500
4 17582-93J00-000 GASKET, WTR OUTLET PIPE 2 Rp24.500
5-1 17611-90J00-000
SUB: 17611-90J00-YAY		 COVER, WTR PRESSURE VALVE (BLACK) 1 Rp342.000
5-2 17611-90J00-000
SUB: 17611-90J00-Y5S		 COVER, WTR PRESSURE VALVE (WHITE) 1 Rp342.000
6 17660-98L00-000 VALVE WATER PRESSURE 1 Rp112.000
7-1 17670-98L00-000 THERMOSTAT, WATER 55 DEG 2 Rp823.500
7-2 17670-98L10-000 THERMOSTAT, WATER 70 DEG 2 Rp717.500 OPT
8 17680-98L00-000 COVER, THERMOSTAT STBD 1 Rp488.500
9 17680-98L10-000 COVER, THERMOSTAT PORT 1 Rp529.500
10 17712-98L00-000 HOSE, WATER (CASE JKT TO THERMO) 1 Rp93.500
11 17714-98L00-000 HOSE, WATER (3WAY TO CASE JKT) 1 Rp98.500
12 17915-98L00-000 HOSE, WATER FLUSH 1 Rp121.000
13 DISCONTINUE
SUB: 18498-99E10-000		 PROTECTOR, WATER HOSE (610) 1 - L:610->320
14 DISCONTINUE
SUB: 18498-99E10-000		 PROTECTOR, WATER HOSE (610) 1 - L:610->540
15 18498-99E20-000 PROTECTOR, WATER HOSE (450) 1 Rp64.000 L:450->160
16 18498-98L00-000 PROTECTOR, WATER HOSE (520) 1 Rp38.500
17 DISCONTINUE
SUB: 18498-87JC0-000		 PROTECTOR, WATER HOSE (450) 1 - L:450->390
18 51170-98L00-000 BRACKET WATER INDICATOR 1 Rp82.000
19 09116-06121-000 BOLT (6X25) 2 Rp18.000
20 09116-06121-000 BOLT (6X25) 1 Rp18.000
21 09280-26006-000 O RING (D:3.1,ID:26.4) 1 Rp16.500
22 09320-09059-000
SUB: 09320-09039-000		 CUSHION 1 Rp26.000
23 09320-10503-000 CUSHION 1 Rp15.000
24 09352-50006-600
SUB: 09352-50903-600		 HOSE (5X9X600) 1 Rp46.000 3WAY TO VST L:600->110
25 09352-50006-600
SUB: 09352-50903-600		 HOSE (5X9X600) 1 Rp46.000 VST TO E/H COVER L:600->170
26 09352-50006-600
SUB: 09352-50903-600		 HOSE (5X9X600) 1 Rp46.000 CASE JKT TO W/I L:600->580
27 09352-70119-600
SUB: 09352-70113-600		 HOSE (7X11X600) 1 Rp86.500 OILPAN TO 3WAY L:600->400
28 09367-08005-000 3 WAY 1 Rp30.000
29 09401-08413-000 CLIP 8 Rp19.500
30 09401-11424-000 CLIP 4 Rp16.000
31 09401-13425-000 CLIP 2 Rp28.000
32 09401-25406-000 CLIP 4 Rp35.000
33 09403-13413-000
SUB: 09403-13408-000		 CLAMP 2 Rp41.500
34 01550-0612C-000 BOLT 2 Rp19.500
35 01550-0620C-000 BOLT 6 Rp5.500
36 01550-0620C-000 BOLT 4 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
