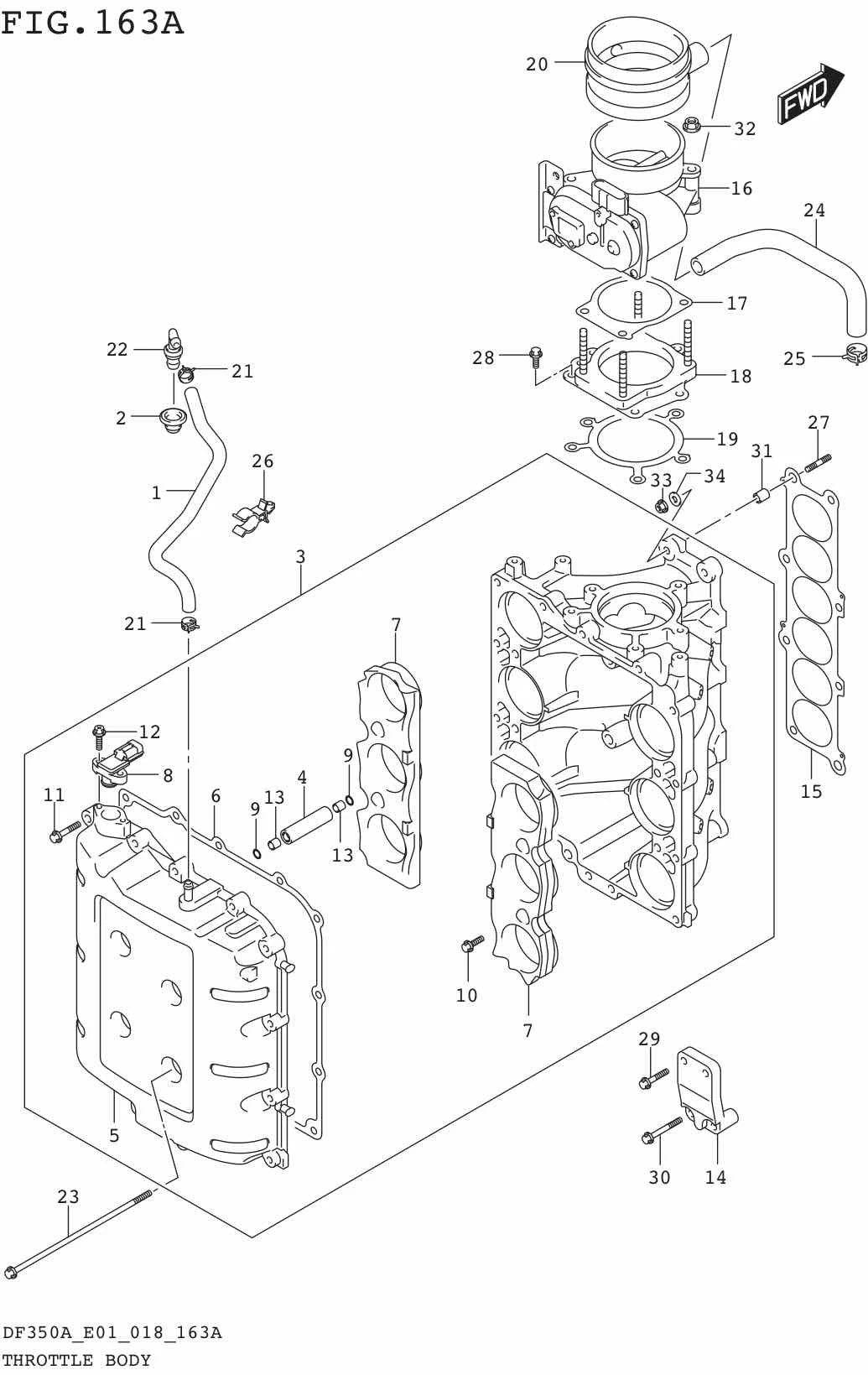

FIG.163A THROTTLE BODY

FIG.163A THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 DISCONTINUE
SUB: 11193-98J00-000		 HOSE, PCV 1 -
2 11198M79F00-000
SUB: 11198-58B00-000		 SEAL, PCV VALVE 1 Rp16.500
3 13100-98L00-000 COLLECTOR ASSY 1 Rp11.617.500
4 DISCONTINUE
SUB: 13137-98J00-000		 .SPACER, COLLECTOR 4 -
5 13140-98L00-000 .COVER, COLLECTOR 1 Rp3.351.500
6 13147-98J00-000 .GASKET, COLLECTOR COVER 1 Rp550.000
7 DISCONTINUE
SUB: 13180-98J00-000		 .FUNNEL, COLLECTOR 2 -
8 18590-68H00-000 .SENSOR, MAP 1 Rp1.998.500
9 09280-10009-000 .O RING (D:1.3,ID:9.8) 8 Rp11.500
10 DISCONTINUE
SUB: 01550-0816C-000		 .BOLT 4 -
11 01550-0835C-000 .BOLT 10 Rp19.000
12 02162-05207-000 .SCREW 2 Rp12.500
13 04211-11129-000 .PIN 8 Rp2.000
14 DISCONTINUE
SUB: 13134-98J00-000		 BRACKET, COLLECTOR 1 -
15 13139-98J01-000 GASKET, COLLECTOR 1 Rp325.500
16 13300-98L00-000 BODY ASSY, THROTTLE 1 Rp6.546.000
17 13343-98J20-000
SUB: 13343-98J10-000		 GASKET, THROTTLE BODY 1 Rp523.000
18 13315-98J00-000 DAMPER, THROTTLE BODY 1 Rp865.000
19 13421-98L00-000 GASKET, THROTTLE BODY 1 Rp76.500
20 13813-98L00-000 GROMMET, THROTTLE BODY 1 Rp302.500
21 09401-13423-000 CLIP 2 Rp24.000
22 18118-93J00-000 VALVE, PCV 1 Rp152.500
23 09103-08370-000 BOLT (8X250) 6 Rp81.000
24 11174-98L00-000 HOSE, BREATHER 1 Rp125.500
25 09401-18410-000 CLIP 1 Rp27.000
26 09403-13310-000 CLAMP 1 Rp20.000
27 01421-08357-000 STUD BOLT 2 Rp27.000
28 DISCONTINUE
SUB: 01550-0816C-000		 BOLT 5 -
29 01550-0835C-000 BOLT 2 Rp19.000
30 01550-08607-000 BOLT 2 Rp38.000
31 04211-11129-000 PIN 2 Rp2.000
32 09159-08136-000 NUT 4 Rp16.000
33 08316-1008C-000 NUT 2 Rp25.000
34 DISCONTINUE
SUB: 09160-08161-000		 WASHER (8.2X23X3.2) 2 -

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
