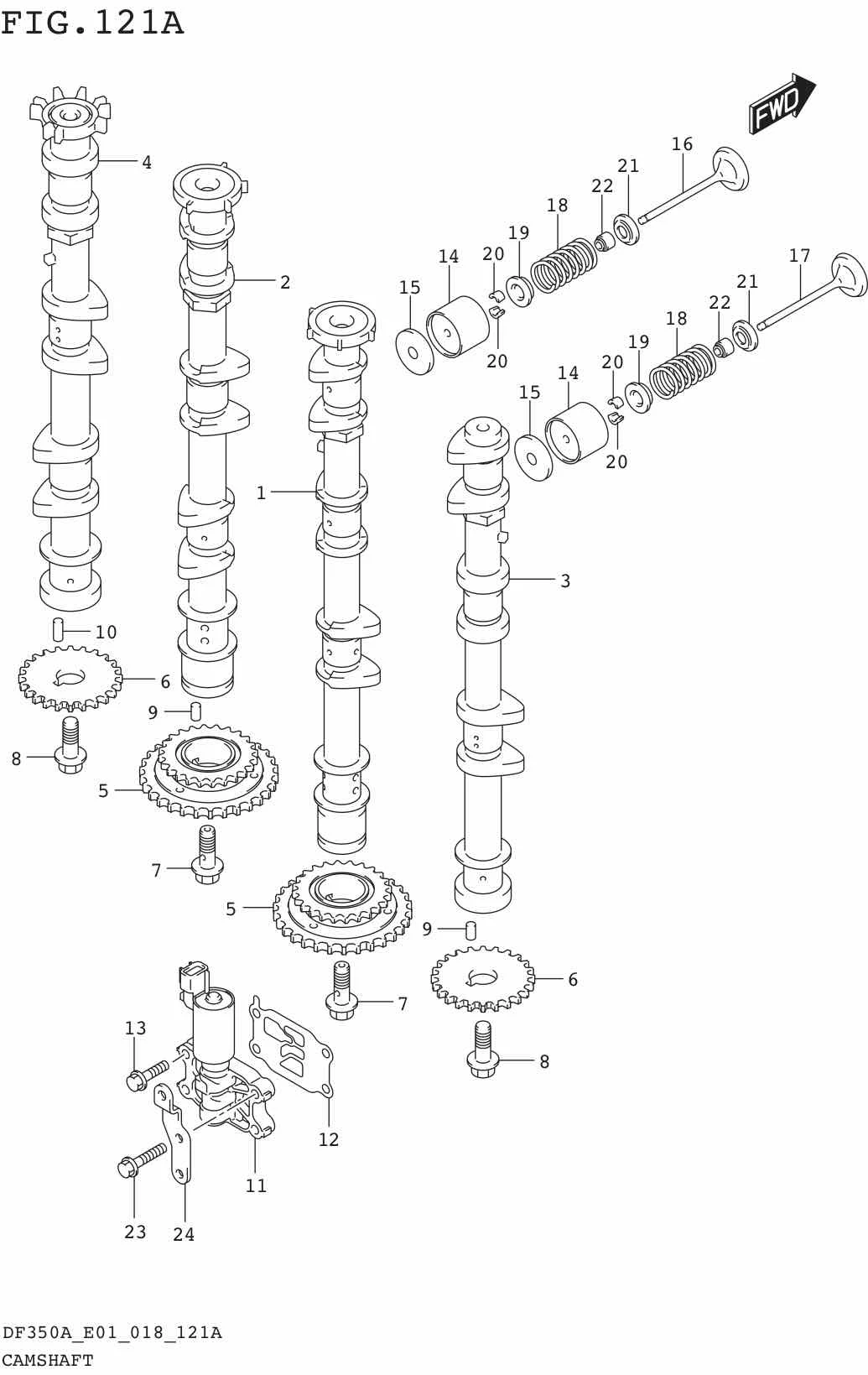

FIG.121A CAMSHAFT (DF350A)

FIG.121A CAMSHAFT (DF350A)
No No. Part Description Qty Price Per Pcs Remarks
1 12701-98L00-000 CAMSHAFT, INTAKE STBD 1 Rp3.727.000
2 12705-98L00-000 CAMSHAFT, INTAKE PORT 1 Rp3.727.000
3 12721-98L00-000 CAMSHAFT, EXH STBD 1 Rp3.946.500
4 12729-98L00-000 CAMSHAFT, EXH PORT 1 Rp4.165.500
5 12740-98L00-000 SPROCKET ASSY, CAM TIMING 2 Rp3.320.000
6 12748-93J00-000 SPROCKET, EXH CAMSHAFT (NT:22) 2 Rp234.000
7 DISCONTINUE
SUB: 12753-93J00-000		 BOLT, INTAKE CAMSHAFT 2 -
8 12749-93J00-000 BOLT, CAMSHAFT EXHAUST 2 Rp27.000
9 09202-05032-000 PIN (5X12) 3 Rp12.000
10 09261-05006-000 PIN (5X18) 1 Rp13.500
11 16550-93J00-000 VALVE, OIL CONTROL 2 Rp1.786.000
12 16555-93J10-000
SUB: 16555-93J00-000		 GASKET, VALVE 2 Rp149.500
13 01550-0625C-000 BOLT 6 Rp14.500
14 12891-93J10-000
SUB: 12891-93J00-000		 TAPPET 24 Rp296.500
15-15 12892-93J10-253
SUB: 12892-93J00-253		 SHIM, TAPPET (T:2.525) 0 Rp93.000
15-20 12892-93J10-265
SUB: 12892-93J00-265		 SHIM, TAPPET (T:2.650) 0 Rp91.000
15-19 12892-93J10-263
SUB: 12892-93J00-263		 SHIM, TAPPET (T:2.625) 0 Rp96.000
15-21 12892-93J10-268
SUB: 12892-93J00-268		 SHIM, TAPPET (T:2.675) 0 Rp92.500
15-22 12892-93J10-270
SUB: 12892-93J00-270		 SHIM, TAPPET (T:2.700) 0 Rp92.500
15-23 12892-93J10-273
SUB: 12892-93J00-273		 SHIM, TAPPET (T:2.725) 0 Rp100.000
15-24 12892-93J00-275 SHIM, TAPPET (T:2.750) 0 Rp63.000
15-25 12892-93J00-278 SHIM, TAPPET (T:2.775) 0 Rp87.500
15-26 12892-93J10-280
SUB: 12892-93J00-280		 SHIM, TAPPET (T:2.800) 0 Rp103.000
15-27 12892-93J00-283 SHIM, TAPPET (T:2.825) 0 Rp58.500
15-28 12892-93J00-285 SHIM, TAPPET (T:2.850) 0 Rp58.500
15-29 DISCONTINUE
SUB: 12892-93J00-288		 SHIM, TAPPET (T:2.875) 0 -
15-30 12892-93J00-290 SHIM, TAPPET (T:2.900) 0 Rp63.000
15-31 12892-93J00-293 SHIM, TAPPET (T:2.925) 0 Rp63.000
15-32 12892-93J00-295 SHIM, TAPPET (T:2.950) 0 Rp63.000
15-33 12892-93J00-298 SHIM, TAPPET (T:2.975) 0 Rp58.500
15-34 12892-93J00-300 SHIM, TAPPET (T:3.000) 0 Rp63.000
15-17 12892-93J10-258
SUB: 12892-93J00-258		 SHIM, TAPPET (T:2.575) 0 Rp93.000
15-1 12892-93J10-218
SUB: 12892-93J00-218		 SHIM, TAPPET (T:2.175) 0 Rp95.500
15-2 12892-93J10-220
SUB: 12892-93J00-220		 SHIM, TAPPET (T:2.200) 0 Rp100.000
15-3 12892-93J00-223 SHIM, TAPPET (T:2.225) 0 Rp63.000
15-4 12892-93J10-225
SUB: 12892-93J00-225		 SHIM, TAPPET (T:2.250) 0 Rp100.000
15-5 12892-93J10-228
SUB: 12892-93J00-228		 SHIM, TAPPET (T:2.275) 0 Rp100.000
15-6 12892-93J10-230
SUB: 12892-93J00-230		 SHIM, TAPPET (T:2.300) 0 Rp92.500
15-7 12892-93J10-233
SUB: 12892-93J00-233		 SHIM, TAPPET (T:2.325) 0 Rp94.000
15-8 12892-93J10-235
SUB: 12892-93J00-235		 SHIM, TAPPET (T:2.350) 0 Rp94.000
15-10 12892-93J10-240
SUB: 12892-93J00-240		 SHIM, TAPPET (T:2.400) 0 Rp101.500
15-11 12892-93J10-243
SUB: 12892-93J00-243		 SHIM, TAPPET (T:2.425) 0 Rp96.000
15-12 12892-93J10-245
SUB: 12892-93J00-245		 SHIM, TAPPET (T:2.450) 0 Rp100.000
15-13 12892-93J00-248 SHIM, TAPPET (T:2.475) 0 Rp63.000
15-14 12892-93J10-250
SUB: 12892-93J00-250		 SHIM, TAPPET (T:2.500) 0 Rp93.000
15-16 12892-93J10-255
SUB: 12892-93J00-255		 SHIM, TAPPET (T:2.550) 0 Rp95.500
15-18 12892-93J10-260
SUB: 12892-93J00-260		 SHIM, TAPPET (T:2.600) 0 Rp98.000
15-9 12892-93J10-238
SUB: 12892-93J00-238		 SHIM, TAPPET (T:2.375) 0 Rp94.000
16 12911-98L00-000 VALVE, INTAKE 12 Rp249.000
17 12915-98L00-000 VALVE, EXHAUST 12 Rp375.500
18 12921-98L00-000 SPRING, VALVE 24 Rp99.000
19 12931-78G00-000 RETAINER, VALVE SPRING 24 Rp35.500
20 12932-24400-000 COTTER, VALVE 48 Rp13.000
21 12933-69G10-000 SEAT, VALVE SPRING 24 Rp24.000
22 09289-05013-000
SUB: 09289-05012-000		 OIL SEAL (5.5X11.5X9.3) 24 Rp16.500
23 01550-0630C-000 BOLT 2 Rp15.000
24 36617-98L40-000 BRACKET, HARNESS 1 Rp56.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
