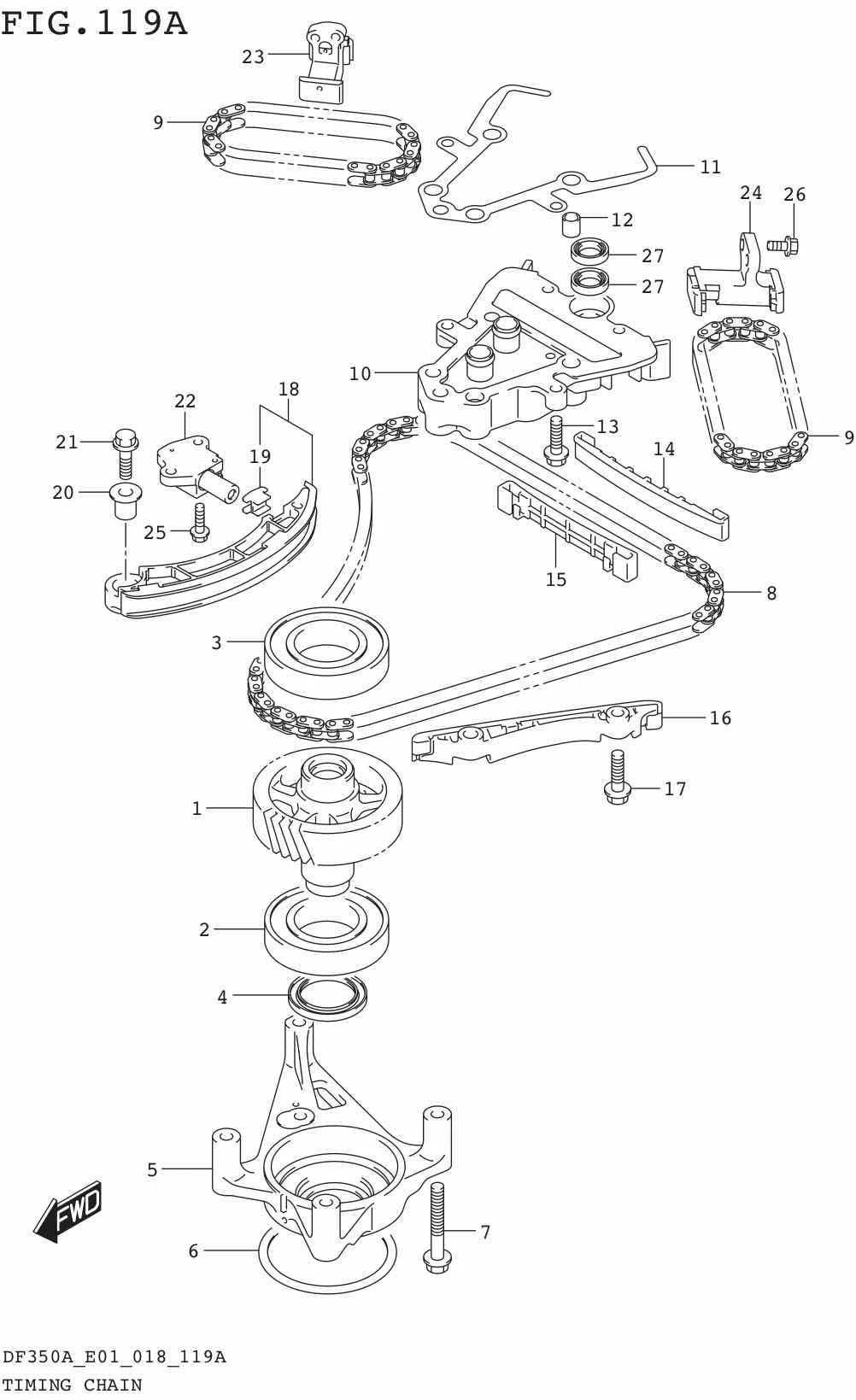

FIG.119A TIMING CHAIN

FIG.119A TIMING CHAIN
No No. Part Description Qty Price Per Pcs Remarks
1 12730-98J02-000 GEAR, DRIVEN (NT:40) 1 Rp2.384.000
2 09262-40021-000
SUB: 09262-40018-000		 BEARING (40X80X18) 1 Rp616.500 LOWER
3 09262-40017-000 BEARING (40X80X18) 1 Rp567.000 UPPER
4 09283-32044-000 OIL SEAL (32X47X6) 1 Rp121.500
5 12734-98L00-000 HOLDER, DRIVEN GEAR 1 Rp636.000
6 09280-70012-000 O RING (D:5.7,ID:69.6) 1 Rp144.000
7 01550-0855A-000 BOLT 4 Rp3.500
8 12761-98L00-000 CHAIN, TIMING 1ST 1 Rp960.500
9 12762-93J00-000 CHAIN, TIMING 2ND 2 Rp333.000
10 12770-98L00-000 BASE, TIMING CHAIN GUIDE NO.1 1 Rp1.015.000
11 12778-98L00-000 GASKET, GUIDE BASE 1 Rp133.500
12 04211M13189-000
SUB: 04211-13149-000		 PIN 2 Rp9.000
13 01550-0830A-000 BOLT 2 Rp4.000
14 12771-93J00-000 SHOE, TIMING CHAIN UPPER 1 Rp182.000
15 12775-93J00-000 SHOE, TIMING CHAIN LOWER 1 Rp178.500
16 12772-98L00-000 GUIDE, TIMING CHAIN NO.2 1 Rp642.500
17 01550-0830A-000 BOLT 2 Rp4.000
18 12810-93J00-000 TENSIONER ASSY, TIMING CHAIN 1 Rp566.500
19 12813-73G00-000 .PAD, TIMING CHAIN TENSIONER 1 Rp33.000
20 12812-90J00-000 SPACER, TIMING CHAIN TENSIONER 1 Rp48.000
21 01550-0830A-000 BOLT 1 Rp4.000
22 12831-93J01-000 ADJUSTER ASSY, TENSIONER 1 Rp772.000
23 12832-93J00-000 TENSIONER ASSY, STBD 1 Rp941.500
24 12833-93J00-000 TENSIONER ASSY, PORT 1 Rp935.000
25 01550-0620A-000 BOLT 2 Rp3.500
26 01550-0620A-000 BOLT 4 Rp3.500
27 09282-17011-000 SEAL (16.5X28X6) 2 Rp106.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
