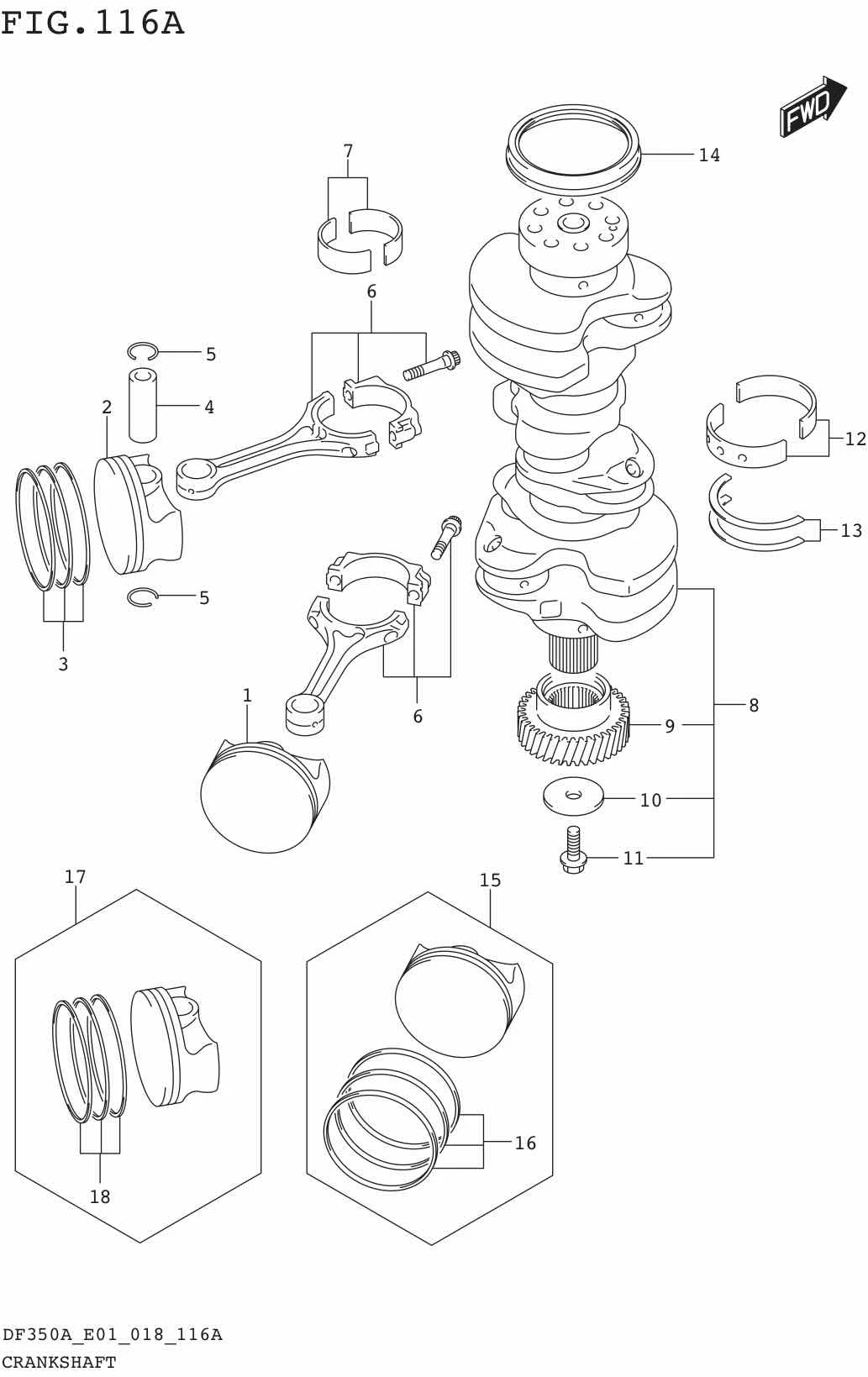

FIG.116A CRANKSHAFT (DF350A)

FIG.116A CRANKSHAFT (DF350A)
No No. Part Description Qty Price Per Pcs Remarks
1 12111-98L00-0B0 PISTON, STBD 3 Rp2.080.000
2 12121-98L00-0B0 PISTON, PORT 3 Rp2.080.000
3 12140-98J00-000 RING SET, PISTON 6 Rp570.000
4 12151-98L00-000 PIN, PISTON 6 Rp157.500
5 09381-22010-000 CIRCLIP 12 Rp14.500
6 12160-98L00-000 CONNROD ASSY 6 Rp1.518.500
7-1 12100-98810-0A0 BEARING SET, CONNROD 6 Rp201.000 GREEN
7-2 12100-98810-025 BEARING SET, CONNROD (US:0.25) 6 Rp241.000 OPT
8 12200-98L00-000 CRANKSHAFT ASSY 1 Rp27.439.500
9 12242-98J00-000 .GEAR, DRIVE (NT:32) 1 Rp1.298.500
10 09160-10104-000 .WASHER (10.5X50X3.2) 1 Rp26.000
11 01550-1025A-000 .BOLT 1 Rp3.500
12-10 12300-98840-0EA BEARING SET, CRANKSHAFT 4 Rp293.500 OPT US:0.25 RED/PINK
12-9 12300-98840-0DA BEARING SET, CRANKSHAFT 4 Rp293.500 OPT US:0.25 RED/BLUE
12-3 12340-98L01-0C0
SUB: 12340-98L00-0C0		 BEARING SET, CRANKSHAFT 4 Rp476.000 YELLOW
12-8 12300-98840-0CA BEARING SET, CRANKSHAFT 4 Rp293.500 OPT US:0.25 RED/YELLOW
12-7 12300-98840-0BA BEARING SET, CRANKSHAFT 4 Rp293.500 OPT US:0.25 RED
12-6 12300-98840-0AA BEARING SET, CRANKSHAFT 4 Rp293.500 OPT US:0.25 RED/BLACK
12-5 12340-98L01-0E0
SUB: 12340-98L00-0E0		 BEARING SET, CRANKSHAFT 4 Rp388.500 PINK
12-4 12340-98L01-0D0
SUB: 12340-98L00-0D0		 BEARING SET, CRANKSHAFT 4 Rp438.000 BLUE
12-2 12340-98L01-0B0
SUB: 12340-98L00-0B0		 BEARING SET, CRANKSHAFT 4 Rp477.000 NON
12-1 12340-98L00-0A0 BEARING SET, CRANKSHAFT 4 Rp293.500 BLACK
13-1 12300-98830-000 BEARING SET, CRANK THRUST 1 Rp800.500
13-2 12300-98830-012 BEARING SET, CRANK THRUST 1 Rp1.130.500 OPT OS:0.125
14 09283-91001-000 OIL SEAL (91X109X10) 1 Rp314.500
15 12101-98L00-050 PISTON SET, STBD (OS:0.50) 3 Rp1.722.500 OPT
16 12140-98J00-050 .RING SET, PISTON (OS:0.50) 3 Rp623.500 OPT
17 12102-98L00-050 PISTON SET, PORT (OS:0.50) 3 Rp1.722.500 OPT
18 12140-98J00-050 .RING SET, PISTON (OS:0.50) 3 Rp623.500 OPT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
