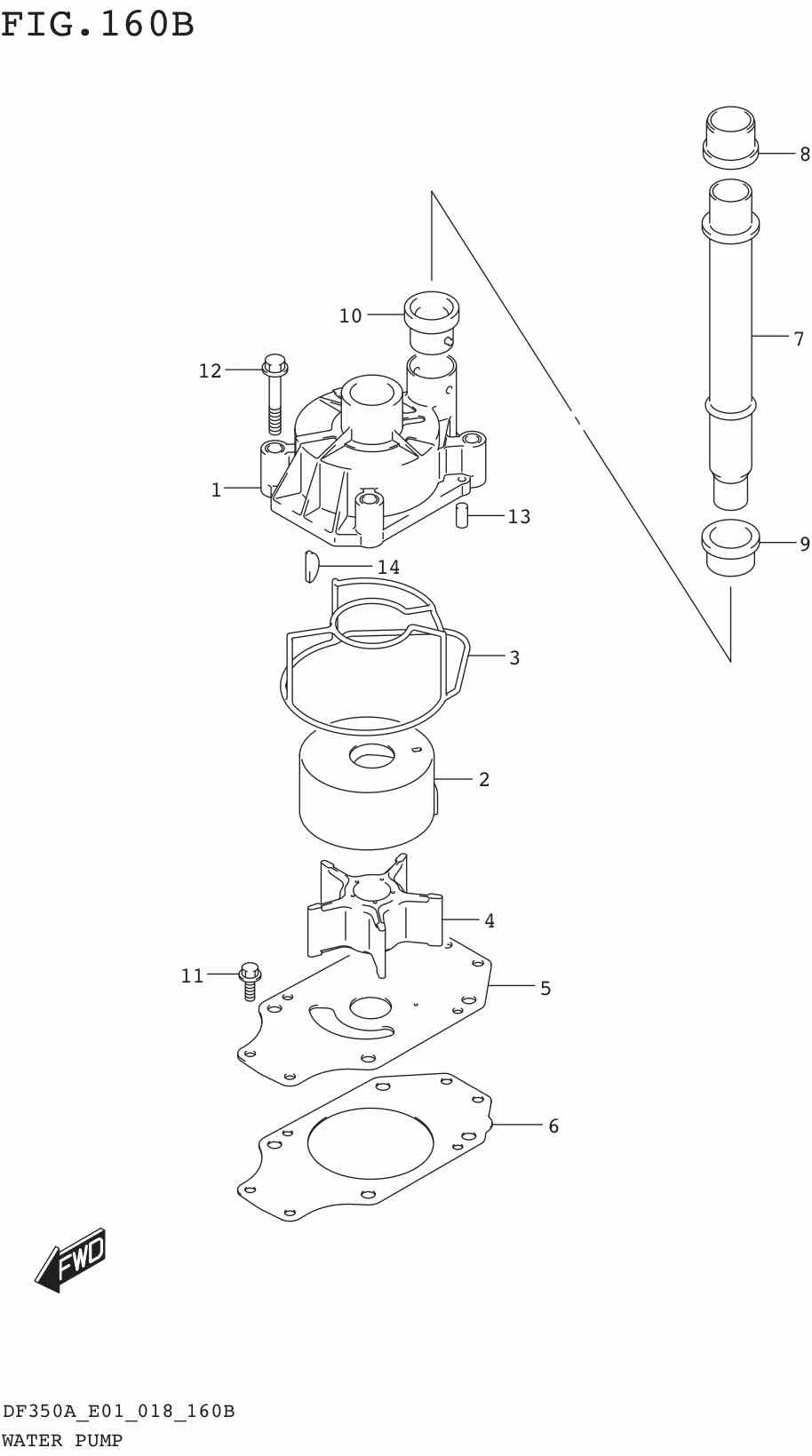

FIG.160B WATER PUMP (E40)

FIG.160B WATER PUMP (E40)
No No. Part Description Qty Price Per Pcs Remarks
1 17410-93J01-000 CASE, WATER PUMP 1 Rp605.000
2 17413-93J12-000 SLEEVE, CASE 1 Rp767.500
3 17416-93J01-000
SUB: 17416-93J00-000		 SEALING, CASE 1 Rp87.000
4 17461-93J02-000
SUB: 17461-93J00-000		 IMPELLER, WATER PUMP 1 Rp314.500
5 17471-98L10-000 PANEL, PUMP CASE UNDER 1 Rp420.000
6 17472-98L00-000 GASKET, PUMP CASE PANEL 1 Rp84.000
7-1 17560-98L00-000 TUBE, WATER (X) 1 Rp1.055.500 W/TRANSOM(X)
7-2 17560-98L10-000 TUBE, WATER (XX) 1 Rp1.199.500 W/TRANSOM(XX)
8 17562-98L00-000 BUSH, WATER TUBE UPPER 1 Rp60.000
9 17563-98L00-000 BUSH, WATER TUBE LOWER 1 Rp69.000
10 17564-93J01-000
SUB: 17564-93J00-000		 BUSH, WATER PUMP CASE 1 Rp32.500
11 29116-93J00-000 BOLT, PUMP CASE PANEL 4 Rp23.000
12 09116-08131-000 BOLT (8X45) 4 Rp40.500
13 09202-06031-000 PIN (6X12) 2 Rp21.500
14 09420-05009-000 KEY 1 Rp75.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
