BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT) FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

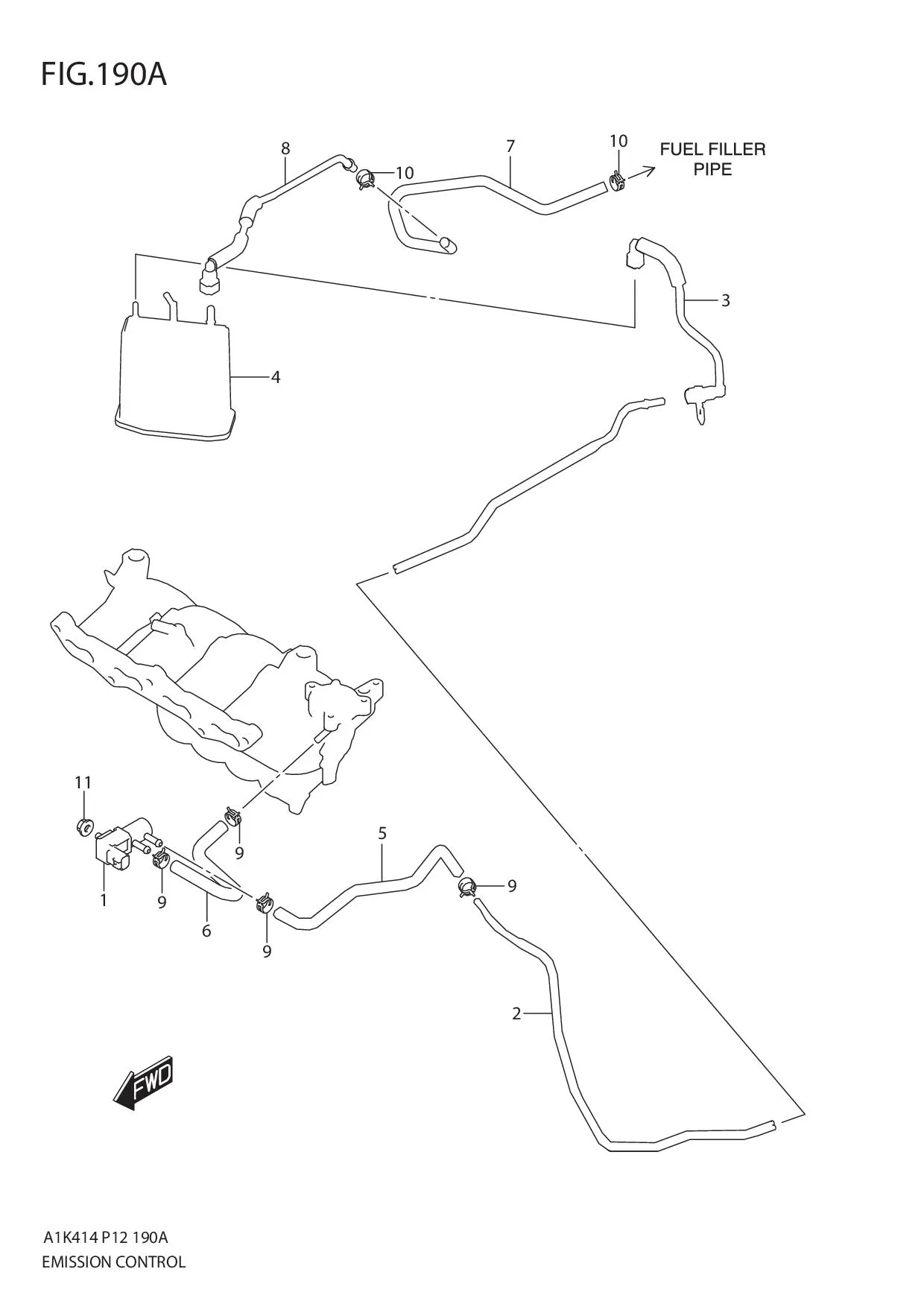

FIG.190A EMISSION CONTROL

FIG.190A EMISSION CONTROL
No No. Part Description Qty Price Per Pcs Remarks
1 18114M76M00-000 VALVE, CANISTER PURGE 1 Rp322.500
2 18351M68P00-000 PIPE, PURGE RH 1 Rp233.000
3 18352M68P00-000 PIPE, PURGE 1 Rp265.500
4 18560M68P00-000 CANISTER 1 Rp385.000
5 18561M68PA0-000 HOSE, PURGE 1 Rp55.000
6 18564M68PA0-000 HOSE, PURGE 1 Rp53.500
7 18567M68P00-000 HOSE, CANISTER AIR SUCTION 1 Rp29.000
8 18569M68P01-000 PIPE, CSTR AIR SUCTION 1 Rp148.000
9 09401M11432-000 CLIP 4 Rp6.000
10 09401M11432-000 CLIP 2 Rp6.000
11 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
