BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT) FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

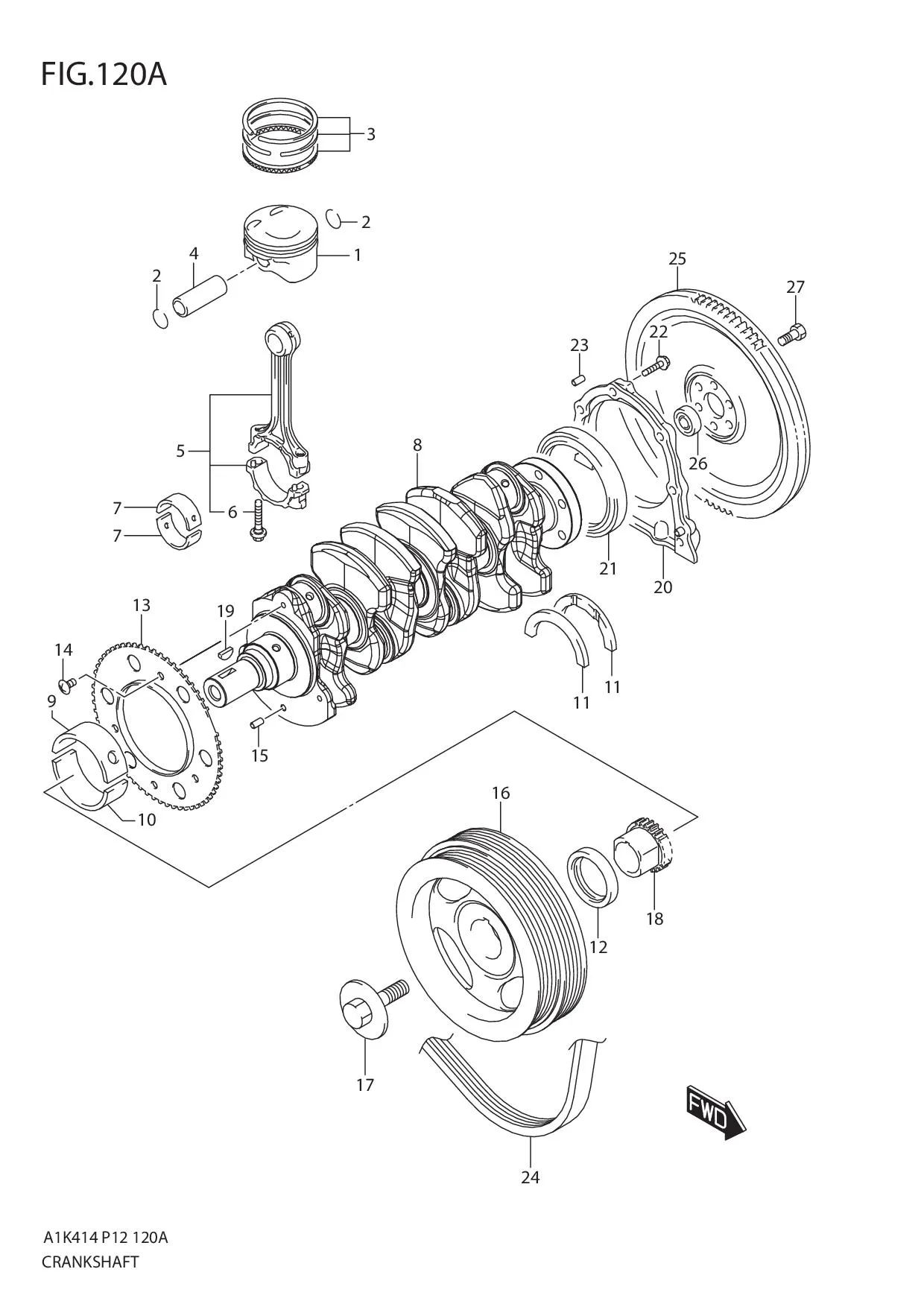

FIG.120A CRANKSHAFT

FIG.120A CRANKSHAFT
No No. Part Description Qty Price Per Pcs Remarks
1 12111M79M00-000 PISTON 4 Rp214.500
2 09381-18002-000
SUB: 09381B18002N000		 CIRCLIP 8 Rp2.500
3 12140M68P10-000 RING SET, PISTON 4 Rp125.500
4 12151M68K60-000 PIN, PISTON 4 Rp34.500
5 12160M68K10-000
SUB: 12160M68K00-000		 CONNROD ASSY 4 Rp358.000
6 12163-69J00-000 •BOLT, CONNROD 8 Rp25.500
7-4 12181M68K00-0D0 BEARING, CONNROD YELLOW (STD,T:1.5) 8 Rp20.500
7-6 12181M68K10-025
SUB: 12181M68K00-025		 BEARING, CONNROD RED (US:0.25,T:1.625) 8 Rp14.500
7-5 12181M68K00-0E0 BEARING, CONNROD BLUE (STD,T:1.5) 8 Rp22.000
7-3 12181M68K00-0C0 BEARING, CONNROD NON (STD,T:1.5) 8 Rp20.500
7-2 12181M68K00-0B0 BEARING, CONNROD BLACK (STD,T:1.5) 8 Rp20.500
7-1 12181M68K00-0A0 BEARING, CONNROD GREEN (STD,T:1.5) 8 Rp20.500
8 12221M60M00-000 CRANKSHAFT 1 Rp2.311.500
9-2 12341M74L00-0B0 BEARING, CRANK UPR PURPLE (STD,T:2.0) 5 Rp30.500
9-10 12341-74L00-0EA
SUB: 12341M74L00-0EA		 BEARING, CRANK UPR RED/BLACK (US:0.25,T:2.125) 5 Rp61.500
9-9 12341-74L00-0DA
SUB: 12341M74L00-0DA		 BEARING, CRANK UPR RED/GREEN (US:0.25,T:2.125) 5 Rp61.500
9-8 12341-74L00-0CA
SUB: 12341M74L00-0CA		 BEARING, CRANK UPR RED/BROWN (US:0.25,T:2.125) 5 Rp61.500
9-7 12341-74L00-0BA
SUB: 12341M74L00-0BA		 BEARING, CRANK UPR RED/PURPLE (US:0.25,T:2.125) 5 Rp61.500
9-6 12341-74L00-0AA
SUB: 12341M74L00-0AA		 BEARING, CRANK UPR RED/PINK (US:0.25,T:2.125) 5 Rp59.500
9-5 12341M74L00-0E0 BEARING, CRANK UPR BLACK (STD,T:2.0) 5 Rp30.500
9-4 12341M74L00-0D0 BEARING, CRANK UPR GREEN (STD,T:2.0) 5 Rp30.500
9-3 12341M74L00-0C0 BEARING, CRANK UPR BROWN (STD,T:2.0) 5 Rp30.500
9-1 12341M74L00-0A0 BEARING, CRANK UPR PINK (STD,T:2.0) 5 Rp30.500
10-3 12345M74L00-0C0 BEARING, CRANK LWR BROWN (STD,T:2.0) 5 Rp29.000
10-10 12345-74L00-0EA
SUB: 12345M74L00-0EA		 BEARING, CRANK LWR RED/BLACK (US:0.25,T:2.125) 5 Rp61.000
10-9 12345-74L00-0DA
SUB: 12345M74L00-0DA		 BEARING, CRANK LWR RED/GREEN (US:0.25,T:2.125) 5 Rp61.000
10-8 12345-74L00-0CA
SUB: 12345M74L00-0CA		 BEARING, CRANK LWR RED/BROWN (US:0.25,T:2.125) 5 Rp61.000
10-7 12345-74L00-0BA
SUB: 12345M74L00-0BA		 BEARING, CRANK LWR RED/PURPLE (US:0.25,T:2.125) 5 Rp61.000
10-5 12345M74L00-0E0 BEARING, CRANK LWR BLACK (STD,T:2.0) 5 Rp30.000
10-4 12345M74L00-0D0 BEARING, CRANK LWR GREEN (STD,T:2.0) 5 Rp29.000
10-2 12345M74L00-0B0 BEARING, CRANK LWR PURPLE (STD,T:2.0) 5 Rp29.000
10-1 12345M74L00-0A0 BEARING, CRANK LWR PINK (STD,T:2.0) 5 Rp29.000
10-6 12345-74L00-0AA
SUB: 12345M74L00-0AA		 BEARING, CRANK LWR RED/PINK (US:0.25,T:2.125) 5 Rp59.000
11-1 12351-58M00-000 BEARING, CRANK THRUST (STD,T:2.5) 2 Rp41.000
11-2 12351-58M00-012 BEARING, CRANK THRUST (OS:0.125,T:2.563) 2 Rp62.000
12 16141M68K00-000 OIL SEAL, CRANKSHAFT FR 1 Rp53.500
13 12222M68P50-000 PLATE, SENSOR 1 Rp53.000
14 12223-69G00-000 SCREW, SENSOR PLATE (6X10) 3 Rp14.500
15 09205-05006-000 SPRING PIN (5X12) 1 Rp13.500
16 12610-81P00-000 PULLEY, CRANKSHAFT 1 Rp1.230.500
17 12619-69G10-000 BOLT, CRANK PULLEY 1 Rp102.500
18 12631-54G11-000 SPROCKET, CRANKSHAFT TIMING 1 Rp439.500
19 08341M31059-000 KEY 1 Rp4.500
20 11341M51K00-000 HOUSING, OIL SEAL 1 Rp73.000
21 11342M68K10-000 OIL SEAL, CRANKSHAFT REAR 1 Rp143.000
22 09103M06315-000 BOLT (6X25) 6 Rp6.000
23 04221-06129-000 PIN 2 Rp13.500
24 17521M68P00-000 BELT, WATER PUMP (5PK882) 1 Rp157.000
25 12620-77M01-000
SUB: 12620B77M00N000		 FLYWHEEL 1 Rp766.000 5MT
26 12623M68K00-000 BEARING, INPUT SHAFT 1 Rp88.000 5MT
27 09103-10440-000 BOLT (10X18.5) 6 Rp33.000 5MT

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
