BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT) FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

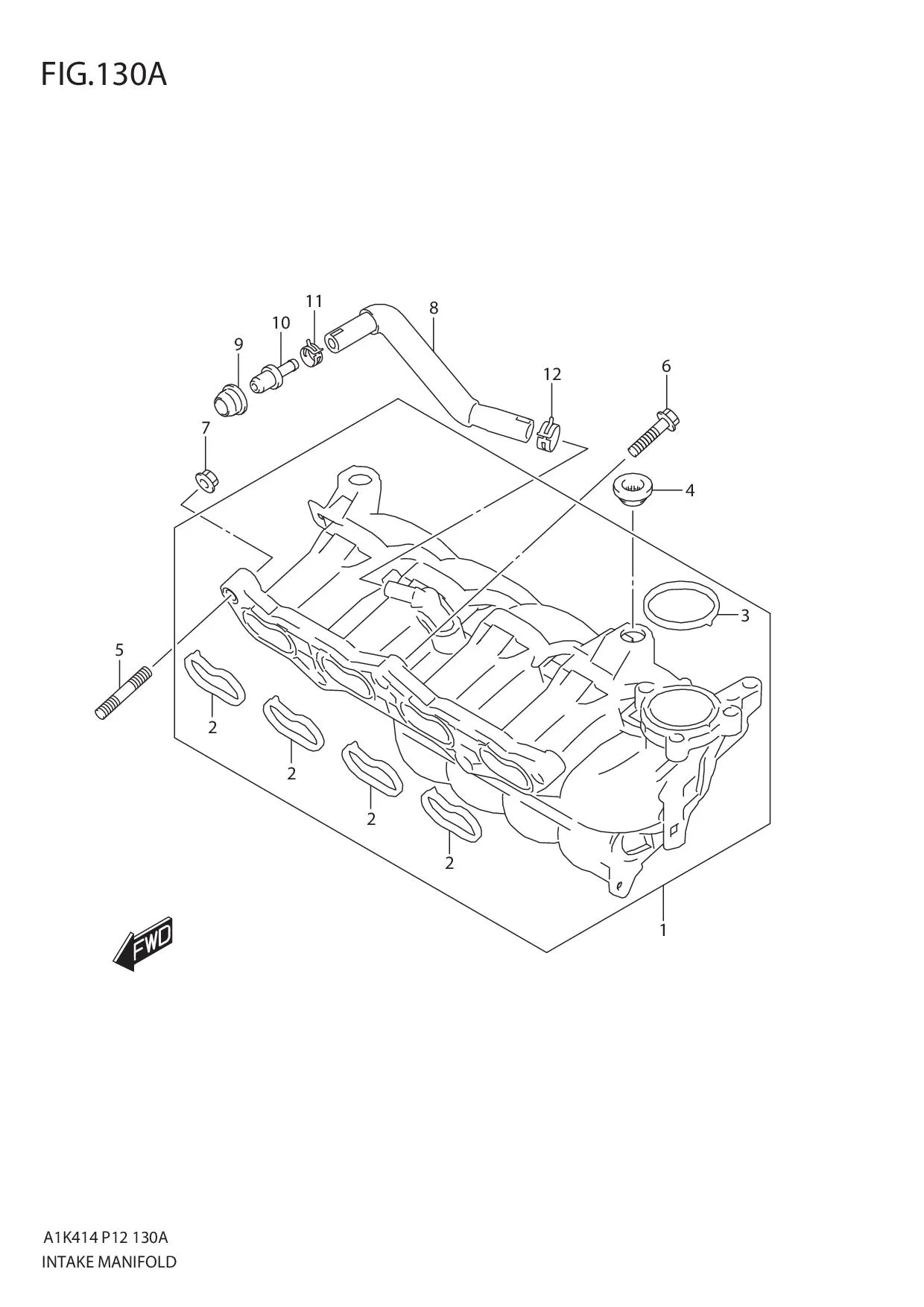

FIG.130A INTAKE MANIFOLD

FIG.130A INTAKE MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 13110M68P00-000 MANIFOLD, INTK 1 Rp1.240.500
2 13118M68P00-000 •GASKET, INTK MANF 4 Rp25.000
3 13421M68P00-000 •GASKET, THROTTLE BODY 1 Rp45.000
4 13723M84MB0-000 GROMMET, AIR CLNR 2 Rp6.500
5 01421-0835A-000 STUD BOLT 2 Rp13.500
6 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 3 Rp3.500
7 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
8 11193M68P00-000 HOSE, PCV 1 Rp31.000
9 11198M79F00-000 SEAL, PCV VALVE 1 Rp16.500
10 18118-60M00-000 VALVE, PCV 1 Rp177.000
11 09401M13L04-000 CLIP 1 Rp6.000
12 09401M15418-000 CLIP 1 Rp6.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
