BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT) FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

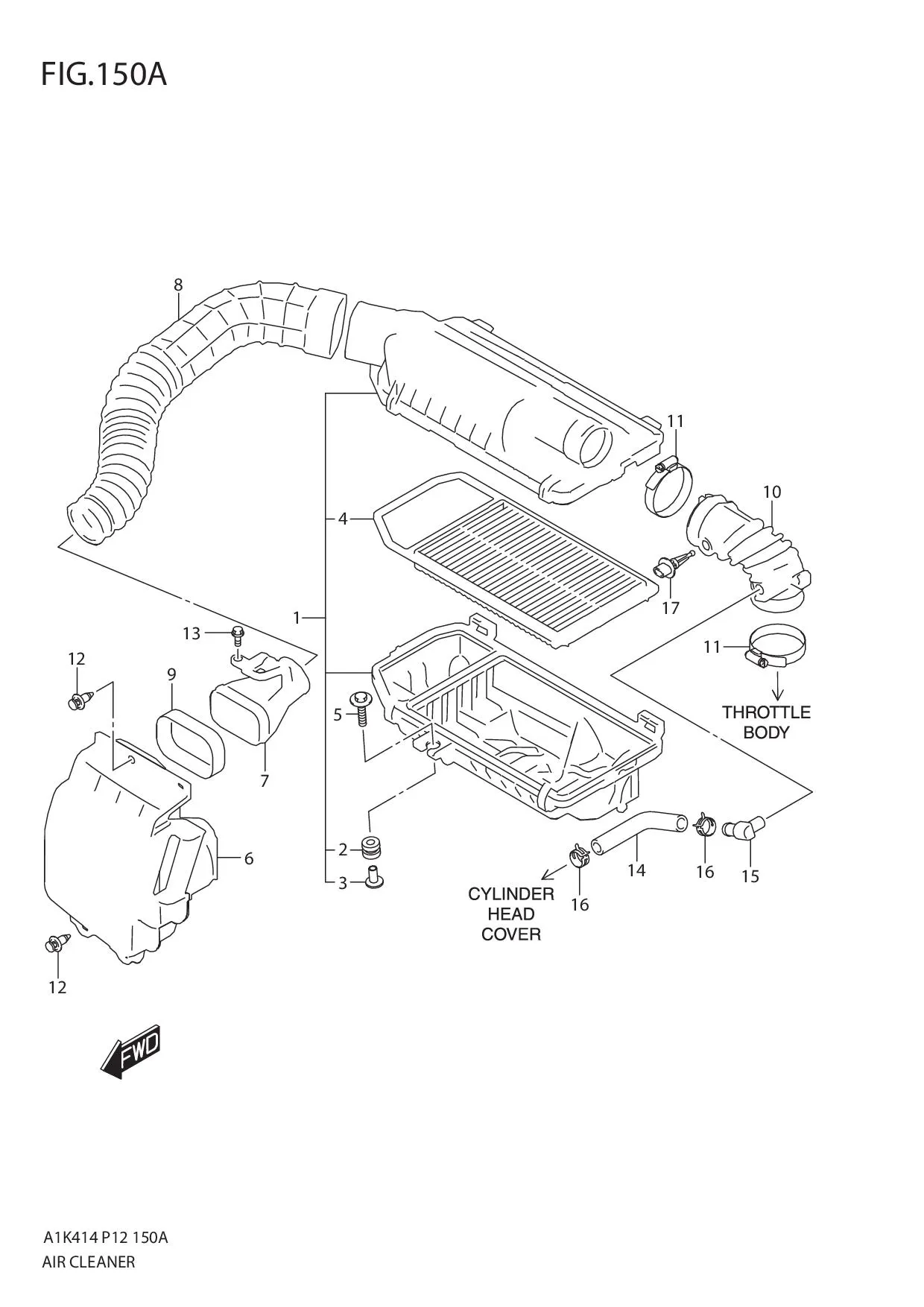

FIG.150A AIR CLEANER

FIG.150A AIR CLEANER
No No. Part Description Qty Price Per Pcs Remarks
1 13700M68P02-000 CLEANER ASSY, AIR 1 Rp335.500
2 13723M68P00-000 •GROMMET, AIR CLNR 1 Rp9.500
3 13724M68P00-000 •COLLAR, AIR CLEANER 1 Rp9.500
4 13780M68P01-000 •ELEMENT, AIR CLEANER 1 Rp109.500
5 09136-06141-000 SCREW (6X25) 1 Rp17.000
6 13760M68P00-000 SHROUD, AIR INTAKE 1 Rp141.000
7 13765M68P00-000 PIPE, AIR CLNR SUCT 1 Rp61.500
8 13766M68P00-000 HOSE, AIR CLNR SUCT 1 Rp91.000
9 13799M68P00-000 SEAL, AIR SUCT PIPE 1 Rp23.500
10 13881M68P00-000 HOSE, AIR CLNR OUT 1 Rp86.000
11 13893M74L50-000 CLAMP, AIR CLNR OUTLET HOSE 2 Rp47.500
12 09409M08006-000
SUB: 09409M08L01-000		 CLIP 4 Rp5.000
13 02162-0616A-000 SCREW 2 Rp3.000
14 11191M68P00-000 HOSE, BREATHER 1 Rp20.500
15 09367-14004-000 PIPE 1 Rp59.500
16 09401M18L07-000 CLIP 2 Rp9.000
17 13650M83KA0-000 SENSOR, INLET AIR TEMP 1 Rp414.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
