BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT) FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

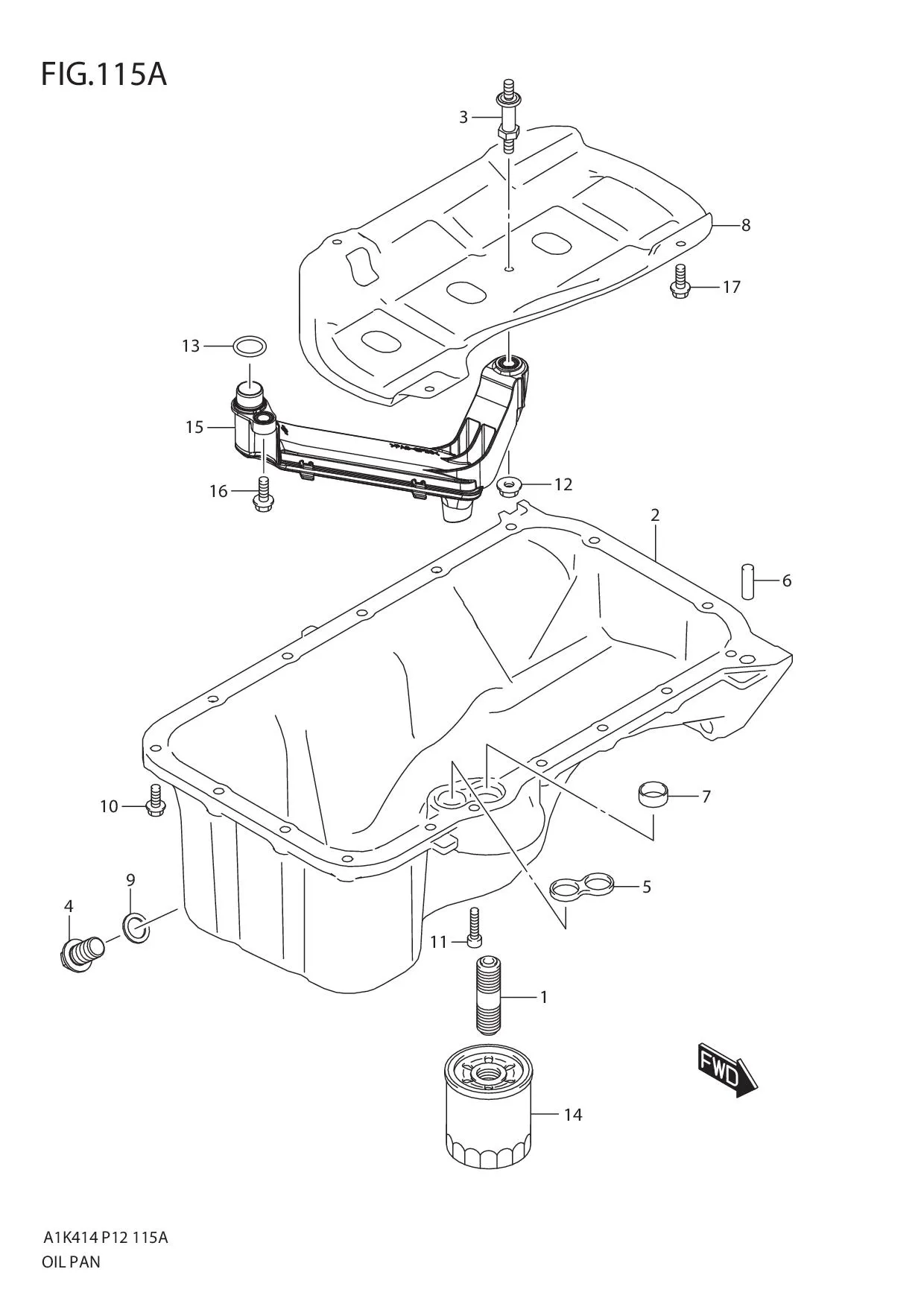

FIG.115A OIL PAN

FIG.115A OIL PAN
No No. Part Description Qty Price Per Pcs Remarks
1 11241-68K00-000
SUB: 11241B68K00N000		 STAND, OIL FILTER 1 Rp15.000
2 11511M68P00-000 PAN, OIL 1 Rp961.000
3 11515-51K03-000 BOLT, OIL PAN BAFFLE 1 Rp54.000
4 11518-63J10-000
SUB: 11518B63J10N000		 PLUG, OIL DRAIN 1 Rp9.500
5 11518M68K00-000 O RING, OIL PAN 1 Rp6.500
6 11519M67L00-000 PIN, OIL PAN DOWEL 1 Rp6.000
7 16114M69J00-000
SUB: 16114B69J00N000		 PIN, OIL PAN DOWEL 1 Rp14.500
8 11541M73K00-000
SUB: 11541M73K10-000		 PLATE, OIL PAN BAFFLE 1 Rp86.500
9 09168-14015-000
SUB: 09168M14015-000		 GASKET (14X20X1.5) 1 Rp7.500
10 DISCONTINUE
SUB: 01550B0625AN000		 BOLT 16 -
11 07130-0625A-000
SUB: 07130B0625AN000		 BOLT 1 Rp3.500
12 08316-1006A-000
SUB: 08316B1006AN000		 NUT 1 Rp2.000
13 16119M68K00-000 O RING, OIL GALLERY 1 Rp7.000
14 16510-61J00-000 FILTER ASSY, OIL 1 Rp37.000
15 16520-69L00-000 STRAINER, OIL PUMP 1 Rp316.000
16 07120-0620A-000 BOLT 1 Rp22.000
17 01550M0612A-000 BOLT 4 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
