BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT) FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

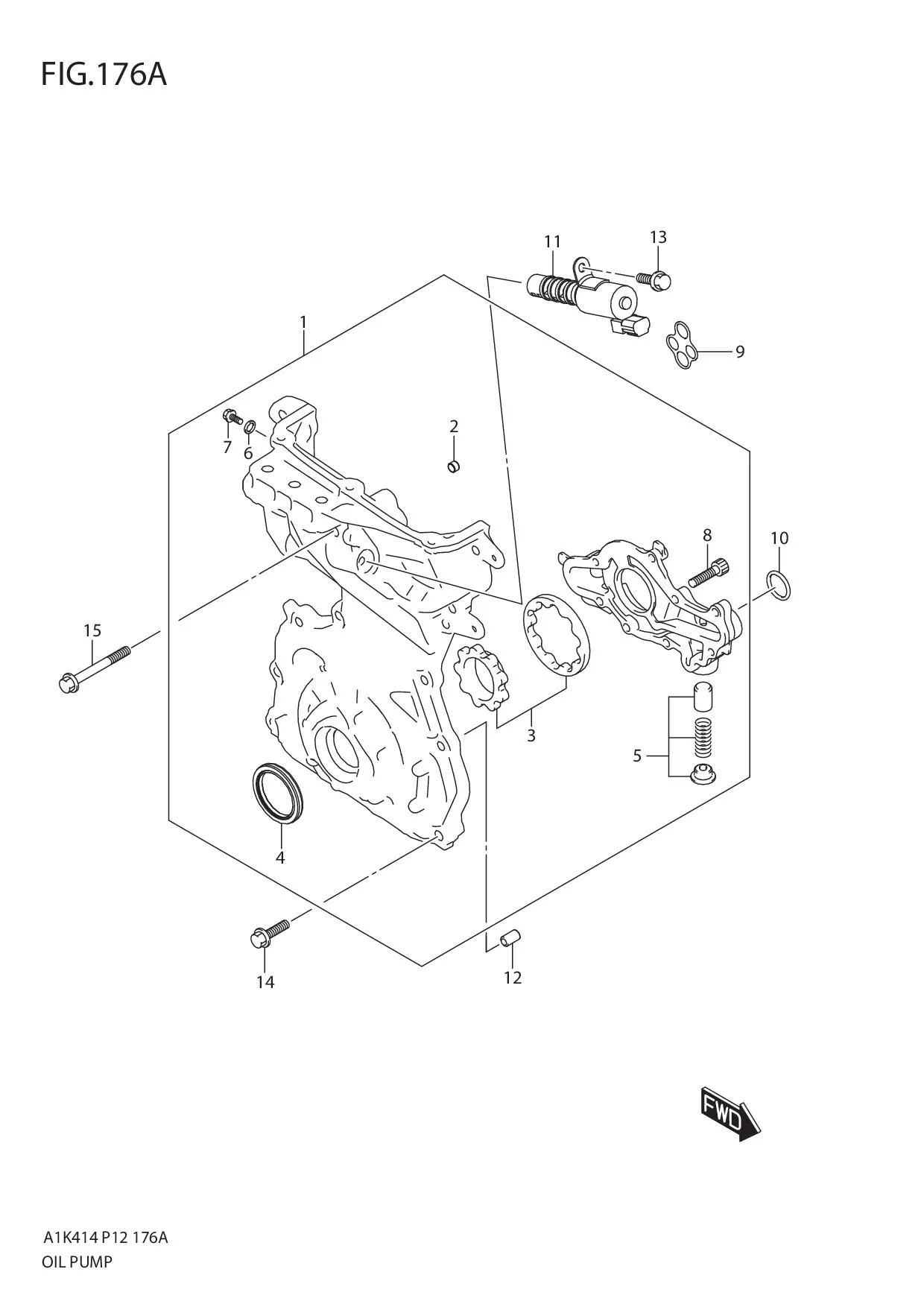

FIG.176A OIL PUMP

FIG.176A OIL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 16100M68P02-000
SUB: 16100M68P01-000		 PUMP ASSY, OIL 1 Rp1.471.500
2 16116-69GE0-000 •FILTER, OIL GALLERY 3 Rp66.000
3 16130M83P00-000 •ROTOR SET, OIL PUMP 1 Rp275.500
4 16141M68K00-000 •OIL SEAL, CRANKSHAFT FR 1 Rp53.500
5 DISCONTINUE
SUB: 16150M68K00-000		 •VALVE SET, OIL PUMP RELIEF 1 -
6 09168-08016-000
SUB: 09168M08016-000		 •GASKET (8.2X14X1) 1 Rp25.000
7 01550-0816A-000
SUB: 01550B0816AN000		 •BOLT 1 Rp6.000
8 07130-0625A-000
SUB: 07130B0625AN000		 •BOLT 8 Rp3.500
9 16118M74LB0-000 O RING, OIL PUMP CASE 1 Rp11.500
10 16119M68K00-000 O RING, OIL GALLERY 1 Rp7.000
11 16550-58MA0-000
SUB: 16550B58MA0N000		 VALVE, OIL CONTROL 1 Rp695.500
12 09206-06005-000
SUB: 09206B06005N000		 PIN (4X6X11) 2 Rp14.500
13 01550M0612A-000 BOLT 1 Rp5.000
14 01550-0830A-000
SUB: 01550B0830AN000		 BOLT 13 Rp4.000
15 01550-0885A-000 BOLT 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
