BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT) FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

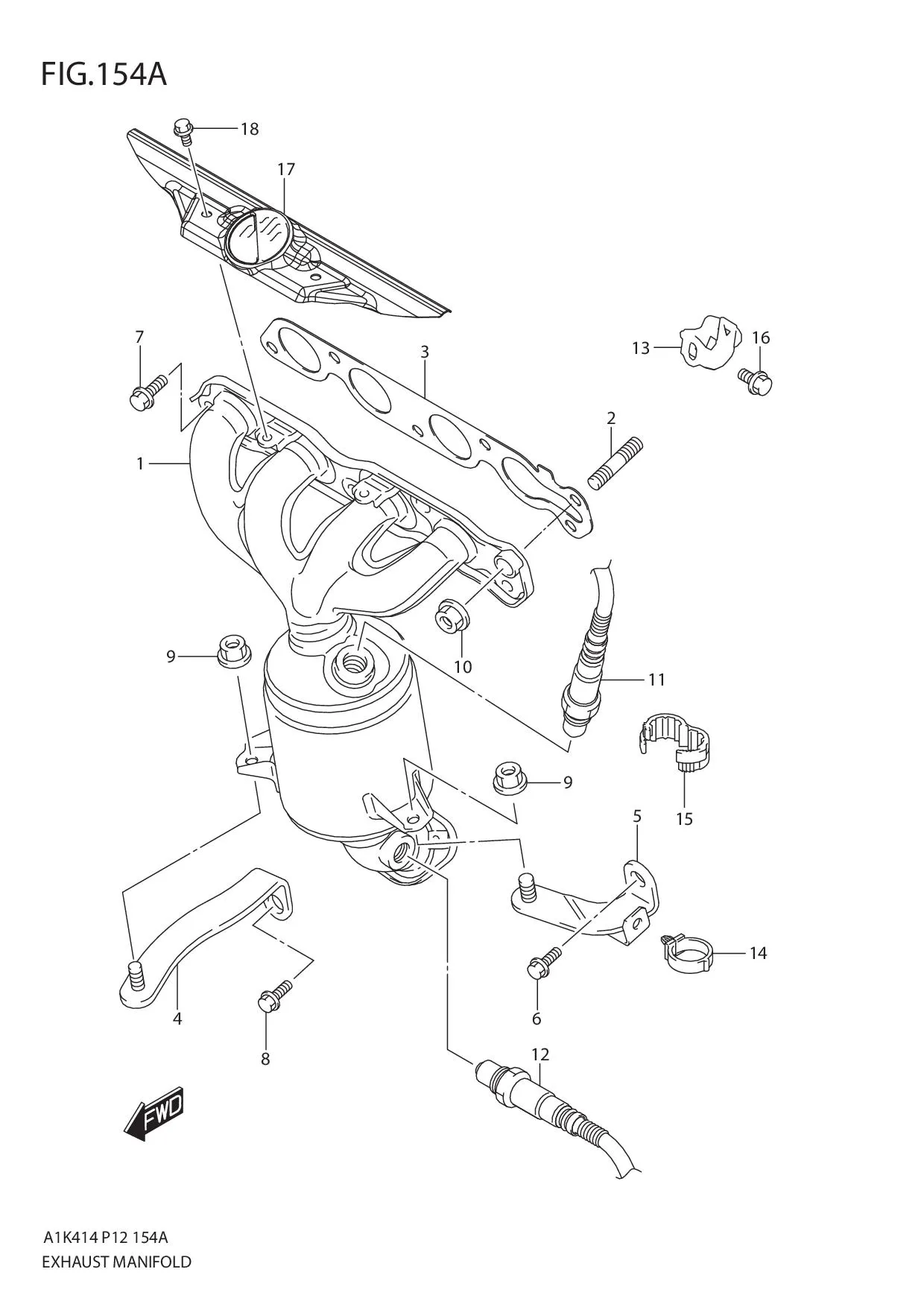

FIG.154A EXHAUST MANIFOLD

FIG.154A EXHAUST MANIFOLD
No No. Part Description Qty Price Per Pcs Remarks
1 14110M79M00-000 MANIFOLD, EXH 1 Rp6.976.000
2 14118-63J00-000 STUD BOLT, EXH MANF 3 Rp21.500
3 14140M60M00-000 GASKET, EXH MANF 1 Rp136.500
4 14271-73K00-000
SUB: 14271M73K00-000		 STIFFENER, EXH MANF 1 Rp20.500
5 14272-73KA0-000
SUB: 14272B73KA0N000		 STIFFENER, EXH MANF 1 Rp23.500
6 01550-0820A-000
SUB: 01550B0820AN000		 BOLT 1 Rp5.500
7 01550-1020A-000 BOLT 3 Rp21.000
8 01550-1020A-000 BOLT 1 Rp21.000
9 08316-1008A-000
SUB: 08316B1008AN000		 NUT 2 Rp3.500
10 08316-1010A-000
SUB: 08316B1010AN000		 NUT 3 Rp3.500
11 18213M68P01-000
SUB: 18213M68P00-000		 SENSOR, OXYGEN 1 Rp995.500
12 18213M68P11-000
SUB: 18213M68P10-000		 SENSOR, OXYGEN RR 1 Rp980.000
13 18214M68P00-000 BRACKET, OXYGEN SENSOR 1 Rp6.500
14 09403M12404-000
SUB: 09403M12L03-000		 CLAMP 2 Rp5.500
15 09408M00L13-000 CLAMP 1 Rp7.000
16 01550M0612A-000 BOLT 1 Rp5.000
17 14121-54M00-000 PLATE, CAUTION 1 Rp188.000
18 01550M0610C-000 BOLT 2 Rp5.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
