BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT) FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

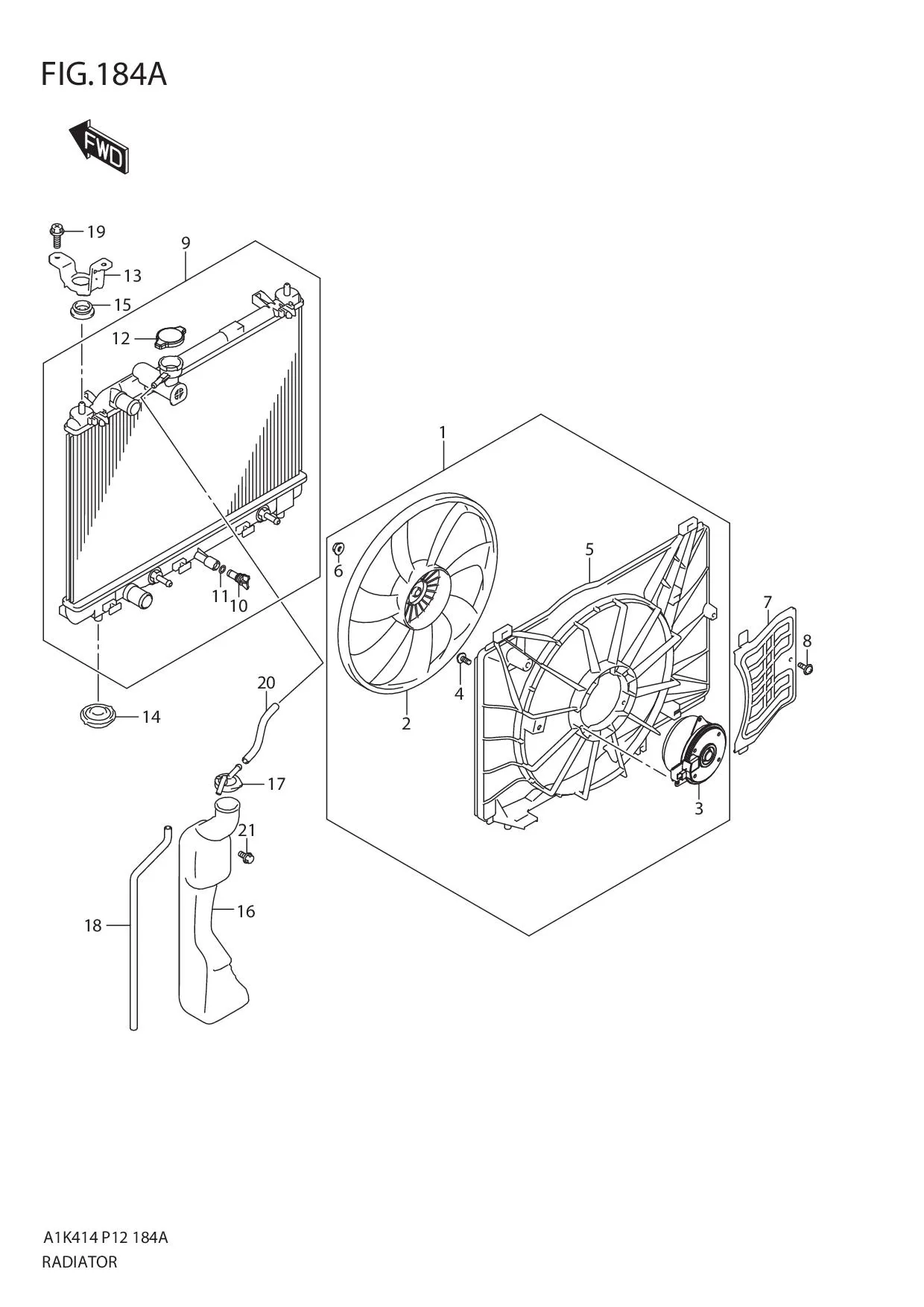

FIG.184A RADIATOR

FIG.184A RADIATOR
No No. Part Description Qty Price Per Pcs Remarks
1 17100M68P00-000 FAN ASSY, ENG CLG 1 Rp1.983.000
2 17111M68P00-000 •FAN, COOLING 1 Rp178.000
3 17120M68P00-000 •MOTOR ASSY, FAN 1 Rp1.766.000
4 17129-56F00-000 •SCREW, FAN MOTOR 3 Rp24.000
5 17760M68P00-000 •SHROUD, FAN 1 Rp543.000
6 08316-2005A-000 •NUT 1 Rp13.000
7 17191M68P00-000 PLATE, HEAT SHIELD 1 Rp121.500
8 17129M50F10-000
SUB: 17192M68P00-000		 SCREW, HEAT SHIELD PLATE 1 Rp5.500
9-1 17700M68P00-000 RADIATOR ASSY 1 Rp1.615.500 5MT
9-2 17700M68P20-000 RADIATOR ASSY 1 Rp2.175.000 4AT
10 17751-61A00-000
SUB: 17751M61A00-000		 •VALVE ASSY, STOP 1 Rp13.000
11 17759-82K00-000 •O RING 1 Rp7.500
12 17920M76M00-000 •CAP 1 Rp335.000
13 17861M68P00-000 BRACKET, RDTR SUPPORT UPPER 2 Rp22.000
14 17878M68P00-000 MOUNT, RADIATOR SUPPORT LOWER 2 Rp17.000
15 17879M76M00-000 BRACKET, RADIATOR UPPER 2 Rp18.500
16 17931M68P00-000 TANK, WATER RESERVE 1 Rp121.500
17 17932-76G00-000
SUB: 17932M76G00-000		 CAP, WATER RESERVE TANK 1 Rp5.500
18 17934M68P00-000 HOSE, RSV TANK 1 Rp25.000
19 09122-76003-000 SCREW (6X16) 4 Rp15.000
20 09352M70L03-120 HOSE (7X11X120) 1 Rp8.500
21 01550M0612A-000 BOLT 1 Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
