BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT) FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

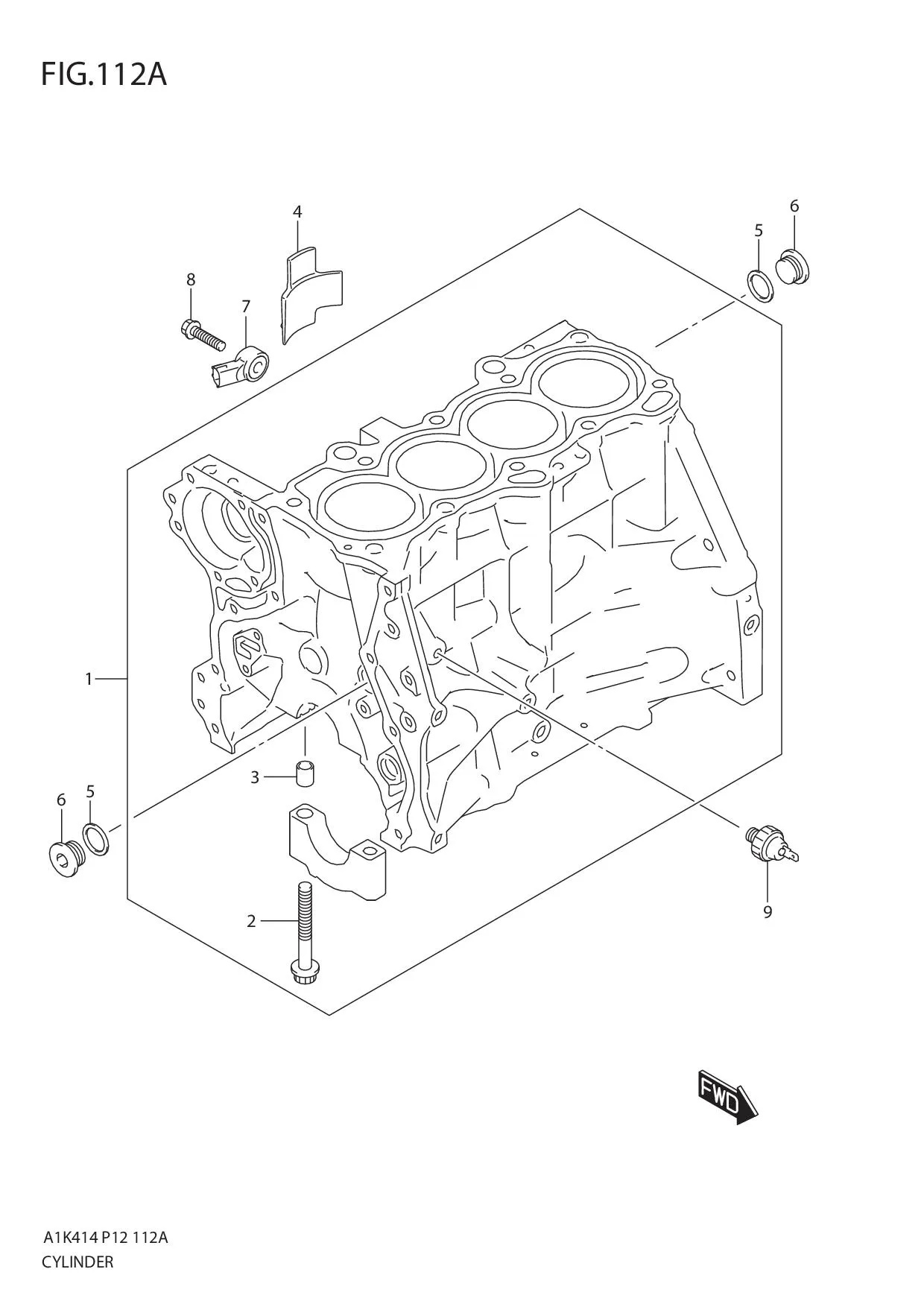

FIG.112A CYLINDER

FIG.112A CYLINDER
No No. Part Description Qty Price Per Pcs Remarks
1 11200M83K41-000 BLOCK ASSY, CYLINDER 1 Rp10.345.000
2 11261-69J01-000 •BOLT, CRANK BEARING CAP 10 Rp37.000
3 04211M13189-000
SUB: 04211-13189-000		 •PIN 5 Rp9.000
4 11215-69L00-000 SPACER, WATER JACKET 1 Rp153.000
5 11216M68K10-000
SUB: 11216M68K00-000		 GASKET, M18 PLUG 2 Rp8.000
6 09248-18011-000 PLUG (OD:18.0) 2 Rp38.000
7 18640M68P00-000 SENSOR ASSY, KNOCK 1 Rp186.000
8 01550-0835A-000
SUB: 01550B0835AN000		 BOLT 1 Rp3.500
9 37820M68K00-000 SWITCH ASSY, OIL PRESSURE 1 Rp199.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
