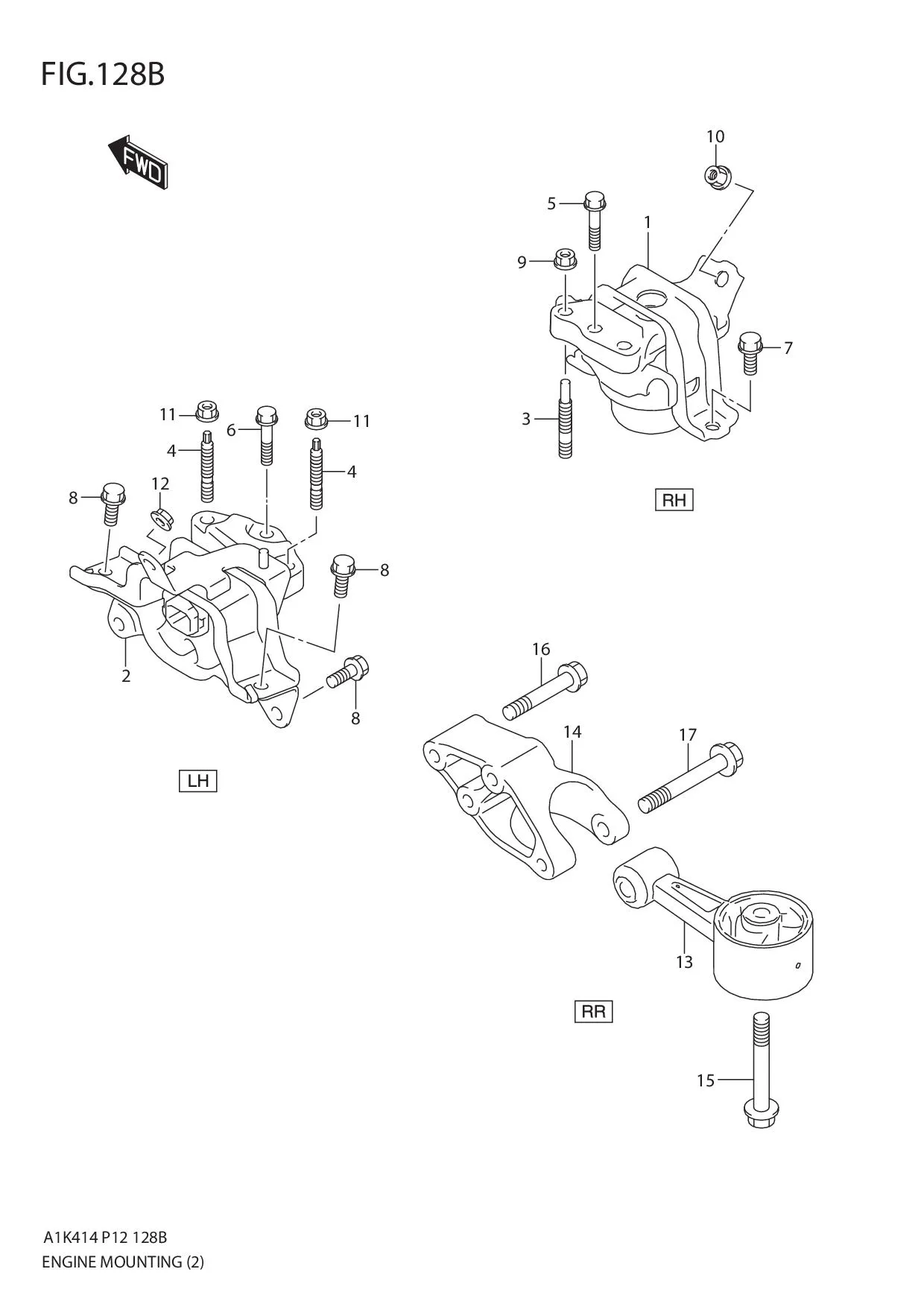

FIG.128B ENGINE MOUNTING (4AT)

FIG.128B ENGINE MOUNTING (4AT)
No No. Part Description Qty Price Per Pcs Remarks
1 11610M68P02-000
SUB: 11610M68P00-000		 MOUNTING, ENG RH 1 Rp1.074.000
2 11620M68P61-000
SUB: 11620M68P60-000		 MOUNTING, ENG LH 1 Rp622.500
3 11653-79J50-000 STUD BOLT, ENG LH MTG BRKT 2 Rp40.000
4 09108M10164-000 STUD BOLT 2 Rp10.500
5 09103-10055-000 BOLT (10X40) 1 Rp12.500
6 01550-1040A-000
SUB: 01550B1040AN000		 BOLT 1 Rp7.000
7 01551-1025A-000 BOLT 2 Rp29.000
8 01551-1025A-000 BOLT 4 Rp29.000
9 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
10 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
11 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
12 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
13 11910M68P11-000
SUB: 11910M68P10-000		 ROD, ENG RR TRQ 1 Rp281.000
14 11941M68P10-000 BRACKET, ENG RR TRQ ROD 1 Rp440.000
15 09113M12004-000 BOLT (12X90) 1 Rp32.500
16 01550-1075A-000 BOLT 3 Rp32.000
17 01550M1290A-000 BOLT 1 Rp22.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
