BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT) FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

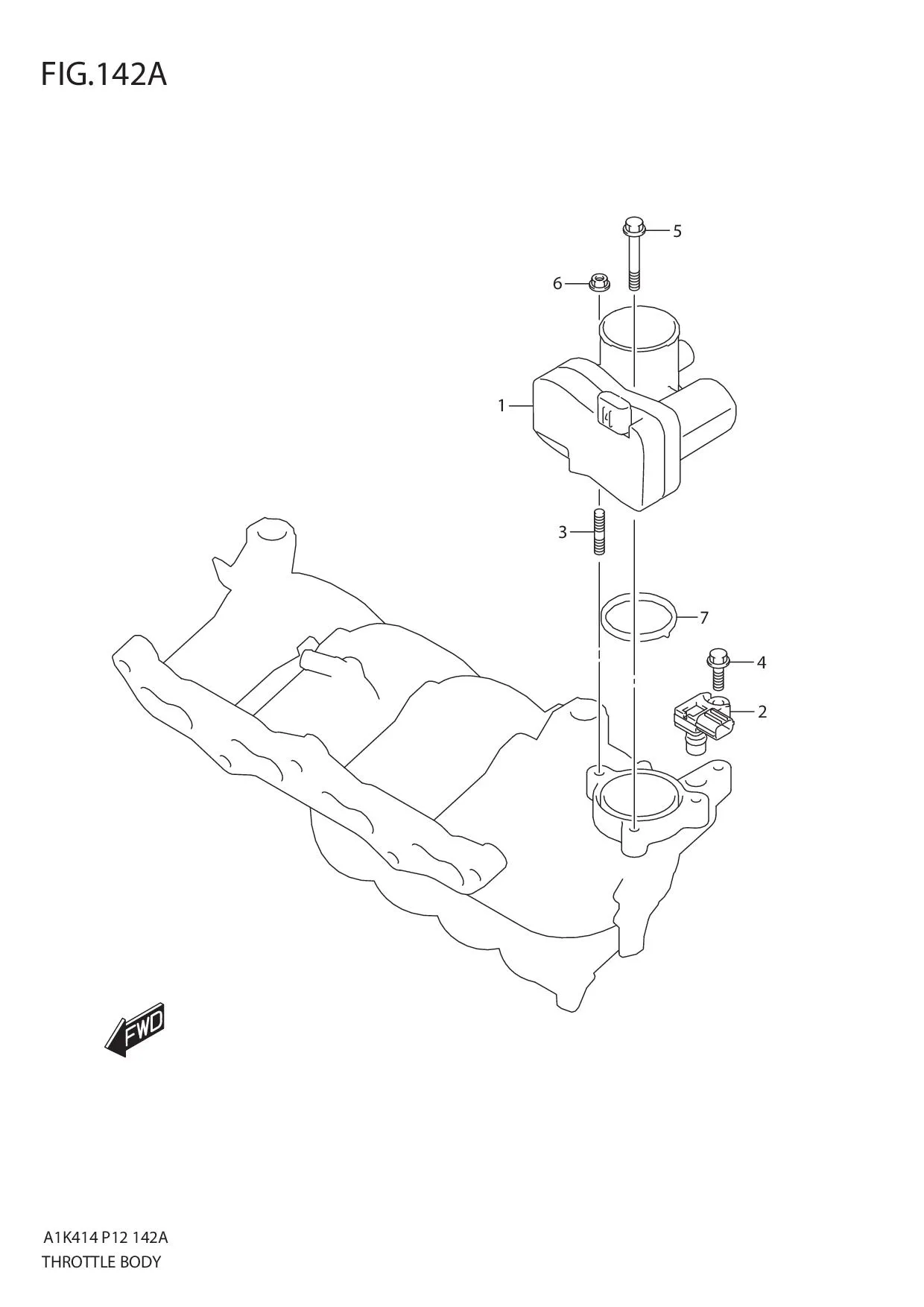

FIG.142A THROTTLE BODY

FIG.142A THROTTLE BODY
No No. Part Description Qty Price Per Pcs Remarks
1 13400M68P10-000
SUB: 13400M68P00-000		 BODY ASSY, THROTTLE 1 Rp1.836.000
2 18590M76M00-000 SENSOR, MAP 1 Rp379.500
3 01421-0620A-000
SUB: 01421B0620AN000		 STUD BOLT 2 Rp3.500
4 01550-0620C-000 BOLT 1 Rp5.500
5 01550-0645A-000 BOLT 1 Rp13.000
6 08316-1006A-000
SUB: 08316B1006AN000		 NUT 2 Rp2.000
7 13421M68P00-000 GASKET, THROTTLE BODY 1 Rp45.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
