BALENO AK414

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.101A SHORT ENGINE ASSYFIG.105A ENGINE GASKET SETFIG.111A CYLINDER HEADFIG.112A CYLINDERFIG.115A OIL PANFIG.120A CRANKSHAFTFIG.122A CAM SHAFT/VALVEFIG.124A CAM CHAINFIG.128A ENGINE MOUNTING (5MT)FIG.128B ENGINE MOUNTING (4AT) FIG.130A INTAKE MANIFOLDFIG.142A THROTTLE BODYFIG.150A AIR CLEANERFIG.154A EXHAUST MANIFOLDFIG.156A MUFFLERFIG.160A FUEL PUMPFIG.172A DELIVERY PIPE/FUEL INJECTORFIG.176A OIL PUMPFIG.180A WATER PUMPFIG.184A RADIATORFIG.188A WATER HOSEFIG.190A EMISSION CONTROLFIG.199A LABEL

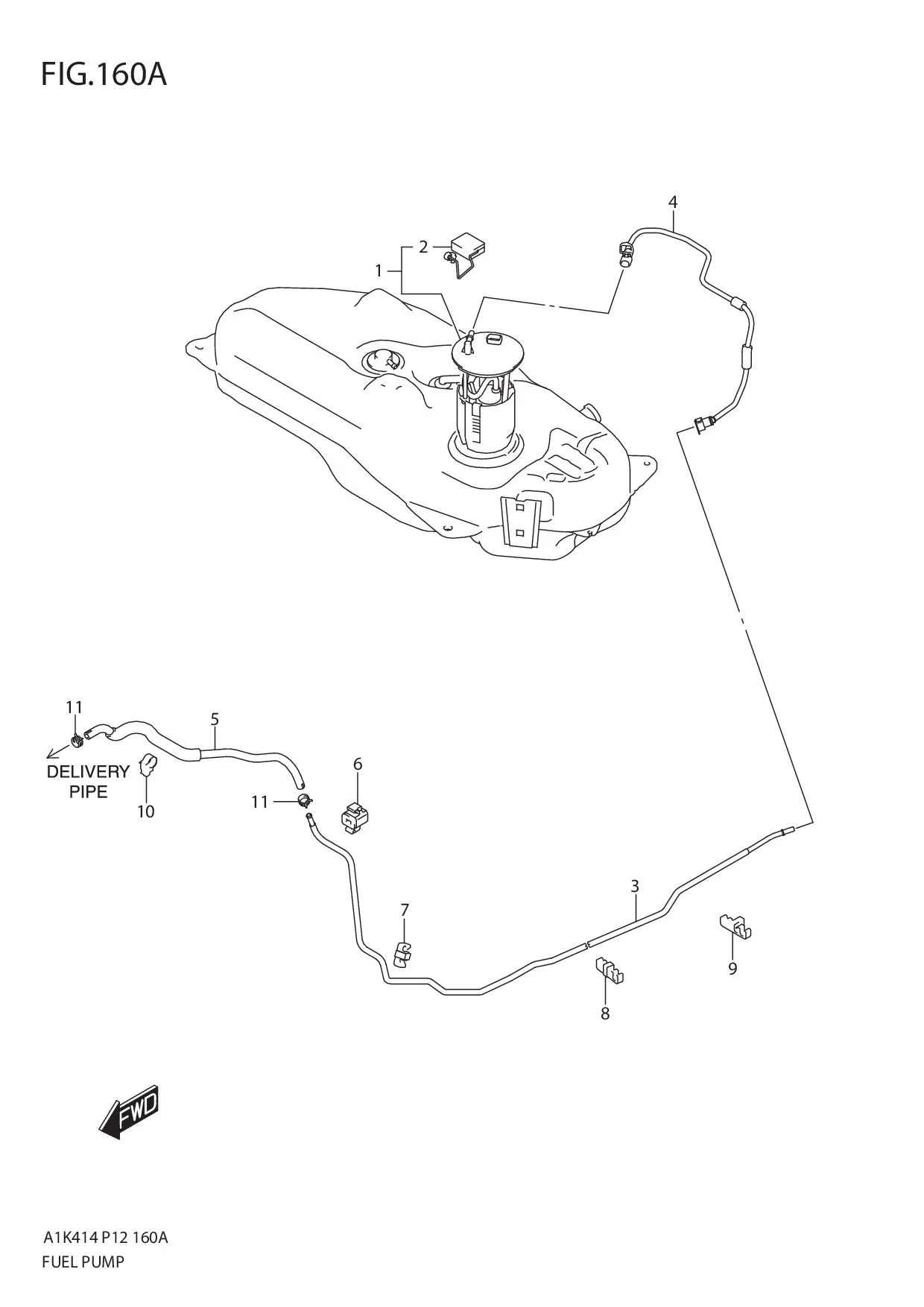

FIG.160A FUEL PUMP

FIG.160A FUEL PUMP
No No. Part Description Qty Price Per Pcs Remarks
1 15100M68P02-000
SUB: 15100M68P00-000		 PUMP ASSY, FUEL 1 Rp3.026.000
2 34810M68P00-000 •GAUGE ASSY, FUEL LEVEL 1 Rp581.000
3 15811M68P00-000 PIPE, FUEL FEED RH 1 Rp235.500
4 15812M68P01-000 PIPE, FUEL PUMP TO PIPE 1 Rp272.000
5 15815M68PA0-000 HOSE, FUEL PIPE TO ENG 1 Rp366.500
6 15882M55K00-000 CLAMP, FUEL PIPE 1 Rp17.500
7 15892M68P00-000 CLAMP, FUEL PIPE 2 Rp20.500
8 15893M68P00-000 CLAMP, FUEL PIPE 3 Rp16.500
9 15894M68P00-000 CLAMP, FUEL PIPE 1 Rp16.500
10 15895M68P00-000 CLAMP, FUEL HOSE 1 Rp12.500
11 09401-11433-000 CLIP 2 Rp25.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
