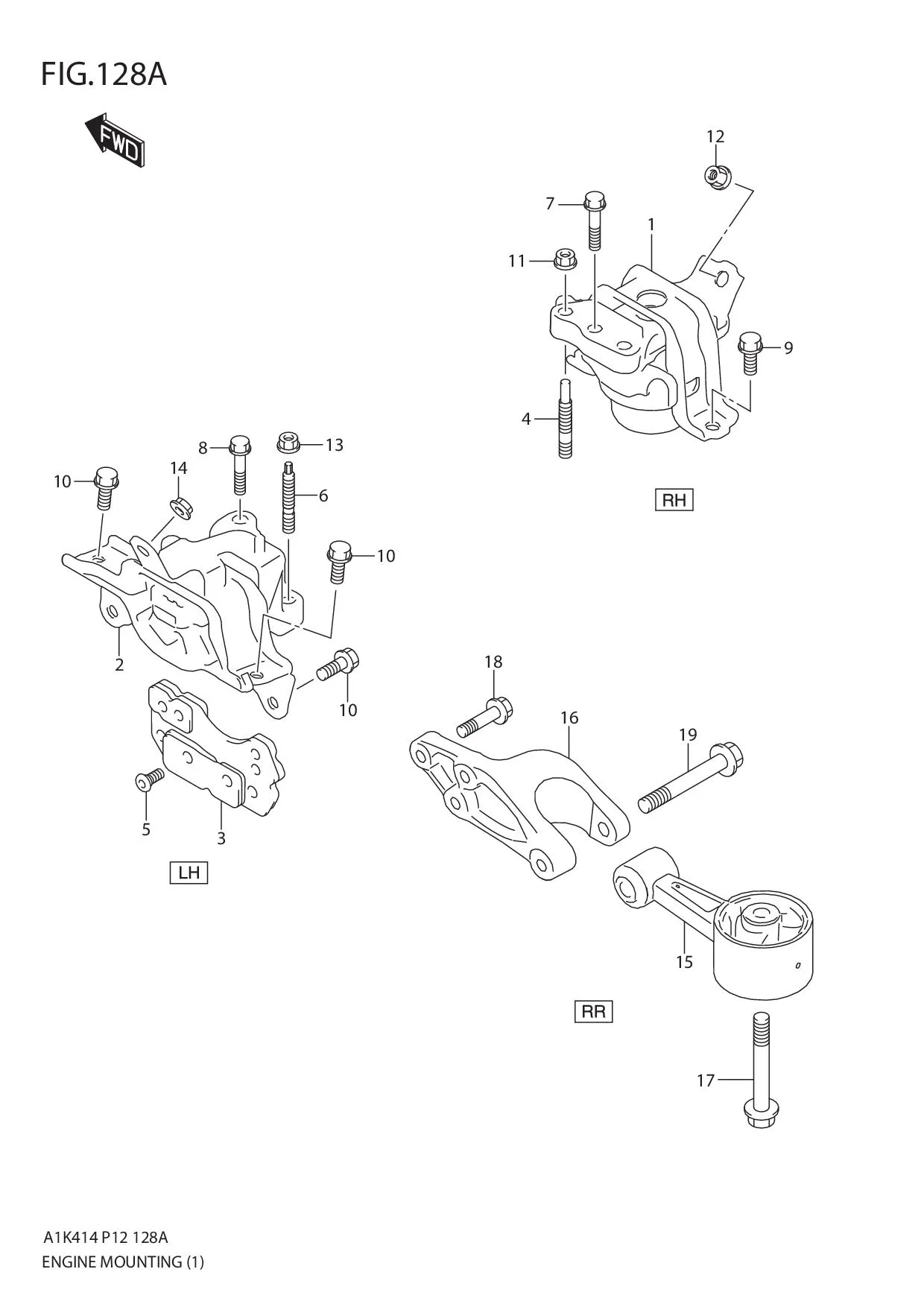

FIG.128A ENGINE MOUNTING (5MT)

FIG.128A ENGINE MOUNTING (5MT)
No No. Part Description Qty Price Per Pcs Remarks
1 11610M68P02-000
SUB: 11610M68P00-000		 MOUNTING, ENG RH 1 Rp1.074.000
2 11620M68P01-000
SUB: 11620M68P00-000		 MOUNTING, ENG LH 1 Rp811.000
3 11650M68P01-000 DAMPER, LH MTG 1 Rp64.000
4 11653-79J50-000 STUD BOLT, ENG LH MTG BRKT 2 Rp40.000
5 09106-08155-000 BOLT (8X20) 2 Rp23.000
6 09108M10164-000 STUD BOLT 2 Rp10.500
7 09103-10055-000 BOLT (10X40) 1 Rp12.500
8 01550-1040A-000
SUB: 01550B1040AN000		 BOLT 1 Rp7.000
9 01551-1025A-000 BOLT 2 Rp29.000
10 01551-1025A-000 BOLT 4 Rp29.000
11 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
12 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
13 08316-1010A-000
SUB: 08316B1010AN000		 NUT 2 Rp3.500
14 08316-1010A-000
SUB: 08316B1010AN000		 NUT 1 Rp3.500
15 11910M69P01-000
SUB: 11910M69P00-000		 ROD, ENG RR TRQ 1 Rp235.000
16 11941M68P00-000 BRACKET, ENG RR TRQ ROD 1 Rp307.000
17 09113M12004-000 BOLT (12X90) 1 Rp32.500
18 01550-1040A-000
SUB: 01550B1040AN000		 BOLT 3 Rp7.000
19 01550M1290A-000 BOLT 1 Rp22.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
