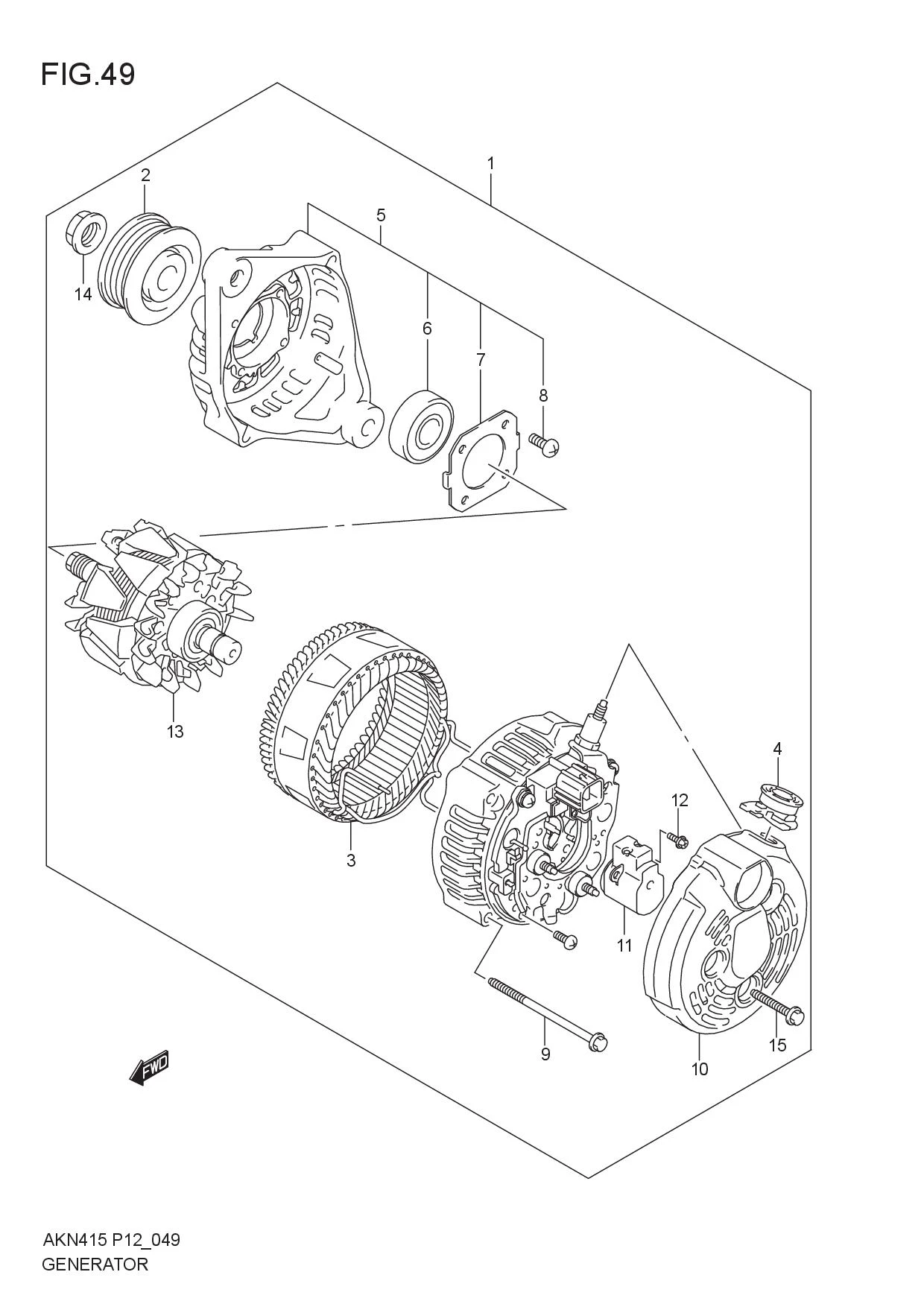

FIG.49 GENERATOR

FIG.49 GENERATOR
No No. Part Description Qty Price Per Pcs Remarks
1 31400M79M01-000
SUB: 31400M79M00-000		 GENERATOR ASSY 1 Rp5.508.000
2 31171M79M00-000 .PULLEY 1 Rp281.000
3 31401M79M00-000 .COIL ASSY, ALTERNATOR 1 Rp5.381.500
4 32514M79M00-000 .INSULATION BUSH, TERMINAL 1 Rp19.000
5 31580M79M00-000 .FRAME ASSY, DRIVE END 1 Rp1.302.000
6 31582M79M10-000 ..BEARING, BALL 1 Rp468.000
7 DISCONTINUE
SUB: 31585M79G00-000		 ..RETAINER, BEARING 1 -
8 DISCONTINUE
SUB: 31588M79G00-000		 ..SCREW 4 -
9 31778M71M00-000 .BOLT, THROUGH 4 Rp738.000
10 31614M79M00-000 .COVER, REAR 1 Rp195.000
11 31656M79M00-000 .HOLDER, BRUSH 1 Rp250.500
12 31586M86J10-000 .SCREW 3 Rp11.500
13 31710M79M10-000 .ROTOR 1 Rp2.005.000
14 DISCONTINUE
SUB: 31775M79G00-000		 .NUT 1 -
15 31692M79M10-000 .BOLT 3 Rp35.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
