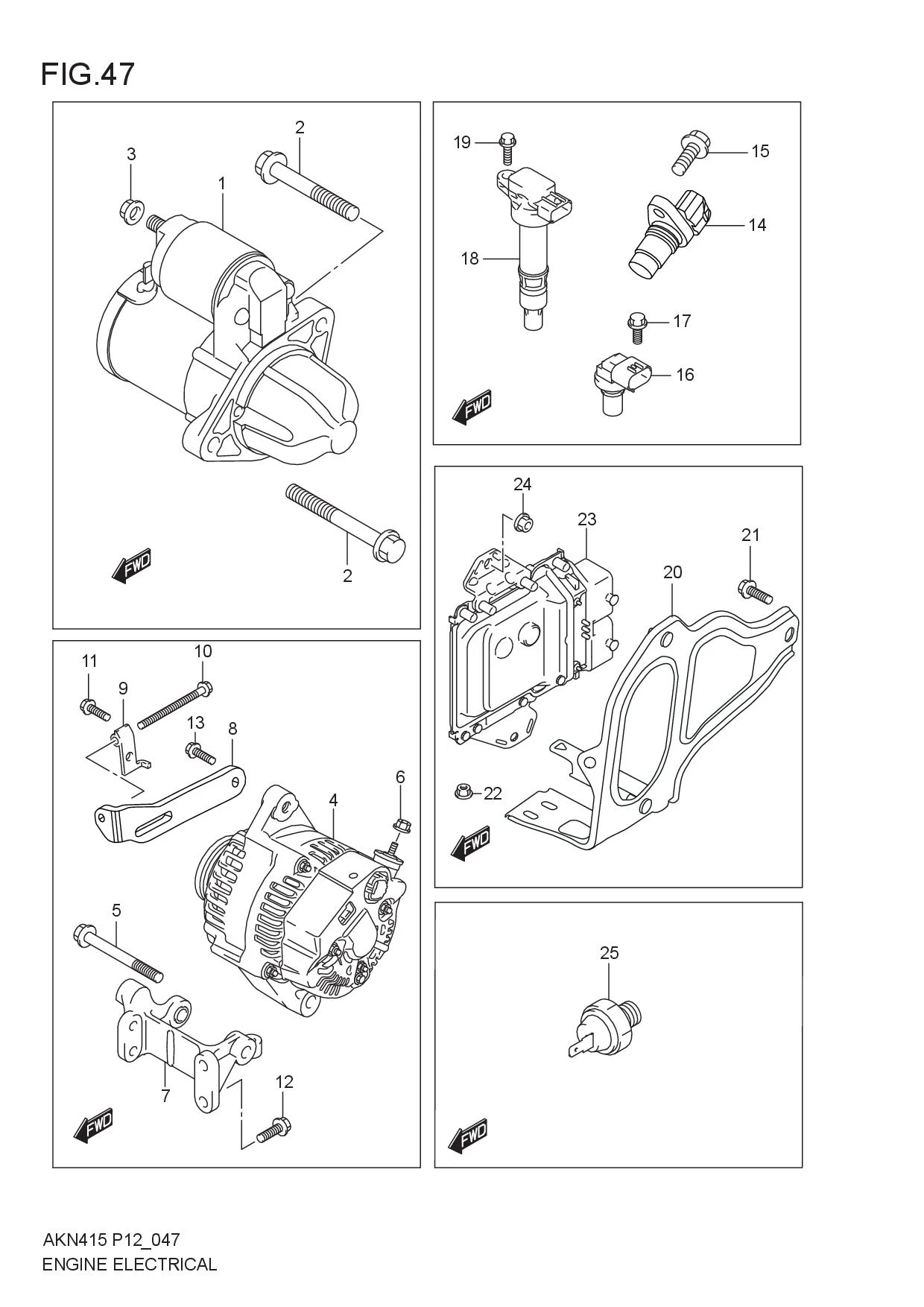

FIG.47 ENGINE ELECTRICAL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	31100M71P01-000 SUB: 31100M71P00-000	MOTOR ASSY, STARTING	1	Rp3.788.000
2	01550-1060A-000 SUB: 01550M1060A-000	BOLT,STARTING MOTOR	2	Rp5.500
3	08316-1008A-000 SUB: 08316B1008AN000	NUT,STARTING MOTOR TERMINAL	1	Rp3.500
4	31400M79M01-000 SUB: 31400M79M00-000	GENERATOR ASSY	1	Rp5.508.000
5	01550-1085A-000	BOLT,GENERATOR	1	Rp7.000
6	08316-1006A-000 SUB: 08316B1006AN000	NUT,GENERATOR TERMINAL	1	Rp2.000
7	11550M61M00-000	BRACKET COMP,GENERATOR	1	Rp304.500
8	11560M61M00-000	ARM,GENERATOR ADJUSTING	1	Rp49.500
9	DISCONTINUE SUB: 11562-64J00-000	ADJUSTER,GENERATOR	1	-
10	09103-08457-000	BOLT,GEN BELT ADJUSTING	1	Rp30.500
11	01550-0830A-000 SUB: 01550B0830AN000	BOLT,GEN ADJUSTER	1	Rp4.000
12	01550-0830A-000 SUB: 01550B0830AN000	BOLT,GEN BRACKET NO.2	4	Rp4.000
13	09103-08521-000	BOLT,GEN BRACKET	4	Rp26.000
14	33220M53M20-000	SENSOR ASSY, CMP	1	Rp532.000
15	01550-0616A-000 SUB: 01550B0616AN000	BOLT, CMP SENSOR	1	Rp3.500
16	33220M55K10-000	SENSOR ASSY, CKP	1	Rp653.500
17	09103M06317-000	SCREW, CKP SENSOR	1	Rp6.500
18-1	33400M68P00-000 SUB: 33400M68PA0-000	COIL ASSY,IGNITION	4	Rp597.500	VENDOR:LUCAS
18-2	33400M68P00-000	COIL ASSY,IGNITION	4	Rp597.500	VENDOR:DE DIAMOND
19	09135M06032-000 SUB: 09135M06029-000	BOLT,IGN COIL	4	Rp9.000
20	33924M61M00-000	BRACKET,EPI CONT	1	Rp73.500
21	09135-06027-000	BOLT,EPI BRACKET	1	Rp15.000
22	09159M06112-000	NUT,CONT BRACKET	2	Rp6.500
23-1	33920M65M10-000	CONTROLLER ASSY,EPI-A/C	1	Rp5.838.500	5MT
23-2	33920M65M20-000	CONTROLLER ASSY,EPI-A/C	1	Rp5.838.500	6AT
24	09159M06112-000	NUT,EPI CONT	2	Rp6.500
25	37820M68K00-000	SWITCH ASSY, OIL PRESSURE	1	Rp199.500
