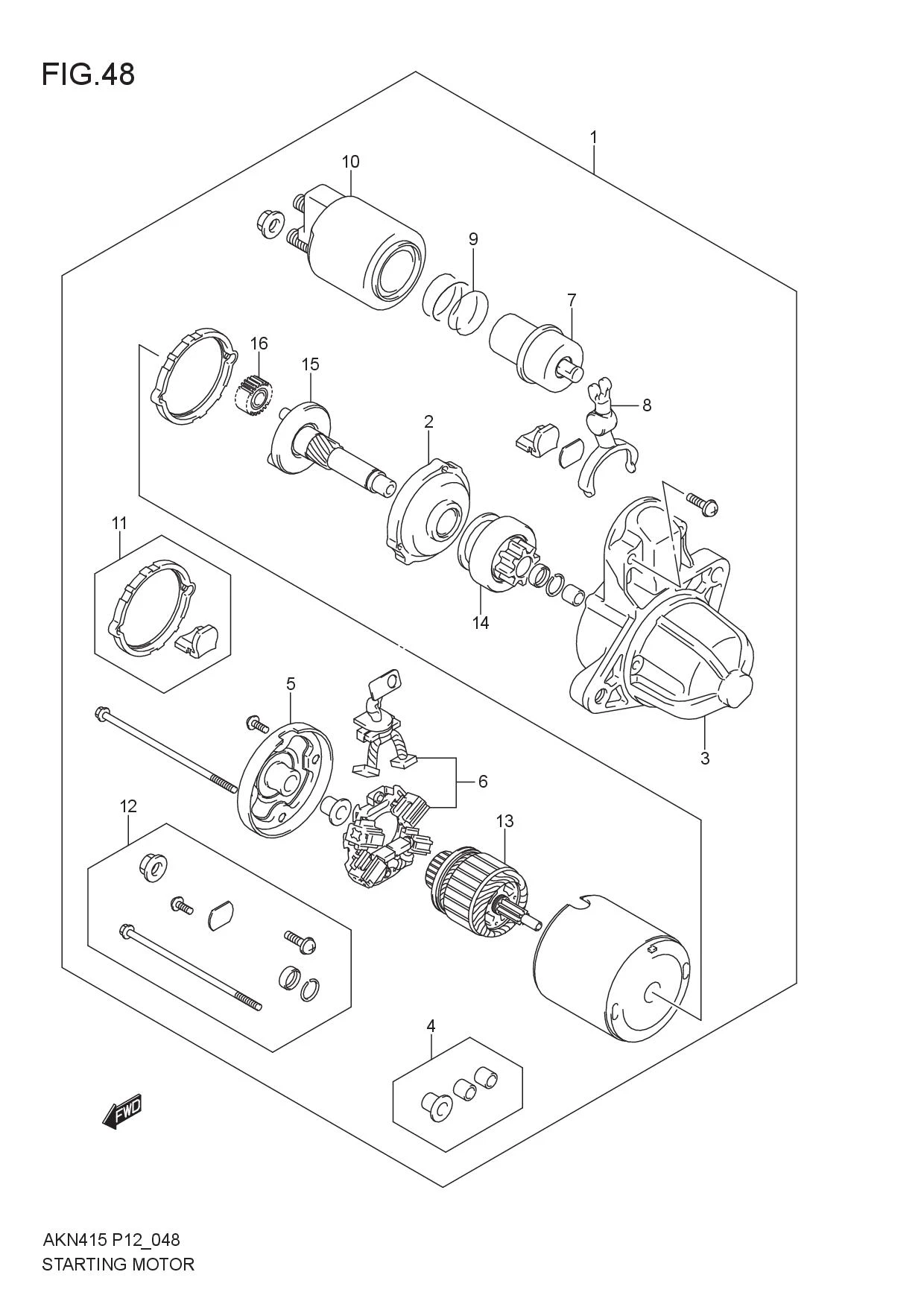

FIG.48 STARTING MOTOR

FIG.48 STARTING MOTOR
No No. Part Description Qty Price Per Pcs Remarks
1 31100M71P01-000
SUB: 31100M71P00-000		 MOTOR ASSY,STARTING 1 Rp3.788.000
2 31143M71P00-000 .ANNULUS ASSY 1 Rp245.500
3 31150M71P00-000 .FIXING BRKT ASSY 1 Rp722.000
4 31152M71P00-000 .BEARING 1 Rp132.500
5 31170M71P00-000 .BRACKET ASSY 1 Rp315.000
6 31173M71P00-000 .BRUSH GEAR ASSY 1 Rp672.500
7 31190M71P00-000 .PLUNGER ASSY 1 Rp213.000
8 31191M71P00-000 .ENGAGING LEVER 1 Rp78.500
9 31195M71P00-000 .PLUNGER RETURN SPRING 1 Rp29.000
10 31220M71P00-000 .SOLENOID ASSY 1 Rp1.608.500
11 31264M71P00-000 .SEALING 1 Rp62.000
12 31290M71P00-000 .FASTENERS 1 Rp115.500
13 31310M71P00-000 .ARMATURE 1 Rp1.786.000
14 31320M71P00-000 .DRIVE ASSY 1 Rp752.000
15 31341M71P00-000 .OUTPUT SHAFT ASSY 1 Rp628.000
16 31344M71P00-000 .PLANETARY GEAR ASSY 3 Rp334.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
