SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.47 ENGINE ELECTRICALFIG.48 STARTING MOTORFIG.49 GENERATORFIG.50 BATTERY (5MT)FIG.51 BATTERY (6AT)FIG.52 SPEEDOMETERFIG.53 HEADLAMPFIG.54 FRONT FOG LAMP (W/FRONT FOG LAMP)FIG.55 REAR LAMPFIG.56 ROOM LAMPFIG.57 WIRING HARNESSFIG.58 ELECTRICAL CONTROLFIG.59 LOCK SETFIG.60 FRONT WINDOW WIPERFIG.61 WINDOW WASHERFIG.62 REAR WINDOW WIPERFIG.63 AUDIO

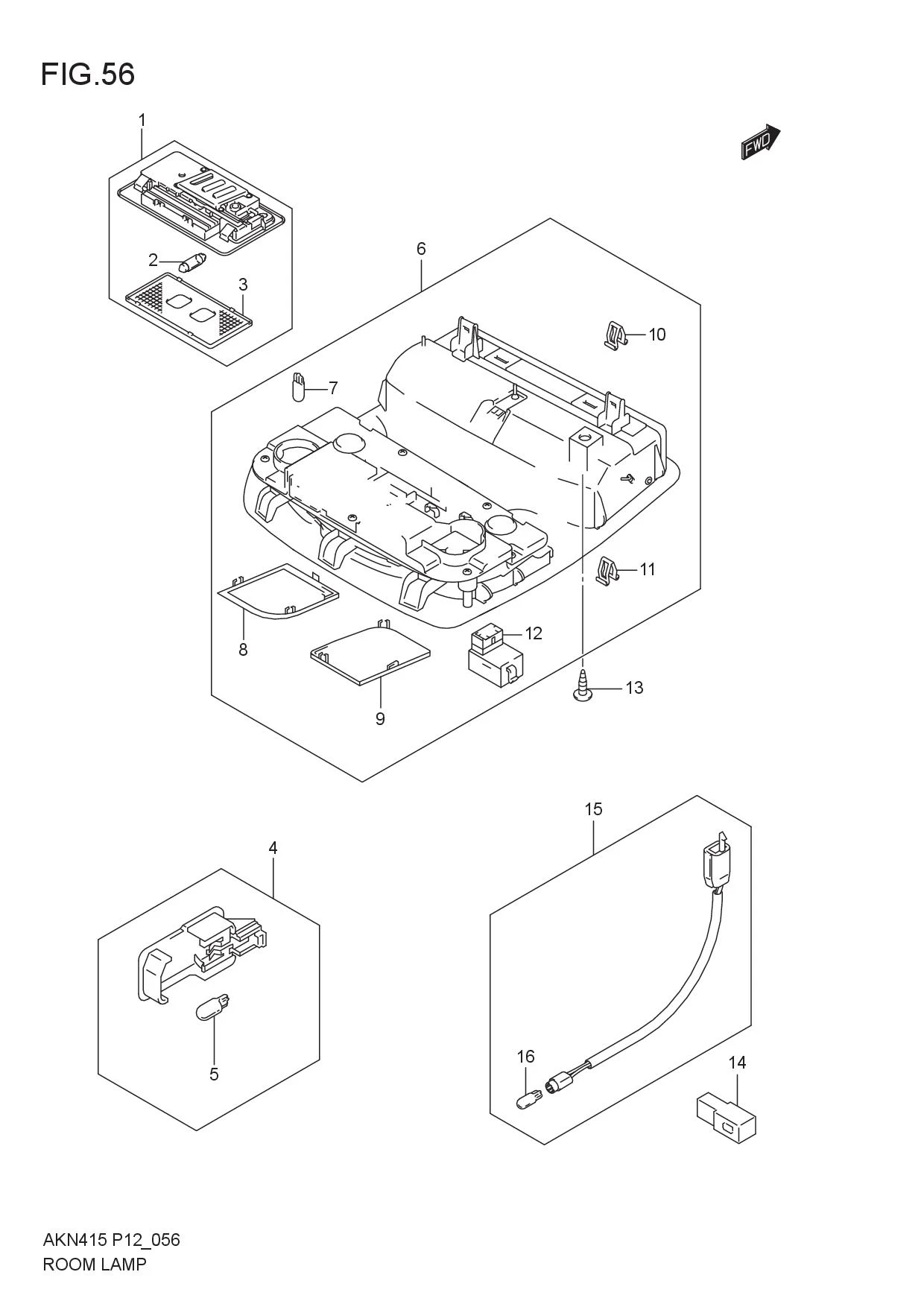

FIG.56 ROOM LAMP

FIG.56 ROOM LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 36210M55K00-6GS LAMP ASSY, ROOM (GRAY) 1 Rp117.500
2 09471M12181-000 .BULB(12V 10W) 1 Rp52.500
3 36214M55K00-000 .LENS 1 Rp23.500
4 36210M75JA0-000 LAMP ASSY, LUGGAGE ROOM 1 Rp62.500
5 09471-12216-000
SUB: 09471B12216N000		 .BULB(12V 5W) 1 Rp15.000
6 36230M64M21-6GS
SUB: 36230M64M20-6GS		 LAMP ASSY, SPOT (GRAY) 1 Rp3.195.000
7 09471-12113-000 .BULB ASSY 1 Rp21.500
8 36232M79M00-000 .LENS LH 1 Rp37.000
9 36231M79M00-000 .LENS RH 1 Rp37.000
10 09409-10308-000
SUB: 09409B10308N000		 .LOCK CLIP(SMALL) 1 Rp6.500
11 09410M10308-000 .LOCK CLIP(LARGE) 1 Rp24.000
12 39813-68L00-000 .MIC ASSY, HANDS FREE 1 Rp985.500
13 02162-0612A-000 SCREW 1 Rp11.000
14 36550M64M30-000 LAMP ASSY, FLOOR 2 Rp112.000
15 36550M65M00-000 LAMP ASSY, GLOVE BOX ILLUM 1 Rp100.000
16 09471-12055-000 .BULB (1.4W 12V) 1 Rp32.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
