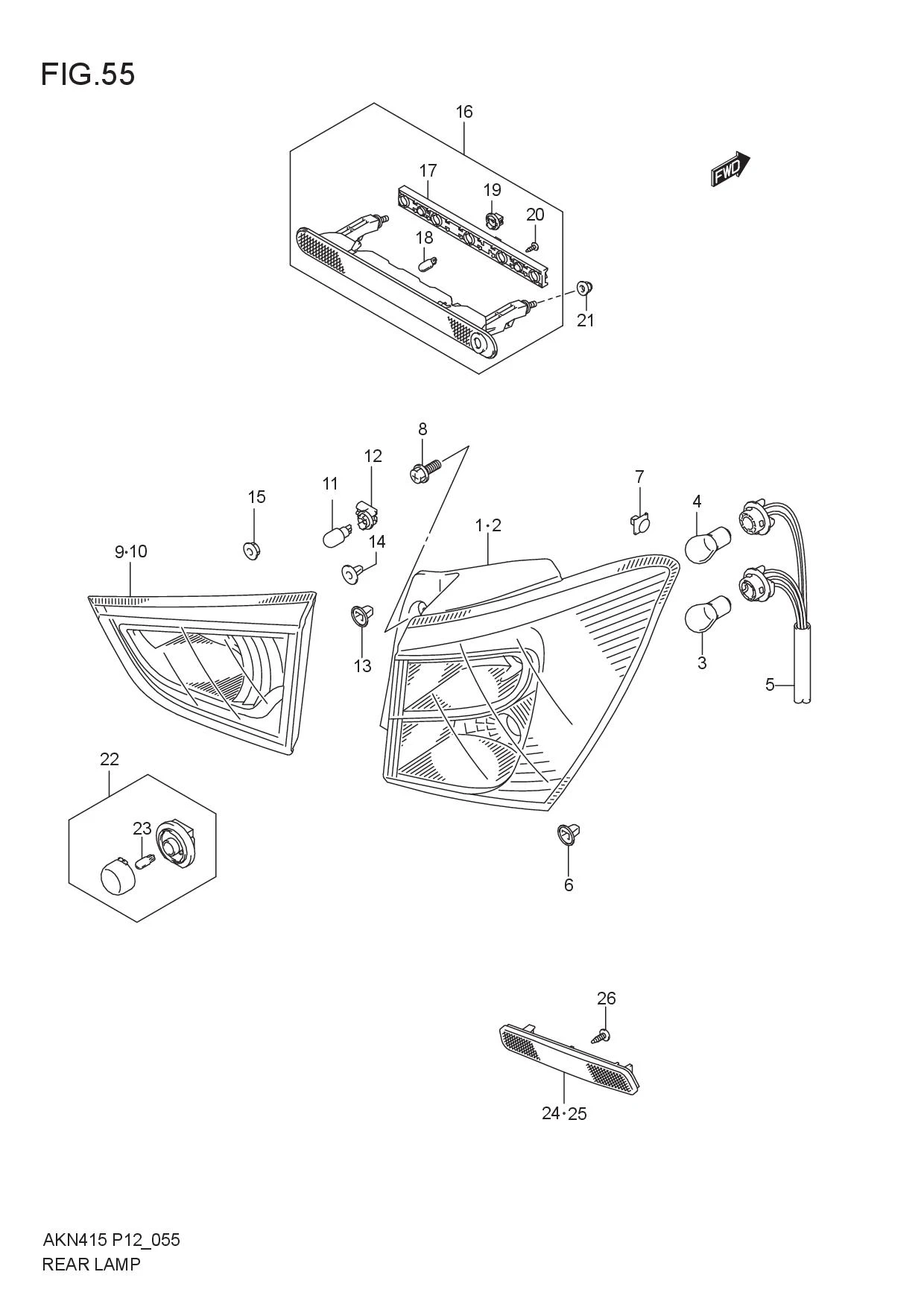

FIG.55 REAR LAMP

FIG.55 REAR LAMP
No No. Part Description Qty Price Per Pcs Remarks
1 35650M65M00-000 LAMP UNIT RR COMB, RH 1 Rp673.500
2 35750M65M00-000 LAMP UNIT RR COMB, LH 1 Rp673.500
3 09471-12046-000
SUB: 09471B12046N000		 BULB (12V-21/5W) 2 Rp21.500
4 09471-12245-000
SUB: 09471B12245N000		 BULB (12V-21W) 2 Rp30.500
5 35658M65M00-000 SOCKT & CORD ASSY 2 Rp48.500
6 35153M59K10-000 GROMMET, REAR COMB LAMP LOWER 2 Rp8.000
7 35153M75L00-000 GROMMET, REAR COMB LAMP UPPER 2 Rp7.000
8 01551-0616C-000 SCREW 4 Rp14.500
9 35651M65M00-000 UNIT LAMP BACK UP, RH 1 Rp773.000
10 35751M65M00-000 UNIT LAMP BACK UP, LH 1 Rp773.000
11 09471-12146-000
SUB: 09471B12146N000		 BULB 12V-16W 2 Rp39.500
12 35818M65M00-000 BULB HOLDER 2 Rp153.000
13 35153M59K10-000 GROMMET, REAR COMB LAMP LOWER 2 Rp8.000
14 35153M59K20-000 GROMMET, REAR COMB LAMP UPPER 2 Rp8.000
15 09159-06076-000 NUT 2 Rp19.500
16 35810-74L00-000
SUB: 35810B74L00N000		 LAMP ASSY, HIGH MT STOP 1 Rp237.500
17 35822-74L00-000
SUB: 35822B74L00N000		 .CONTACT PLATE 1 Rp50.000
18 09471-12216-000
SUB: 09471B12216N000		 .BULB(12V 5W) 5 Rp15.000
19 35817-74L00-000
SUB: 35817B74L00N000		 .BULB HOLDER 5 Rp17.500
20 35827-74L00-000
SUB: 35827B74L00N000		 .SCREW 2 Rp4.500
21 09159-06100-000 NUT 2 Rp19.000
22 35910M83K03-000
SUB: 35910M83K02-000		 LAMP ASSY, LICENSE 2 Rp49.000
23 09471-12216-000
SUB: 09471B12216N000		 .BULB(12V,5W) 2 Rp15.000
24 35950M55K01-000 REFLECTOR ASSY, REAR RH 1 Rp54.000
25 35970M55K01-000 REFLECTOR ASSY, REAR LH 1 Rp54.000
26 03241M0516A-000
SUB: 03141M0516A-000		 SCREW 2 Rp4.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
