SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body
< KEMBALI KE THUMBNAIL FIG.47 ENGINE ELECTRICALFIG.48 STARTING MOTORFIG.49 GENERATORFIG.50 BATTERY (5MT)FIG.51 BATTERY (6AT)FIG.52 SPEEDOMETERFIG.53 HEADLAMPFIG.54 FRONT FOG LAMP (W/FRONT FOG LAMP)FIG.55 REAR LAMPFIG.56 ROOM LAMPFIG.57 WIRING HARNESSFIG.58 ELECTRICAL CONTROLFIG.59 LOCK SETFIG.60 FRONT WINDOW WIPERFIG.61 WINDOW WASHERFIG.62 REAR WINDOW WIPERFIG.63 AUDIO

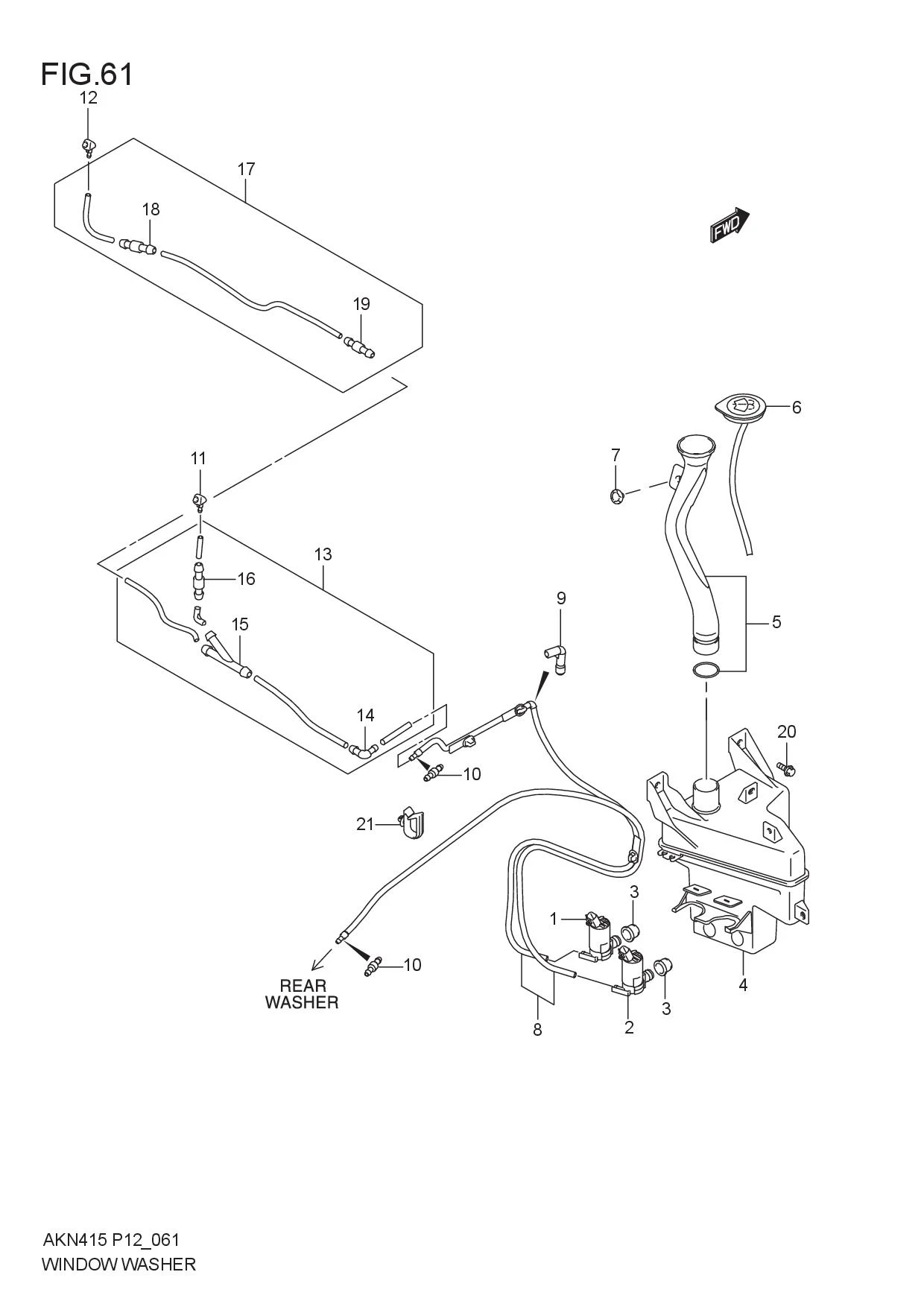

FIG.61 WINDOW WASHER

FIG.61 WINDOW WASHER
No No. Part Description Qty Price Per Pcs Remarks
1 38410M65M00-000 MOTOR ASSY, WASHER(FR) 1 Rp159.500
2 38410M65M10-000 MOTOR ASSY, WASHER(RR) 1 Rp163.000
3 38453M75000-000 GROMMET, WASHER TANK 2 Rp4.500
4 38450M65M10-000 TANK WASHER 1 Rp102.000
5 38453M65M00-000 PIPE INLET 1 Rp39.000
6 38452M65M00-000 CAP WITH LEVEL GAUGE 1 Rp7.000
7 09409M07L01-000 CLIP, WASHER TANK 1 Rp5.000
8 38459M65M10-000 HOSE SET 1 Rp23.500
9 38491M65M00-000 .L-JOINT 1 Rp6.000
10 38844M67P00-000 .I-JOINT 2 Rp6.500
11 38480M65M00-000 NOZZLE, WASHER 1 Rp31.000
12 38480M65M10-000 NOZZLE, WASHER 1 Rp31.000
13 38832M65M00-000 HOSE ASSY, FR WASHER 1 Rp48.500
14 38491M65M00-000 .L-JOINT 1 Rp6.000
15 38855M65M00-000 .Y-JOINT 1 Rp7.000
16 38833M67P00-000 .ONE WAY VALVE 1 Rp17.000
17 38832M65M10-000 HOSE ASSY, FR WASHER 1 Rp25.000
18 38844M65M00-000 .I-JOINT 1 Rp6.000
19 38833M67P00-000 .ONE WAY VALVE 1 Rp17.000
20 02162-0612A-000 SCREW, WASHER TANK 3 Rp11.000
21 38496M65M00-000 CLAMP, WASHER HOSE 1 Rp17.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
