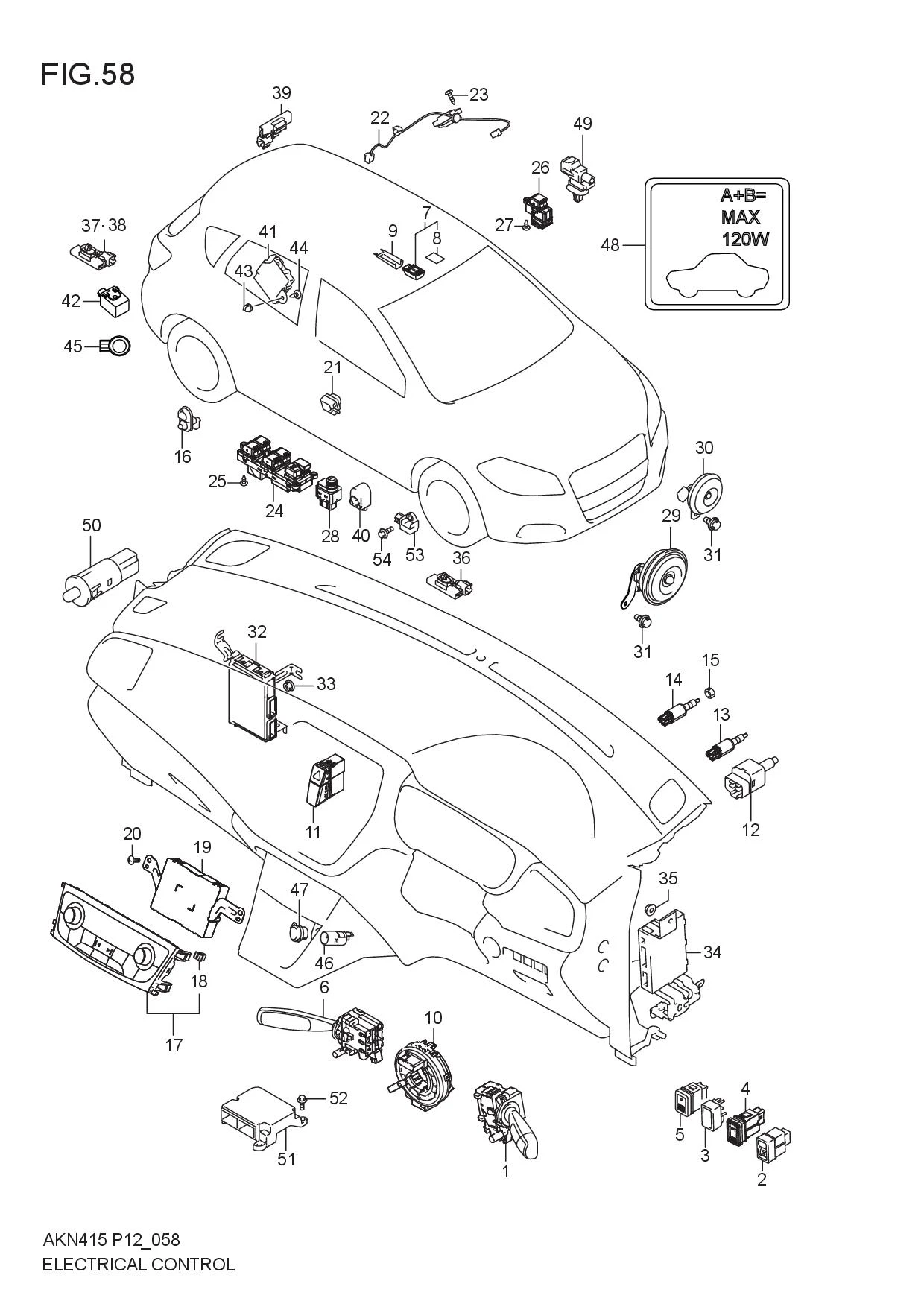

FIG.58 ELECTRICAL CONTROL

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	37210M74L40-000	SWITCH ASSY,LIGHTING & TURN	1	Rp408.000
2	35180M65L00-000	SWITCH ASSY, HEAD LAMP LEVELING	1	Rp217.500
3	37285-75J00-000 SUB: 37285B75J00N000	CAP, OPTION SW HOLE	0	Rp11.000
4	37270M79M00-000	SWITCH ASSY, FR FOG	1	Rp143.500
5	37285M79M00-000	SWITCH ASSY, PARK SNSR	1	Rp143.500
6	37310M74L50-000	SWITCH ASSY, WIPER & WASHER	1	Rp591.500
7	37320-57L01-000 SUB: 37320-57L00-000	SENSOR ASSY, RAIN & LIGHT	1	Rp2.140.000
8	37324-57L00-000	.SHEET	1	Rp231.500
9	37325M64M00-000	COVER, RAIN & LIGHT SENSOR	1	Rp58.500
10	37480M85S10-000 SUB: 37480M64M10-000	CABLE ASSY, CONTACT COIL	1	Rp998.000
11	37430M74L10-5PK	SWITCH ASSY, HAZARD & SECURITY	1	Rp127.500
12	37740M83K00-000	SET, STOP LAMP SW	1	Rp109.000
13	37970M74L02-000 SUB: 37970M74L01-000	SWITCH ASSY, CLUTCH	1	Rp165.500	5MT
14	37970-68J00-000	SWITCH ASSY, CLUTCH START	1	Rp512.500	5MT
15	09140-10043-000	NUT	1	Rp14.500	5MT
16	37670M60M10-000	SWITCH ASSY, DOOR	4	Rp35.000
17	39510M65M00-BKZ	PANEL UNIT, AUTO A/C (BLACK/CHROME)	1	Rp4.019.000
18	09409-08349-000 SUB: 09409B08342N000	.CLIP, AUTO A/C PANEL	4	Rp4.500
19	39530M64M00-000	CONTROLLER UNIT, AUTO A/C	1	Rp1.396.000
20	03541-0516A-000 SUB: 03541B0516AN000	SCREW, AUTO A/C CONT	2	Rp3.500
21	37177M79MA0-000 SUB: 37177M79M01-000	SWITCH ASSY, SIDE DOOR KLS	2	Rp184.000
22	37179M64M01-000	SWITCH ASSY, BACK DOOR & KLS	1	Rp359.000
23	03541-0416A-000 SUB: 03541B0416AN000	SCREW, BACK DOOR OPEN SWITCH	2	Rp3.500
24	37990M64M01-000 SUB: 37990M64M00-000	SWITCH ASSY, POWER WINDOW MA	1	Rp1.052.500
25	03541-0410A-000	SCREW, P/W SWITCH	3	Rp11.000
26	37995M79M02-000 SUB: 37995M79M00-000	SWITCH ASSY, POWER WINDOW SUB	3	Rp109.500
27	03541-0410A-000	SCREW, P/W SWITCH	3	Rp11.000
28	37950M79M11-000	SWITCH ASSY, MIRROR	1	Rp205.500
29	38500M65M00-000	HORN ASSY, HIGH PITCHED	1	Rp226.500
30	38500M65M10-000	HORN ASSY, LOW PITCHED	1	Rp226.500
31	09115-08001-000	BOLT	2	Rp21.500
32	36770M64MB0-000	CONTROLLER ASSY, BODY ELEC	1	Rp5.060.500
33	09159M06112-000	NUT	3	Rp6.500
34	37171M64M11-000 SUB: 37171M64M10-000	CONTROLLER ASSY, KEYLESS	1	Rp4.403.000
35	09159-08127-000 SUB: 09159M08153-000	NUT	2	Rp11.000
36	37174M79M00-000	ANTENNA ASSY, KLS DOOR	2	Rp282.500
37	37175M79M00-000	ANTENNA ASSY, KLS INSIDE	1	Rp227.500
38	37175M64M00-000	ANTENNA ASSY, KLS LUGGAGE	1	Rp288.000
39	37175M79M10-000	ANTENNA ASSY, KLS BACK DOOR	1	Rp277.000
40	38590-72M00-000	BUZZER ASSY, KLS	1	Rp441.500
41	37730M64M01-000	CONTROLLER ASSY, PARK SNSR	1	Rp1.222.000
42	37734M79M00-000	BUZZER, PARK SNSR	1	Rp241.500
43	71851M70F00-000	NUT	2	Rp4.000
44	03141M0612A-000	SCREW, PARK SNSR CONT	2	Rp4.500
45-1	37735M79M01-ZHJ SUB: 37735M68P00-ZHJ	SENSOR ASSY, PARK (WHITE)	4	Rp641.500
45-2	37735M79M00-ZQS SUB: 37735M68P00-ZQS	SENSOR ASSY, PARK (SILVER)	4	Rp517.000
45-3	37735M79M01-ZQT SUB: 37735M68P00-ZQT	SENSOR ASSY, PARK (BLUE)	4	Rp517.000
45-4	37735M79M01-ZTN SUB: 37735M68P00-ZTN	SENSOR ASSY, PARK (GREY)	4	Rp517.000
46	39420M83P00-000	BODY, SOCKET	2	Rp102.000
47	39441M75J01-5PK	COVER,SOCKET (BLACK)	2	Rp19.500
48	39442-64M00-000	LABEL, ACC SOCKET	1	Rp5.500
49	95643M67P00-000	SENSOR, OUTSIDE AIR TEMP	1	Rp189.000
50	37690M64M00-000	SWITCH ASSY, GLOVE BOX	1	Rp61.500
51	38910M64M10-000	CONTROLLER ASSY, A/B	1	Rp1.880.000
52	09115-06004-000	BOLT	3	Rp19.500
53	38930M61M00-000	SENSOR ASSY, FORWARD	1	Rp347.500
54	02162-0620A-000	BOLT	1	Rp5.500
