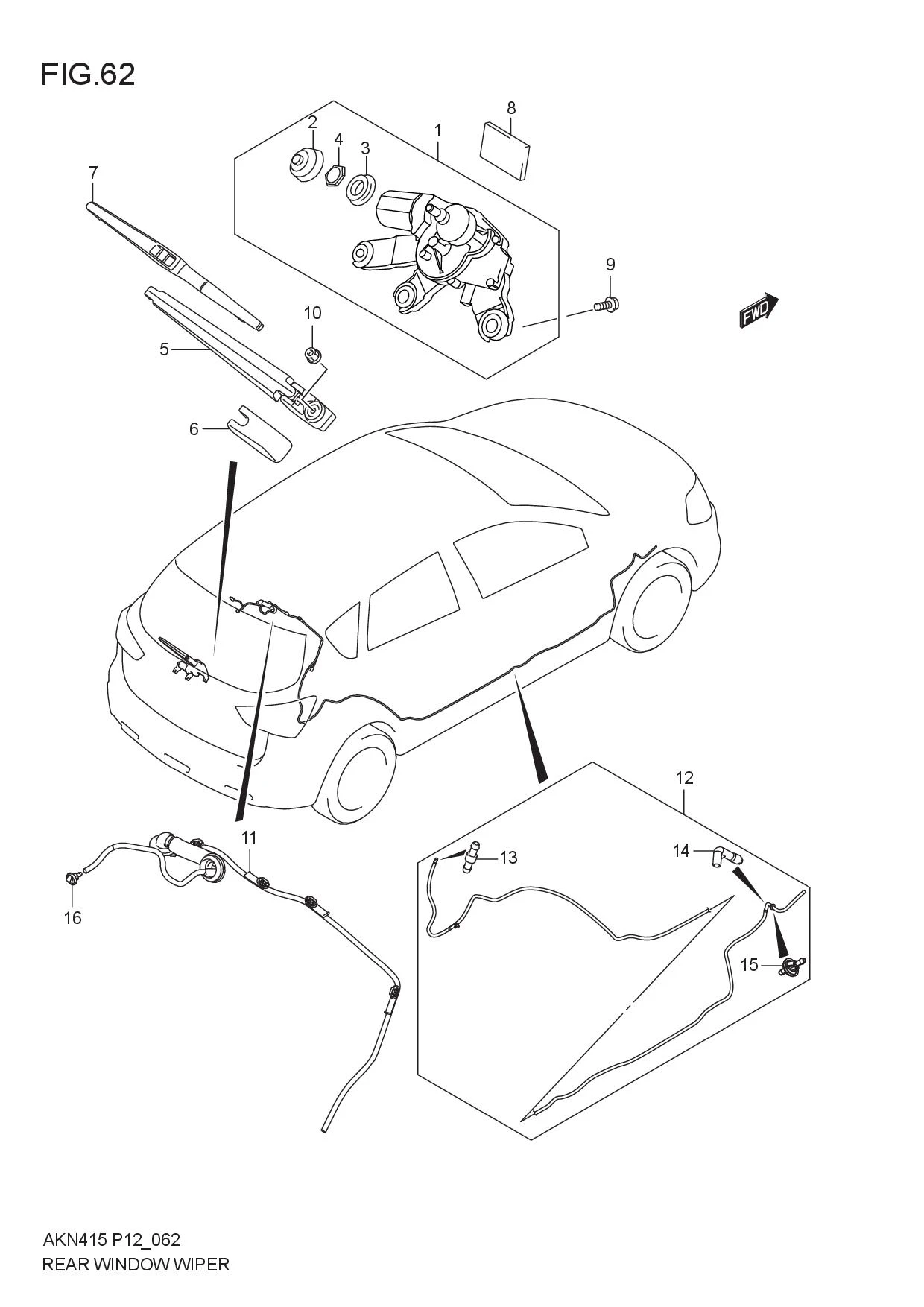

FIG.62 REAR WINDOW WIPER

FIG.62 REAR WINDOW WIPER
No No. Part Description Qty Price Per Pcs Remarks
1 38810M65M00-000 WIPER ASSY, REAR WINDSHIELD 1 Rp1.986.500
2 38274M65M00-000 .CAP, RR WIPER PIVOT 1 Rp66.500
3 38273M65M00-000 .SEAL, RR WIPER NO.1 1 Rp66.000
4 38278M65M00-000 .NUT, RR WIPER 1 Rp31.000
5 38821M65M00-000 ARM ASSY, WIPER RR 1 Rp319.000
6 38315M65M00-000 HEAD COVR 1 Rp24.500
7 38340M65M20-000 BLADE ASSY, RR WIPER 1 Rp277.000
8 38822M65M00-000 PAD, RR WIPER 1 Rp23.500
9 09116-06186-000
SUB: 09116-06199-000		 BOLT 3 Rp23.500
10 08310-0008A-000
SUB: 08310M0008A-000		 NUT 1 Rp12.500
11 38834M65MA0-000 HOSE ASSY, RR WASHER BACK DOOR 1 Rp143.000
12 38835M65M00-000 HOSE ASSY, RR WASHER FLOOR 1 Rp75.500
13 38844M67P00-000 .I-JOINT 1 Rp6.500
14 38491M65M00-000 .L-JOINT 1 Rp6.000
15 38496M65M10-000 .JOINT, WASHER HOSE 1 Rp8.500
16 38840M76M00-000 NOZZLE ASSY, REAR WASHER 1 Rp29.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
