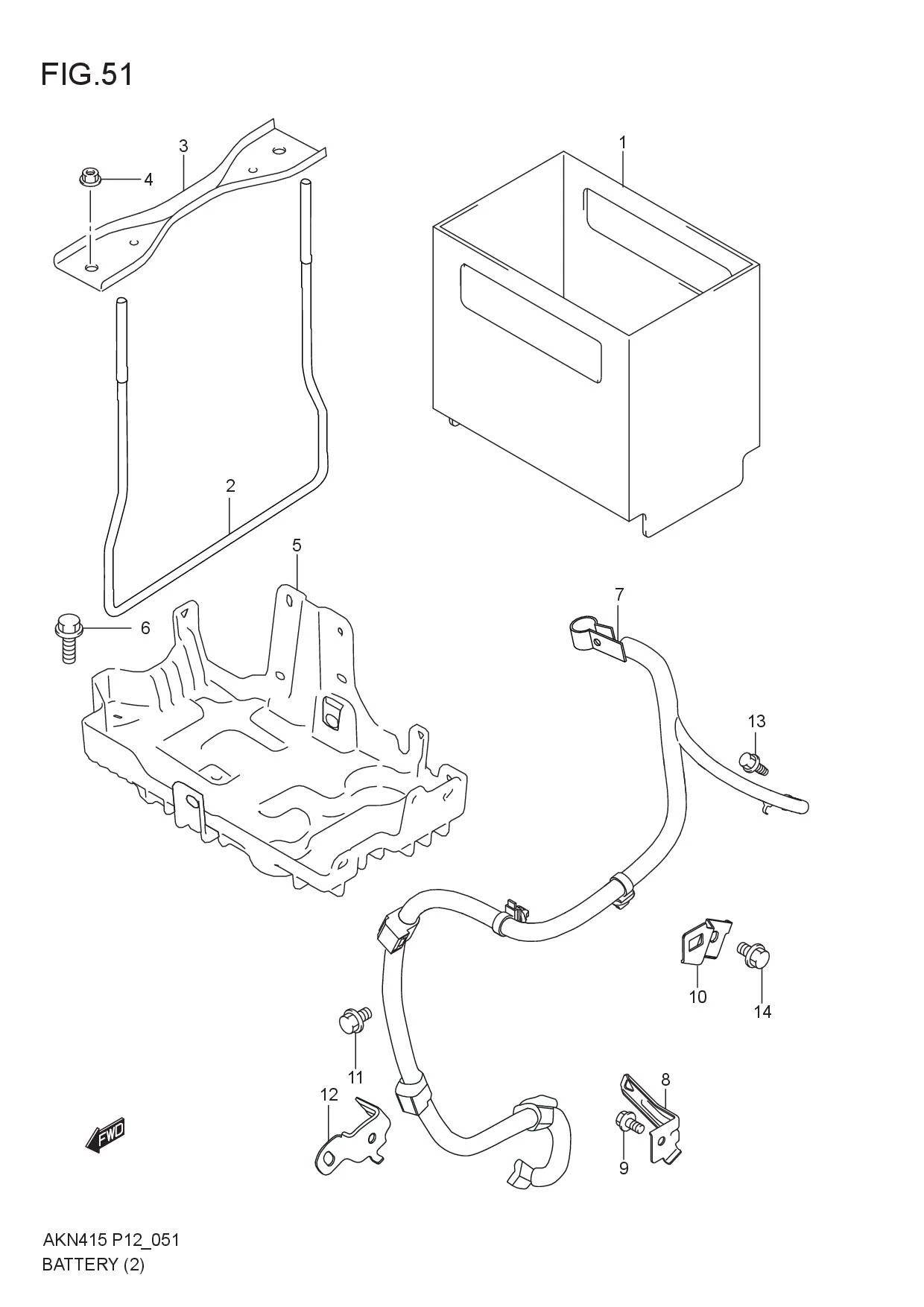

FIG.51 BATTERY (6AT)

FIG.51 BATTERY (6AT)
No No. Part Description Qty Price Per Pcs Remarks
1 33690M60M00-000 COVER, BATTERY 1 Rp43.500
2 72512M66M00-000 BOLT, BATTERY 2 Rp58.500
3 72511M55KA0-000 BAND, BATTERY 1 Rp16.000
4 08361-1506A-000 NUT,BATTERY 2 Rp13.000
5 72521M66M00-000 TRAY, BATTERY 1 Rp329.500
6 02162-0625A-000 BOLT, BATTERY TRAY 2 Rp3.500
7 33850M65M30-000 CABLE SET, BTRY GND 1 Rp326.500
8 36653M61M00-000 BRACKET,BTRY CABLE BODY 1 Rp8.000
9 02162-0612A-000 BOLT,BTRY CABLE BRKT 2 Rp11.000
10 33801M54P00-000 BRACKET,BTRY GND 1 Rp10.500
11 01550-0812A-000
SUB: 01550B0812AN000		 BOLT, BTRY GND T/M 1 Rp3.500
12 36653M54P00-000 BRACKET,BTRY GND 1 Rp10.000
13 09115-06005-000 BOLT, BTRY GND BODY 1 Rp14.000
14 01550-0812A-000
SUB: 01550B0812AN000		 BOLT,BTRY CABLE BRKT 1 Rp3.500

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
