SX4 S-CROSS

Preview Engine Transmission Electrical Suspension Body

< KEMBALI KE THUMBNAIL FIG.47 ENGINE ELECTRICAL FIG.48 STARTING MOTOR FIG.49 GENERATOR FIG.50 BATTERY (5MT)FIG.51 BATTERY (6AT)FIG.52 SPEEDOMETER FIG.53 HEADLAMP FIG.54 FRONT FOG LAMP (W/FRONT FOG LAMP)FIG.55 REAR LAMP FIG.56 ROOM LAMP FIG.57 WIRING HARNESS FIG.58 ELECTRICAL CONTROL FIG.59 LOCK SET FIG.60 FRONT WINDOW WIPER FIG.61 WINDOW WASHER FIG.62 REAR WINDOW WIPER FIG.63 AUDIO

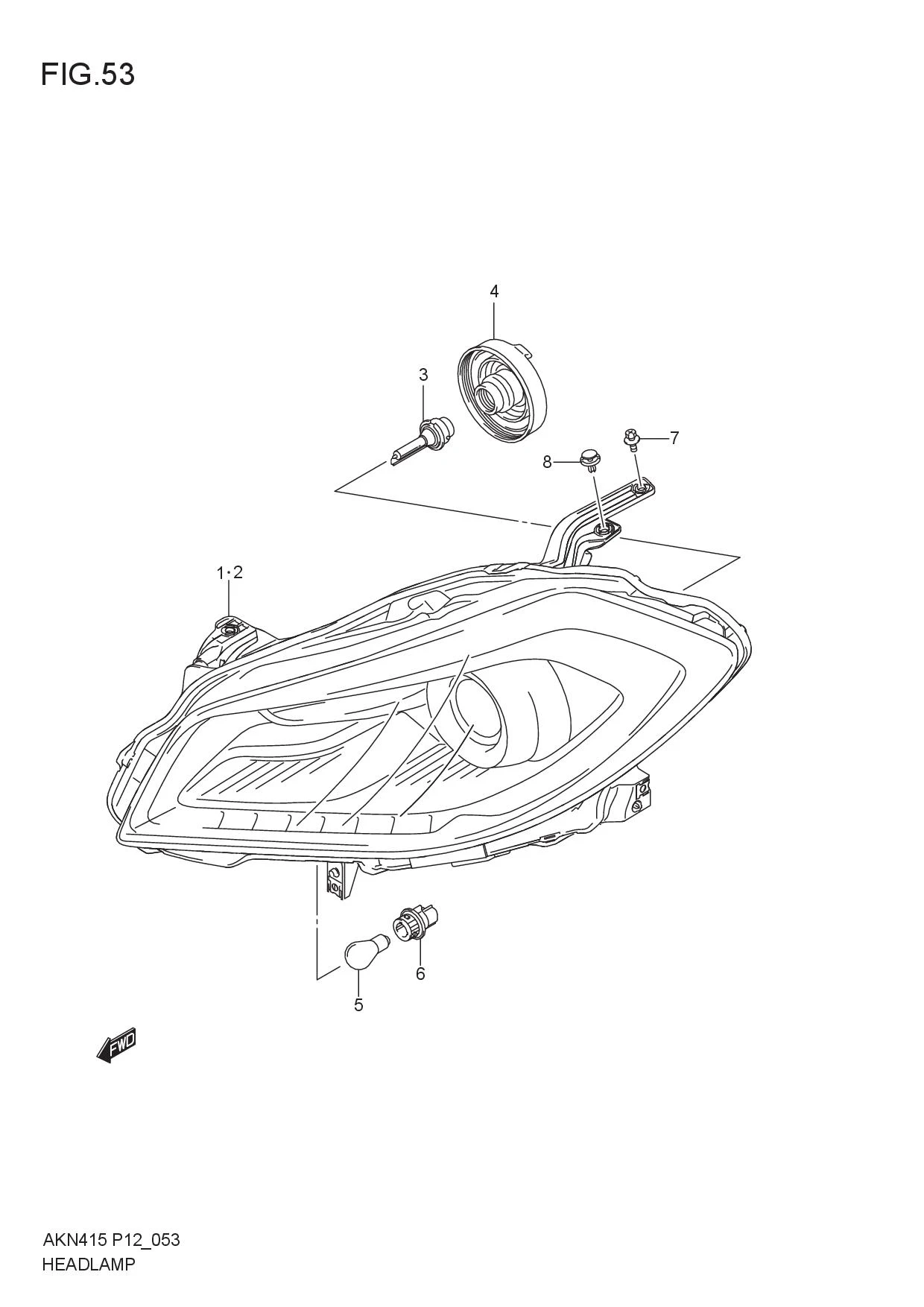

FIG.53 HEADLAMP

FIG.53 HEADLAMP

No	No. Part	Description	Qty	Price Per Pcs	Remarks
1	35121M65MA0-000	UNIT HEADLAMP, RH	1	Rp5.939.000
2	35321M65MA0-000	UNIT HEADLAMP, LH	1	Rp5.939.000
3	09471M12237-000	HID BULB (12V,25W,D5S)	2	Rp3.389.500
4	35267M65MA0-000	DUST, COVER	2	Rp45.500
5	09471-12245-000 SUB: 09471B12245N000	BULB (12V-PY21W AMBER)	2	Rp30.500
6	36110M74L00-000	SOCKET, TURN LAMP	2	Rp35.000
7	35181-71L00-000	SCREW, HEADLAMP	8	Rp22.500
8	09409M08006-000 SUB: 09409M08L01-000	CLIP	2	Rp5.000

*Harga dapat berubah sewaktu-waktu tanpa pemberitahuan terlebih dahulu.
